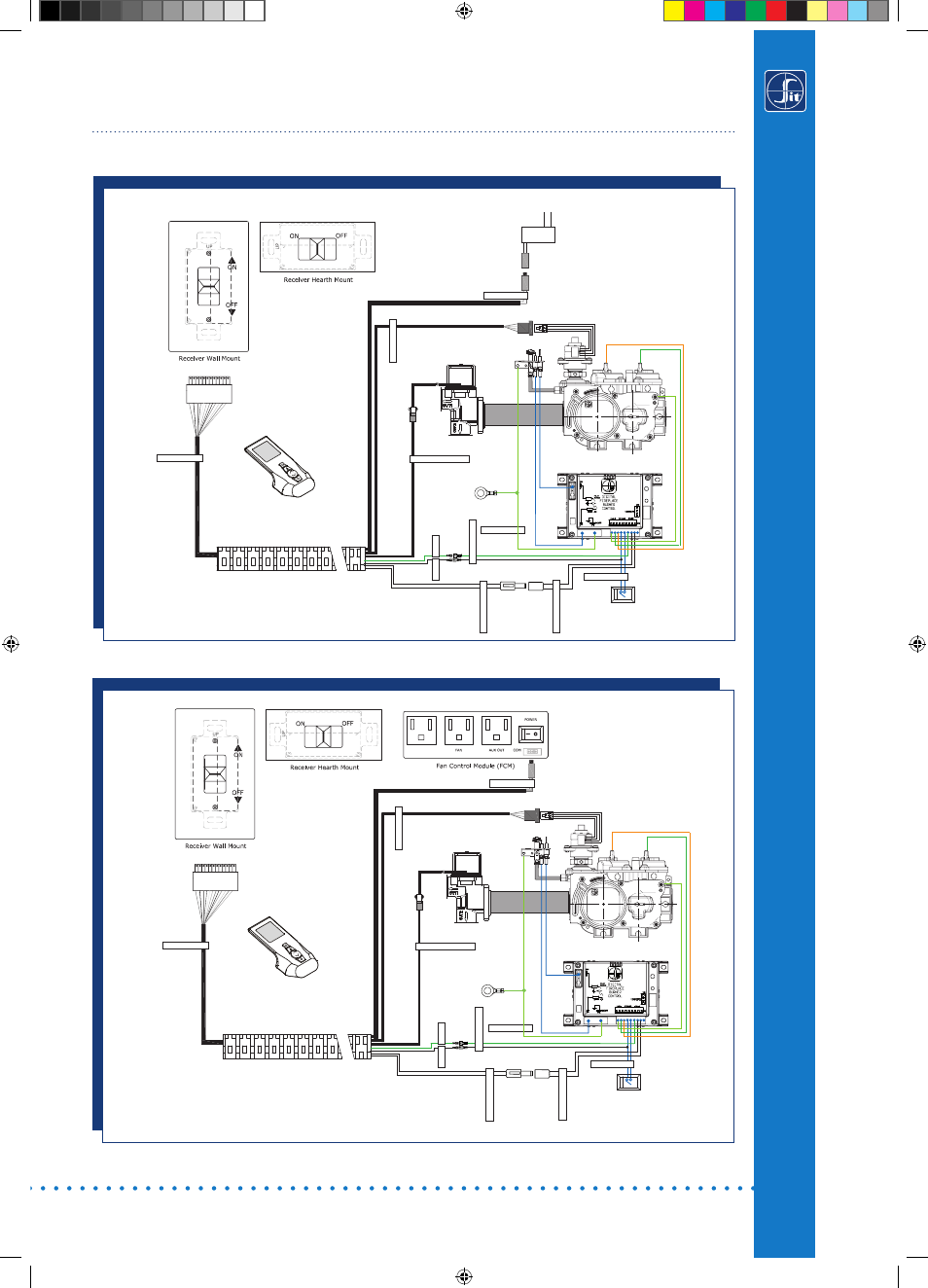

Fig. 6B: Proflame gTM & gTMS & 885 PROFLAME wiring diagram.
Connecting to the 885 gas valve and DFC control board (PROFLAME gTM & gTMS & gTMF & gTMFS only)
The electrical connections must be in accordance to Fig. 6B ( GTM & GTMS) or 6C (GTMF & GTMFS).
REMOTE
REMOTE
Receiver 14
Pin Connector
Split Flow
Pilot
Pink
Blue
CPI / IPI MODE
120 Vac INPUT
7 Vdc STABILIZED
SUPPLY OUTPUT
MOTOR
IPI/CPI
RECEIVER
DC SUPPLY
SPLIT FLOW
ON / OFF TH
TPTH
DFC SUPPLY DC SUPPLY
GROUND
885 PROFLAME
Orange
Green
Chassis
connection
Remote control
Fig. 6C: Proflame gTMF & gTMFS & 885 PROFLAME wiring diagram.
gTMS only
REMOTE
REMOTE
120V OUT
Receiver 14
Pin Connector
Split Flow
Pilot
Pink
Blue
CPI / IPI MODE
MOTOR
IPI/CPI
RECEIVER
FCM-COM
SPLIT FLOW
ON / OFF TH
TPTH
DFC SUPPLY DFC SUPPLY
GROUND
Orange Green
Chassis
connection
885 PROFLAME
Remote control
gTMFS only
