10/92 Page # 5 of 6
M36SR
Magnet Bracket
Pivot
Adjustment Screw
Door
Adjustment
Door Mount
Power Pile
To Main Burner
Hex Orifice
3/8 Nipple
Millivolt Valve
Pilot Burner
Top Grill Trim
Screen
Screen Rail
Bifold Glass Doors
Pilot Burner
Pilot Tubing
Power Pile Main Gas Burner
Logs (4)
Bottom Grille Trim
3/8 Hex Orifice
Millivolt Valve
Silica Sand
Embers
Pilot Tubing
MONTIGO 36SR PARTS LIST
Screen
Screen Rail
Decorative Trim
Twin Pane Doors
Bi-Fold Doors
Main Burner
INSTALLATION OF GLASS DOORS
There are two door kits available for the Montigo 36SR. Bifold
glass doors (Model # M28BD) or twin pane Glass doors
(Model # M28 TWP)
The doors are held to the frame by an adjustable spring bracket at the
top corners of the opening and a pivot point at the bottom of the glass
doors, see Figure 7 and Figure 8.

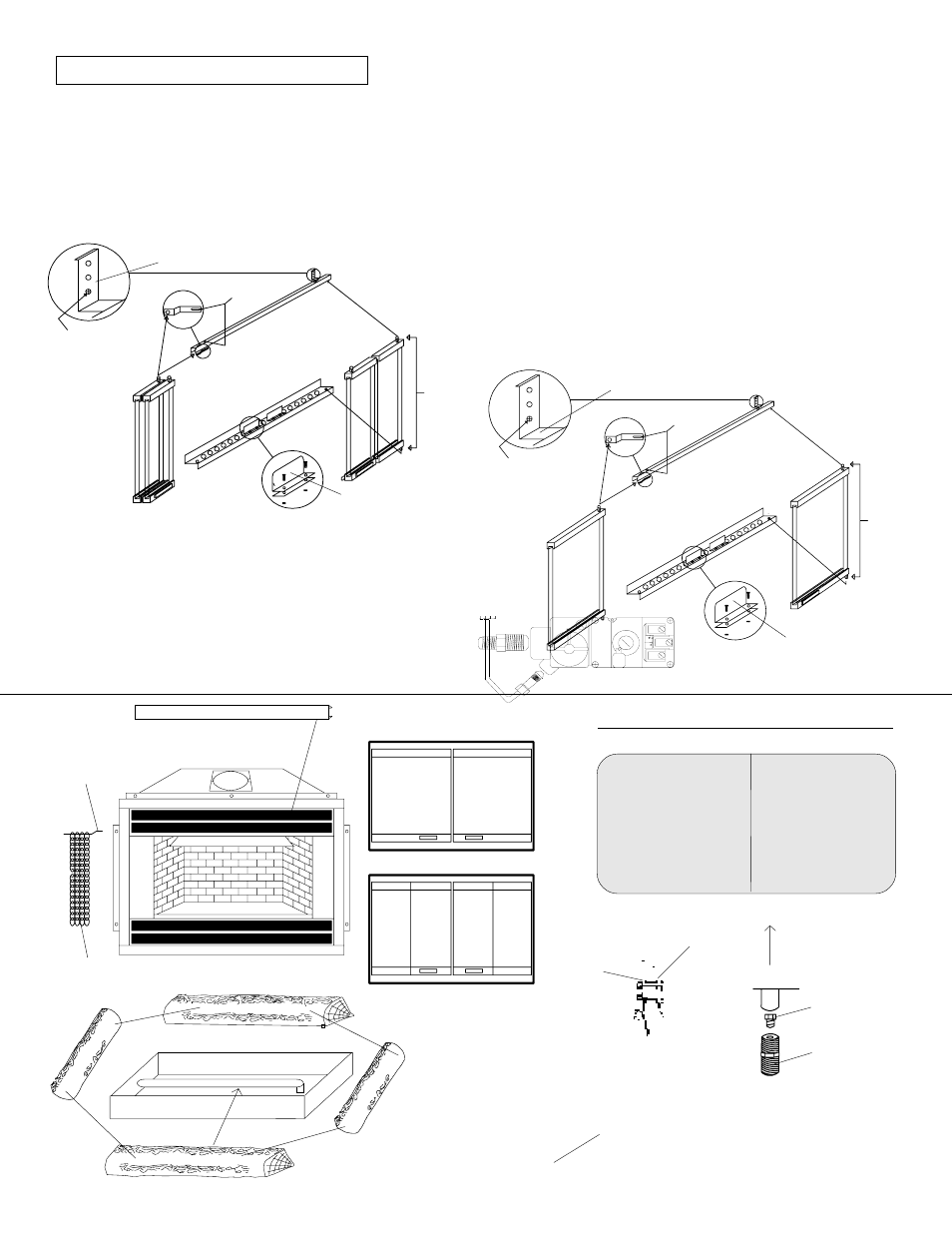

FIGURE 7. BIFOLD DOOR MOUNTING
To install the door kit in the Montigo 36SR:
a) To install left door place bottom pivot into bottom door
hole. Push top spring clip upwards using a screwdriver and snap
top pivot into top spring clip hole. Repeat above procedure to
install right door.
b) Doors may be adjusted by simply loosening spring clip screw
and adjusting door into square.
c) Doors may be adjusted front to back by simply turning screw,
located on top door mount (see Figure 8 blow-up)until door is
adjusted into desired position.
d) You may also adjust bottom middle of door by loosening bolts
and adjusting Magnet Bracket forward or backwards into
desired position. See Figure 8.
e) Remove the protective sheet from the door trim by peeling.
WARNING: Make sure this is done before fireplace is
ignited as heat will melt plastic to brass and become
non-removeable.
Magnet Bracket
Adjustment Screw
Door
Adjustment
Door Mount
Pivot
FIGURE 8. TWIN PANE DOOR MOUNTING
Logs (4)
