INSTALLATION (cont.)
Window Slider Kit Installation
The window slider kit is designed to fit most standard "vertical" and "horizontal" widow
applications.However,
It may be necessary for you to improve/modify some aspects
of the installation procedures for certain types of windows. Please refer to Fig.5 &
Fig. 6
for minimum and maximum window openings.
Window slider kit
Minimum: 26-5/8" (675mm)
Maximum: 48-3/8" (1230 mm)
Window slider kit
Minimum: 26-5/8" (675mm)
Maximum: 48-3/8" (1230 mm)
Fig. 6
Vertical window
Fig. 5
Horizontal window

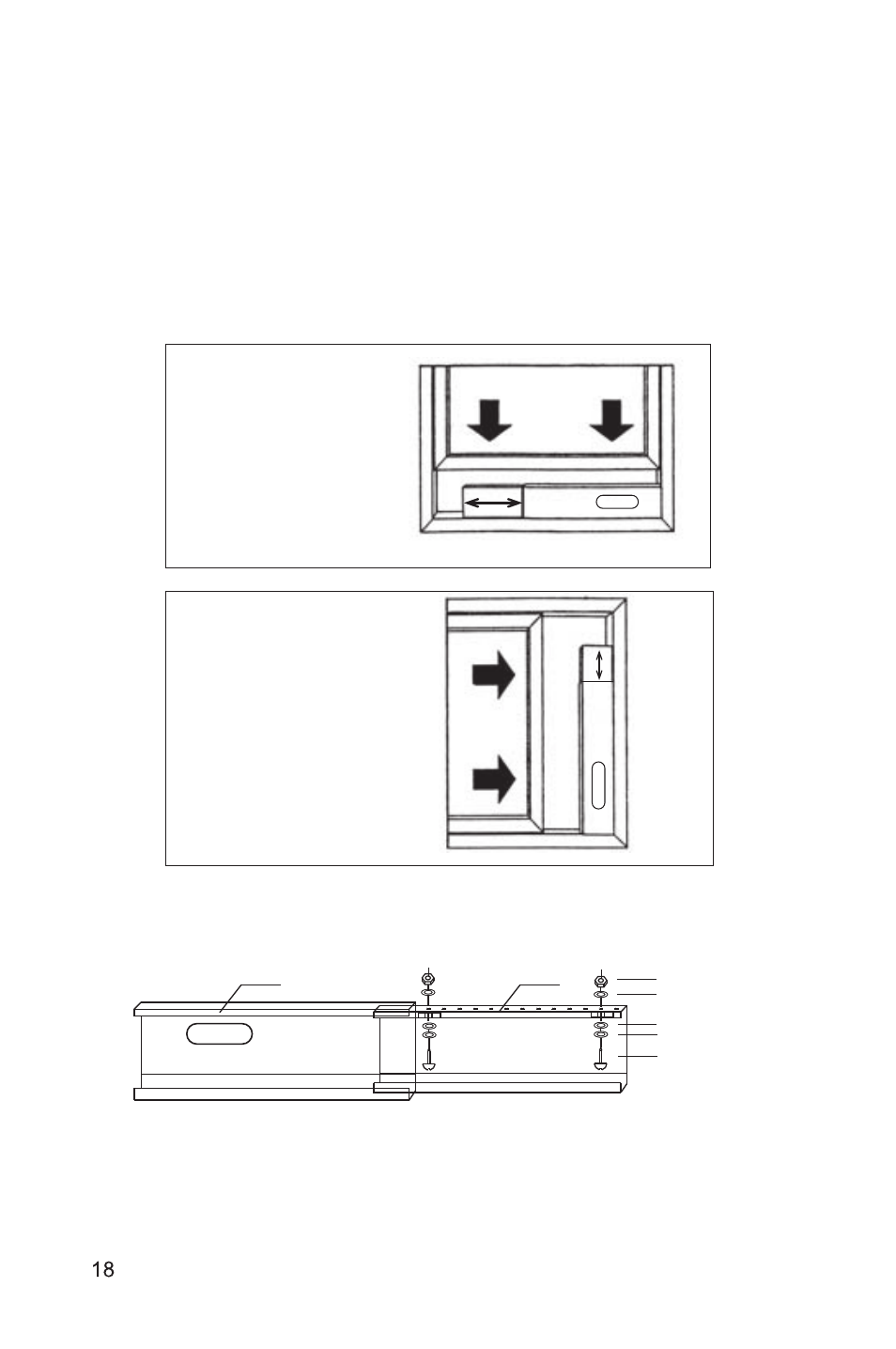

Install the Board I and II with the supplied screws,nuts and washers.
Board I
Board II
Nut
Washer
Washer
Spring Washer
Screw
