DA-AA
Rev. 6
nevion.com | 8

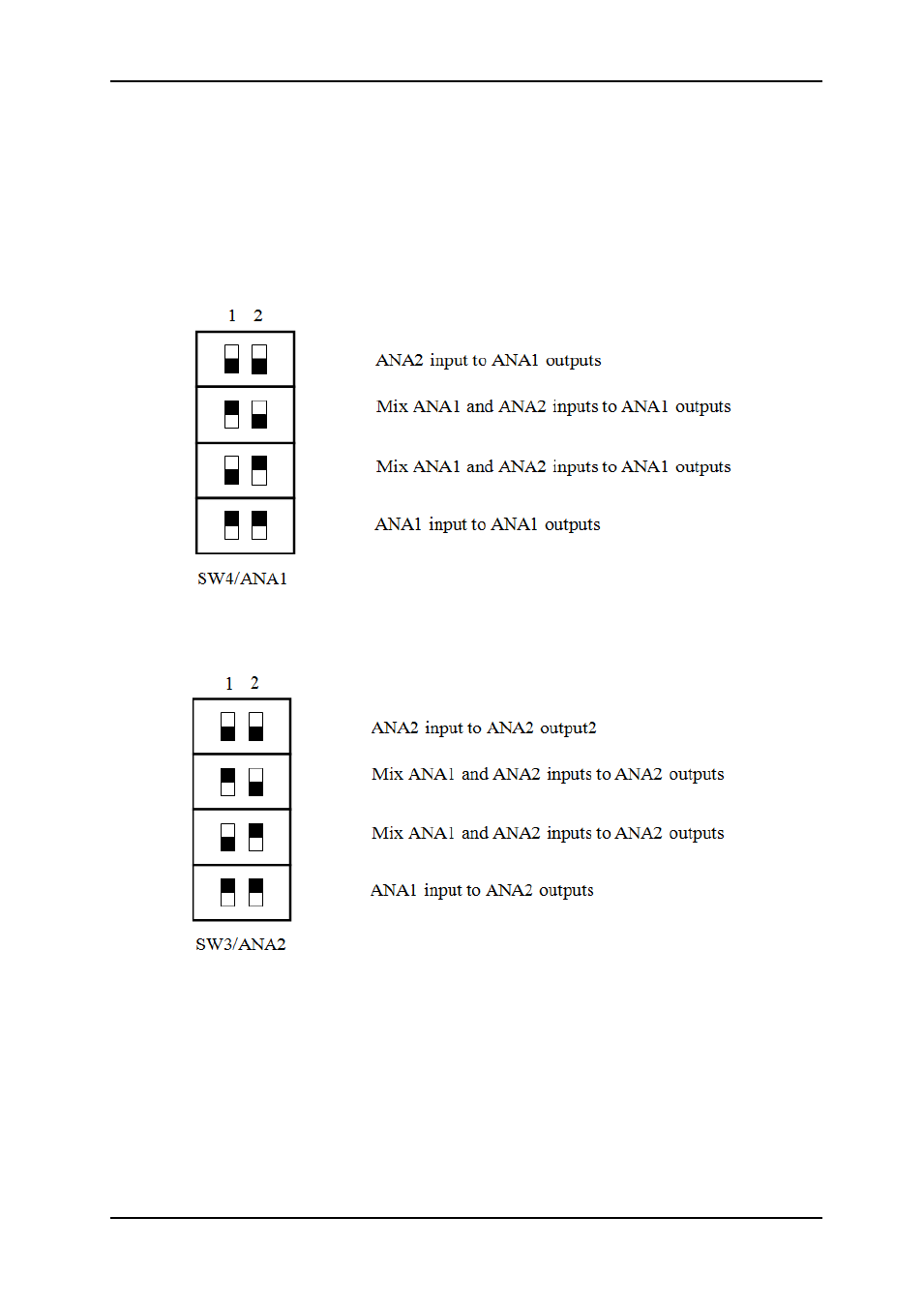

4 Output configuration
There are two groups of four outputs, ANA1 and ANA2 output. The two groups are
individually configured using DIP switch 3 and DIP switch 4. The switch sets which of the
input that is connected to the output.
4.1 Configuration of ANA1 output
Use dip switch SW4 / ANA1 for setting the outputs ANA1.
Figure 5
4.2 Configuration of ANA2 outputs
Figure 6
