1
Product overview
The Flashlink 3GHD-OE-L-2-SFP is a single or dual multi bit-rate optical to electrical
converter module providing high performance media conversion for various signal formats
from 19.4Mbps up to 2970Mbps. Unmatched signal accuracy, even in critical applications
with pathological signal patterns makes the 3GHD-OE-L-2-SFP the first choice for all optical
transport demands.
The 3GHD-OE-L-2-SFP can transport all SD, HD and 3G signal formats in addition to DVB-
ASI and SMPTE310M. It performs optical refreshing and signal re-clocking, which is
selectable on application. The optical inputs are embedded in optional SFP module, which
makes the module configurable to application specific needs. The open system platform of
Nevion Flashlink system allows easy interoperability with third party fiber optical systems.
The 3GHD-OE-L-2-SFP unit has also three electrical outputs for each converter, which
reduces the need for additional DA’s.

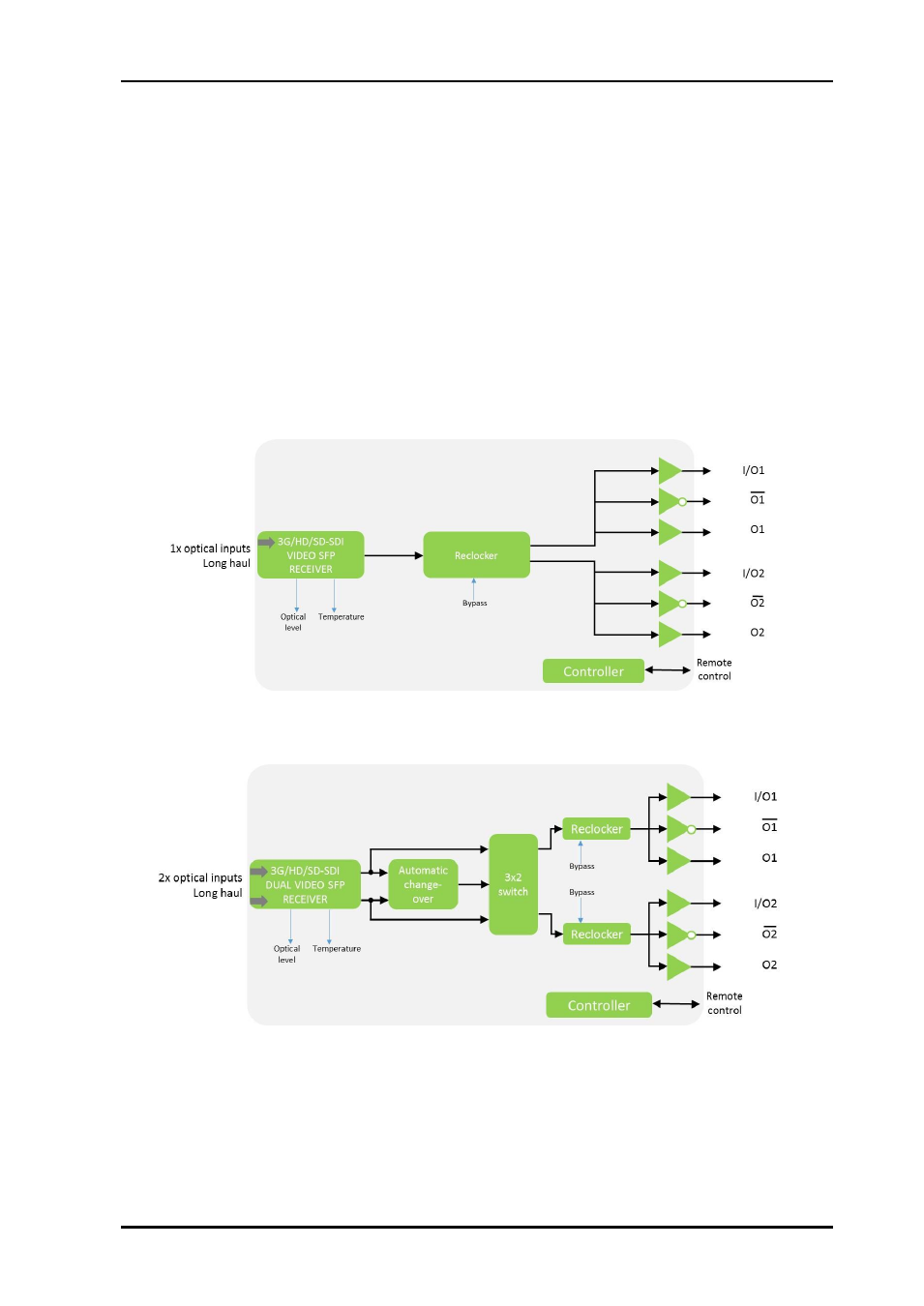

Figure 1 Block diagram of the 3GHD-OE-L-SFP single converter
Figure 2 Block diagram of the 3GHD-OE-L-2-SFP dual converter
