The RM6 Connections
The RM6 is a DIN rail mounted six circuit relay interface module for linking to indi-
vidual solid state or mechanical relays via ribbon cable from the TCM18 controller.
The RM6 includes individual terminal strips which allow the interconnection of in-
dividually mounted heater and ground current sensing transformers. This module
is primarily used where custom current transformers, solid state relays with integral
heat sinks, or individual pilot and mechanical relays are to be used. The module
connections for the RM6 are as detailed in the following illustration.

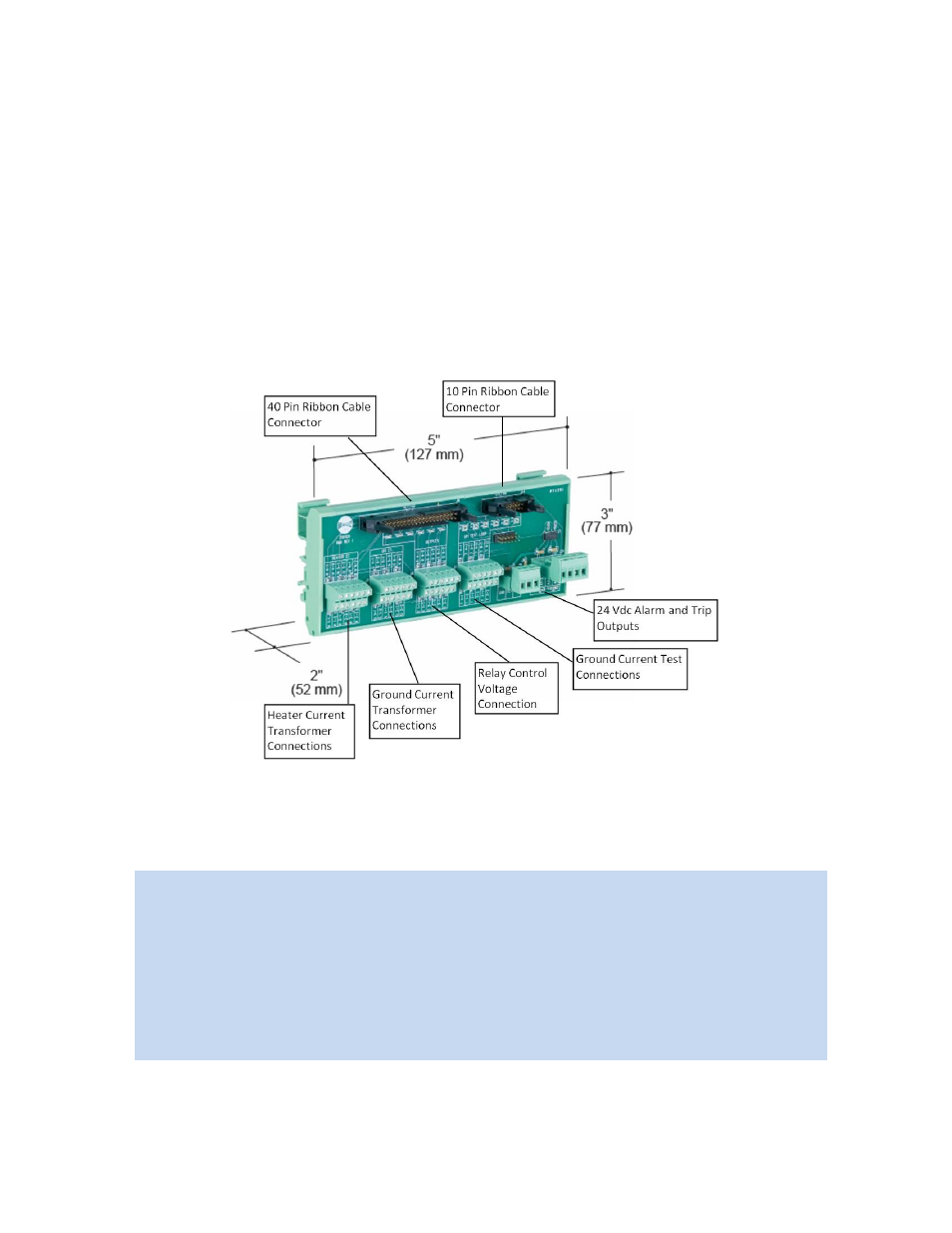

Figure 5: RM6 Wiring and Connections
Note:
When receiving a new TraceNet TC Series control panel shipment, it is
recommended that all module connections within the panel be re-torqued to the
recommended tightness levels as provided in the project panel drawing and in Table
1 Chapter 4. Occasionally, it is possible that handling and shipment can loosen
some wiring terminations or components cables.
Servicing allowed for removable electrical connectors only when the area is known
to be free of explosive atmospheres.
