a
3

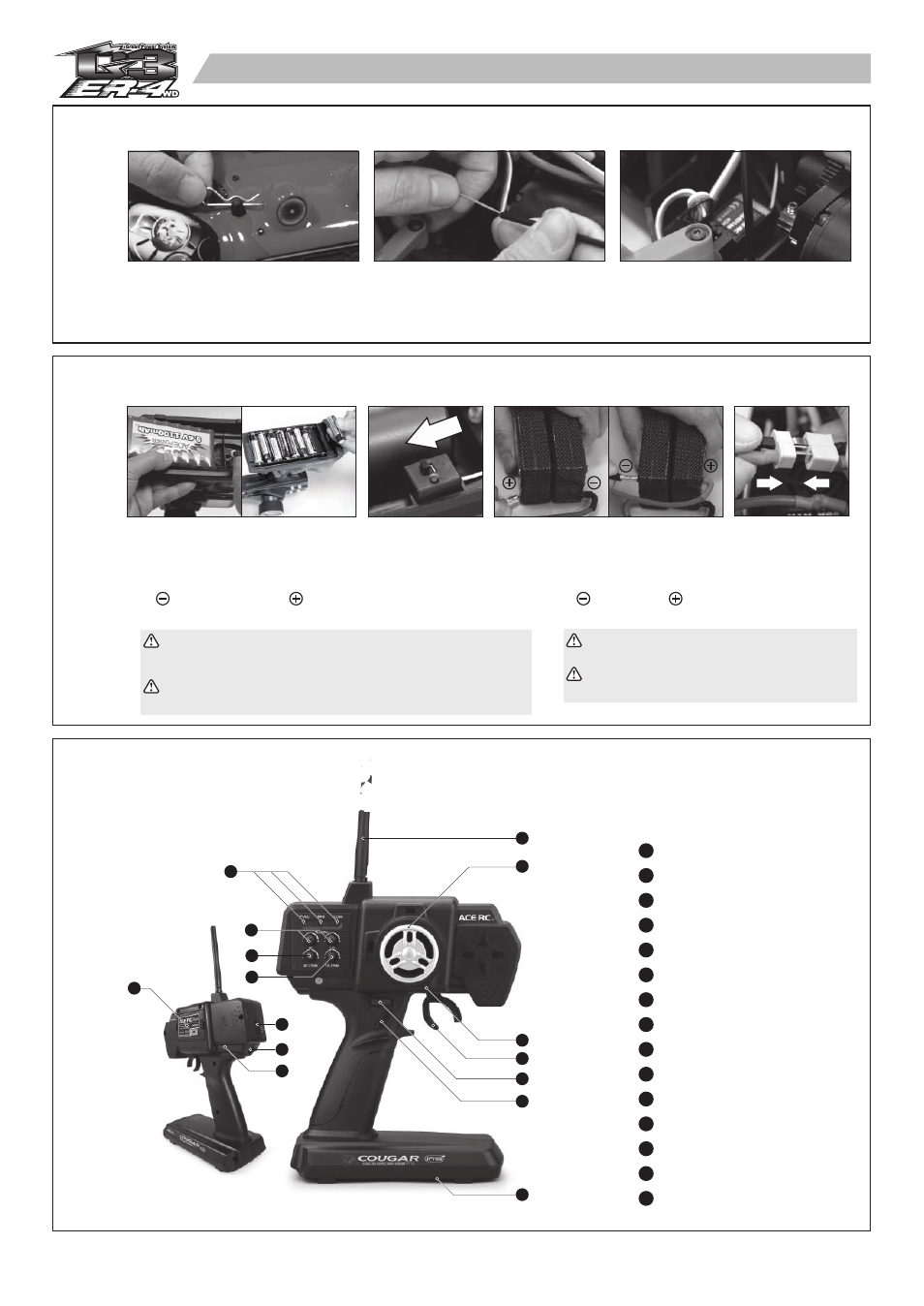

PREPARING THE CHASSIS 操作前，車體準備
2
a b
a. Remove the body pins (4 pcs.) and detach the body.
b. Straighten antenna and insert into antenna tube.
c. Put the antenna wire through the antenna pipe. (Do not cut or shorten
antenna wire.!) Push the antenna pipe into the chassis mount hole.
c
a. Install 8pcs alkaline or rechargeable AA-size batteries into transmitter.
b. Make sure switch is OFF.
c1. Combine two LiPo battery pack with included battery cord.
c2. Use included battery cord (with dean plag) to connect two battery.
( Connect black cord, Connect red cord.)
d. Install the power pack and connect to the ESC.
Caution ! Confirm wiring and connections before connecting
thespeed control to the battery. Incorrect polarity will damage
your speed control.
Caution ! Do not combine Ni-MH battery with Lipo battery. Use
fully charged batteries of the same type.
INSTALLING BATTERY 電池安裝
3
b
關 OFF
a. 將車殼固定插銷(共4個)拆除以取下車殼。
b. 將天線穿套進天線管內。
c. 將天線套管安裝於底板固定孔上
(請勿裁短天線以免影響接收距離)。
(Batteries are not included in the kit. 本產品不含電池)
c
2
c
1
d
a. 安裝八顆三號鹼性電池或充電電池於發射機內。
b. 先確認電源是關閉的。
c1. 以內附連接線連接兩個(7.4Vx2)鋰電池組。
c2. 使用內附電池連接兩組電池
（ 負極接黑線， 正極接紅線）
d. 將鋰電充電池電池組合裝入底板連接電池條與速控器。
注意！請注意電池與速控器接線之正負極置
（反裝電極將造成電池短路或速控器之損壞）。
注意！鎳氫電池請勿與鋰電池混搭使用。
使用兩組以上電池，請使用同性質電池組做搭配。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
The ACE RC Cougar P3 and BLC-80C
熟悉
2.4GHz電控系統及無刷馬達速控器
The ACE RC Cougar P3 and BLC-80C
熟悉
2.4GHz電控系統及無刷馬達速控器
4
4.1 ACE RC Cougar P3 2.4GHz 發射機
Transmitter Antenna
發射機天線
Battery Level Indicator
發射機電源顯示燈
HI/LO Throttle ATV (Adjustable Travel Volume)
高、低速油門行程調整鈕
Servo reversing switches
正逆轉設定裝置
Steering Trim
轉向微調鈕
Throttle Trim
油門微調鈕
Steering D/R (Dual Rates)
轉向大小動調整鈕
AUX Ch Button
第三動開關
External Charging Jack
充電孔
2.4GHz binding SW
2.4GHz校頻配對設定鈕
Steering Wheel
轉向舵輪
Power Switch
電源開關
Throttle Trigger
油門控制板機
Steering Tension Adjustment
轉向舵輪調整螺絲
Battery Cover
電池蓋
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
