30

CHAPTER 4 • INSTALLING CLICK SUPERVISOR

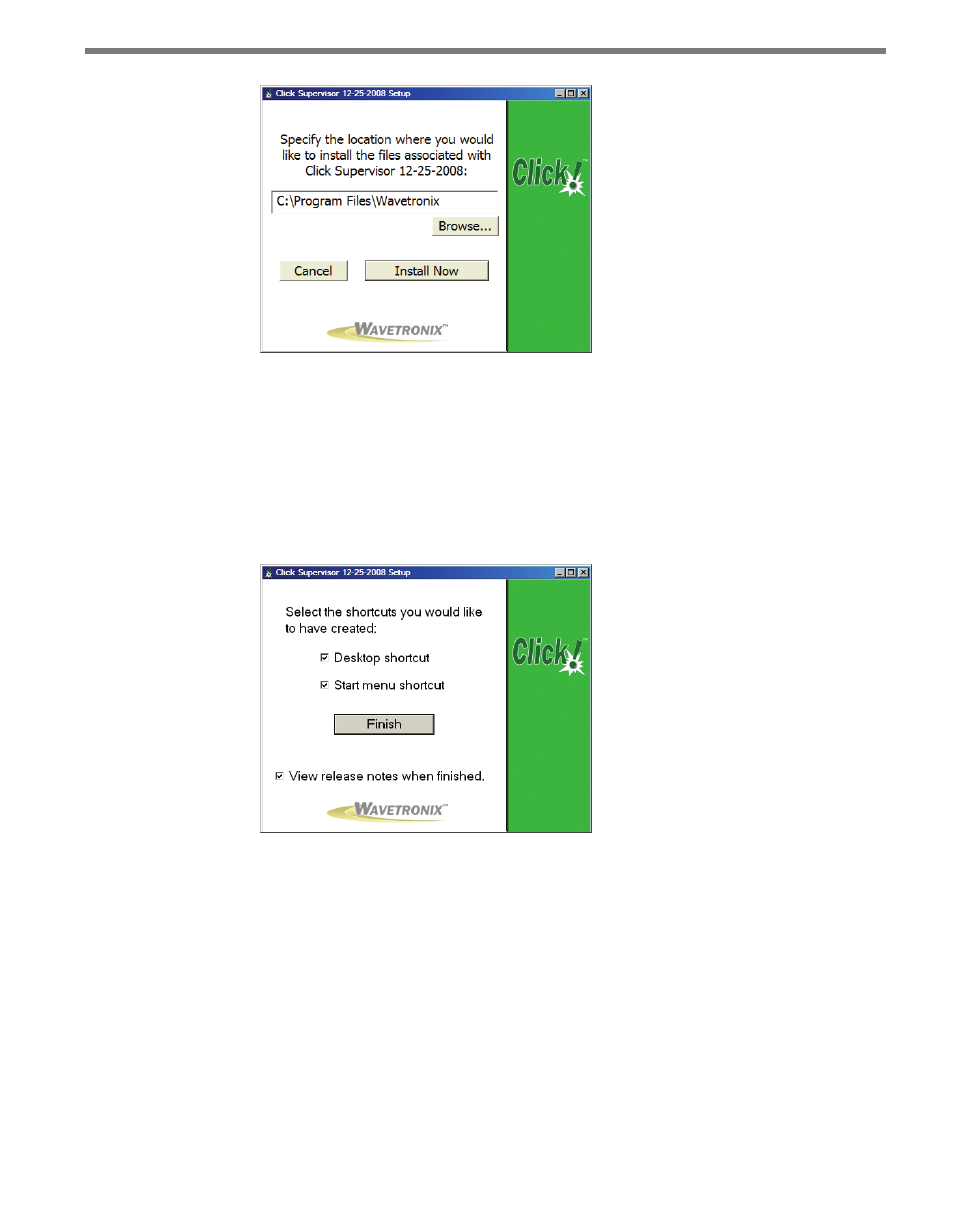

Figure 4.3 – Location to Be Installed

3 Click the Install Now button.

4 After Click Supervisor is installed, you can create shortcuts to the software on the desk-

top and in the start menu using the corresponding checkboxes on the final screen (see

Figure 4.4). If no shortcuts are desired, uncheck the corresponding boxes. If you are

installing on a Pocket PC at the same time, this screen will not appear until both instal-

lations are complete.

Figure 4.4 – Shortcut Options

5 Click the View release notes when finished checkbox to view the Click Supervisor

release notes. The release notes contain additional information about the current ver-

sion of the Click Supervisor software. A PDF reader program such as Adobe Acrobat

Reader is required to view the release notes.

6 Click Finish to complete the setup process.

Installing Click Supervisor on a Handheld Computer

Although the software can be installed on many handheld computers, because of constantly

changing handheld technologies, Wavetronix can only offer technical support on the hand-

held in the kit, which is a Socket Mobile 650.
