2030RDA Instruction Manual 17
Configuration and Monitoring

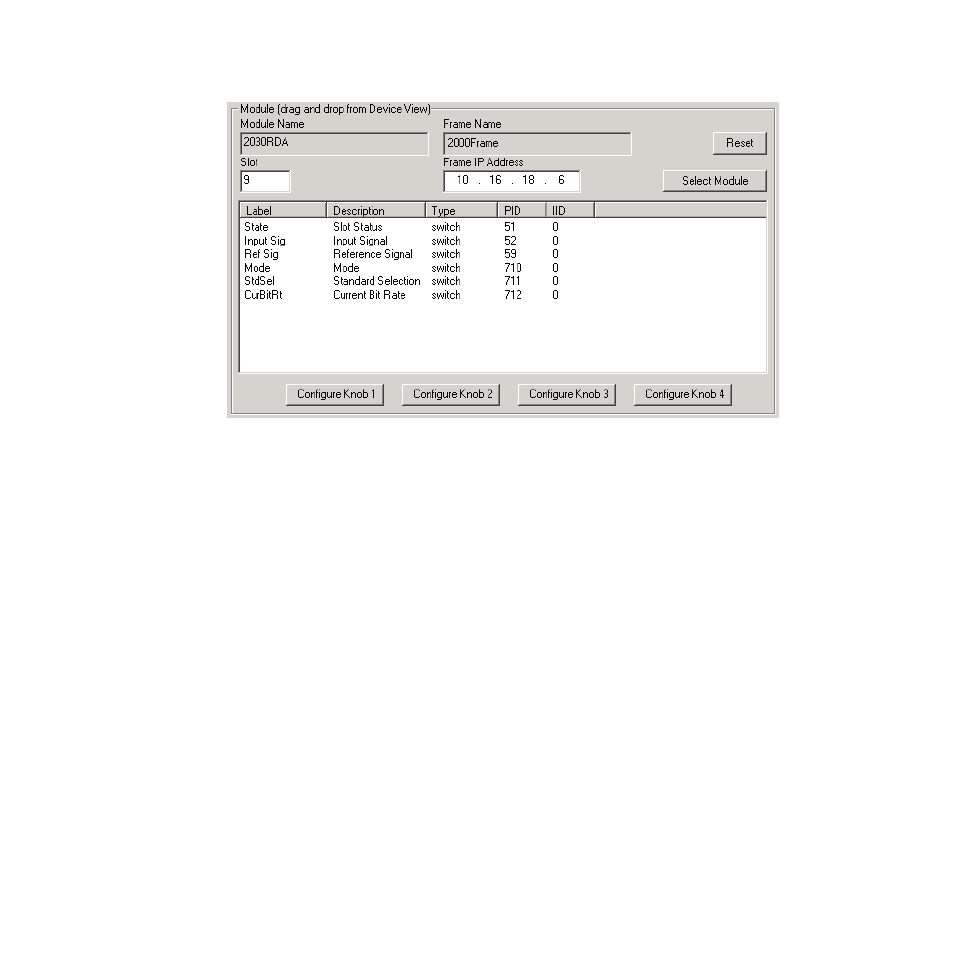

Figure 10. Newton Configurator Example
Refer to the documentation that accompanies the Newton Modular Control
System for installation, configuration, and operation information.
Web Browser Interface
The web browser interface provides a graphical representation of module
configuration and monitoring.
Use of the web interface offers the following considerations:
• Provides complete access to all module status and configuration func-
tions, including factory parameter and name default recalls, slot config-
uration, and SNMP monitoring controls.
• Web access will require some normal network time delays for pro-
cessing of information.
• Configuration parameter changes may require pressing the Apply
button or Enter , upload processing time, and a manual screen refresh to
become effective.
• Web interface recommended for setting up module signal and slot
names, and reporting status for SNMP and monitoring.
