Configuration
Web Page Headers

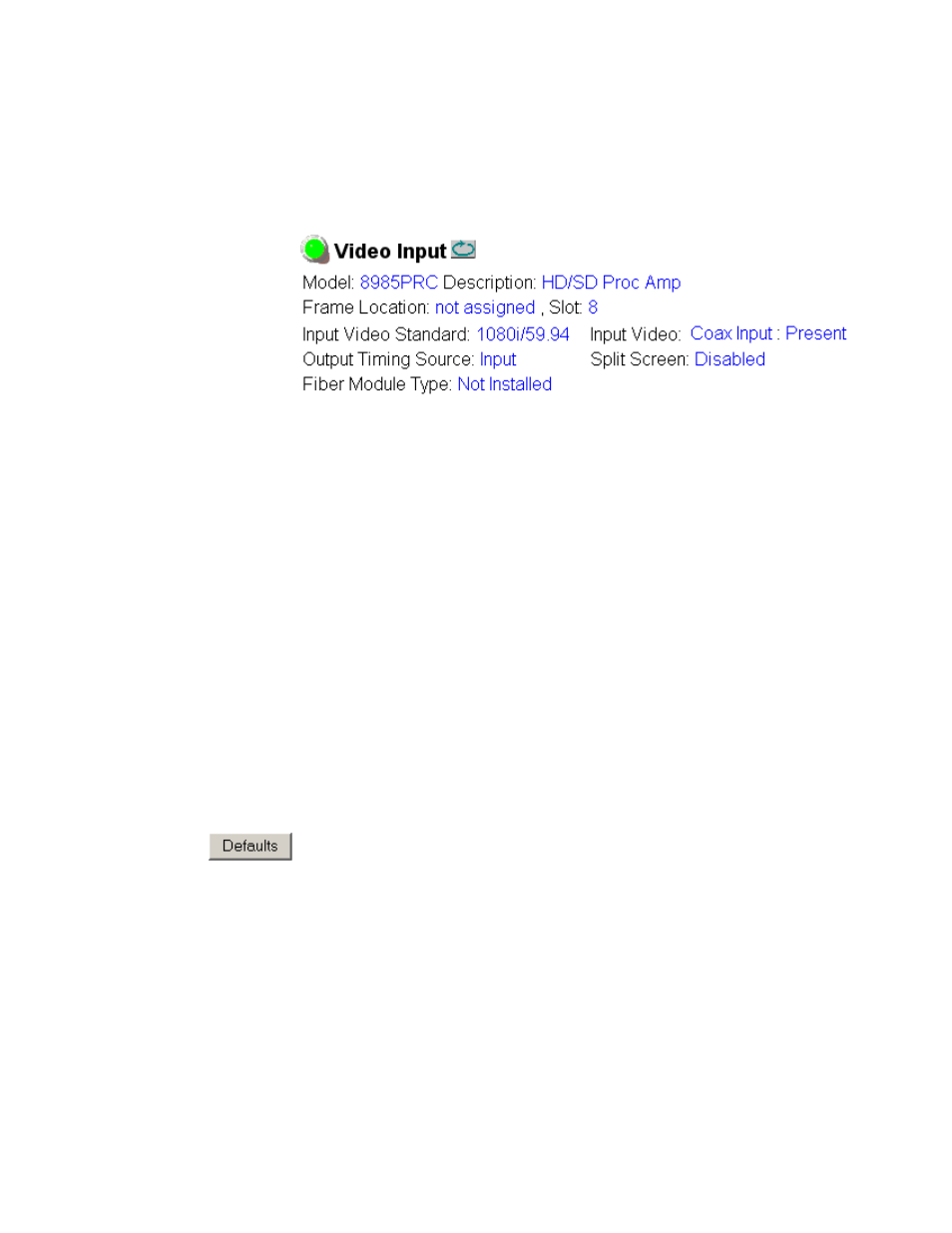

Each configuration web page has a Status and Identification Header as
shown in
Figure 9 .
Figure 9. 8985PRC Web Page Header
The header information on each web page of the 8985PRC module includes
the following:
• Model and Description are read-only generated by the module.
• Frame Location is defined on the 8900 Series GeckoFlex Frame Configura-
tion web page.
• Slot number reports the module’s location in the frame.
• Input Video Standard reports the input video type and rate selected on the
System Config web page.
• Input Video reports the status of the video input to the module.
• Output Timing Source reports the output timing source. This module has no
frame sync controls and will always report Input .
• Split Screen status is reported ( Enabled or Disabled ) as set on the System
Config, Color Correction, or Video Proc Amp web pages.
• Fiber Module Type is reported on the Video Input and Video Output web
page headers only on this module.
Web pages with configuration parameters each have a Defaults button at the
bottom of the page to allow resetting of default parameters for only that
page. Default values for all parameters are listed in
Table 6 on page 53 .
