34 8990ARC Instruction Manual
Configuration
8990ARC Links and Web Pages
The 8900 GUI provides the following links and web pages for the 8990ARC
module (
Figure 12 ):
• Status – reports input and frame bus status and module information
(
page 35 ),
• Settings – provides controls for aspect ratio, conversion mode, tilt and
pan, blanking options, WSS enable and line selection, Video Index
Coding enable, GPI enable, and other module functions (
page 36 ),
• Recall/Save User Settings– provides recall and save functions for user
and GPI functions as well as recalling factory defaults (
page 39 ),
• Slot Config – provides a Locate Module function, input signal naming,
SNMP trap report control, and Slot Memory (
page 40 ), and
• Software Update – gives information on software updating ( page 42 ).

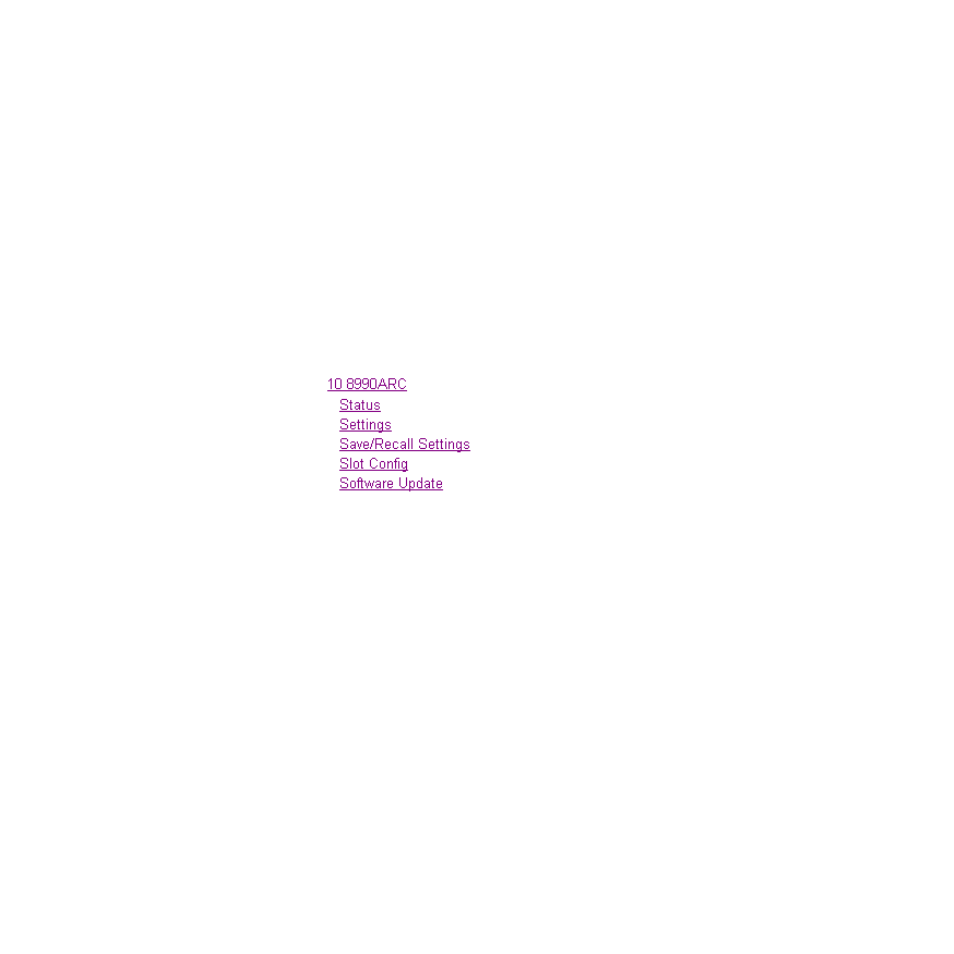

Figure 12. 8990ARC Web Page Links
Refer also to Table 8 on page 26 for an overview of each of the parameters
and their default values.
