KXO-HDM
Installation Instructions
7 Place the five screws and five lock washers you removed in
mounting holes (shown above), and tighten lightly.
8 Reinstall the small PCB that you had to remove in
The mezzanine replacement is now complete. Reseat the KXO-Dual card in the frame.
Installing the KXO-HDM on a KXO-Dual3
This installation procedure applies to the KXO-Dual3 boards only, which have assembly
numbers
0792-0100-600 and above. See
on page 1, for information on
locating the assembly number.
The contents of the installation kit are shown in the picture below:
A - One KXO-HDM mezzanine
B - Seven screws M2.5 × 6mm
C - Seven lock washers
D - Two screws 4-40 × ¼ with lock washer
E - Four washers
F - Four screw-mount cable retainers
G - Two adhesive cable retainers

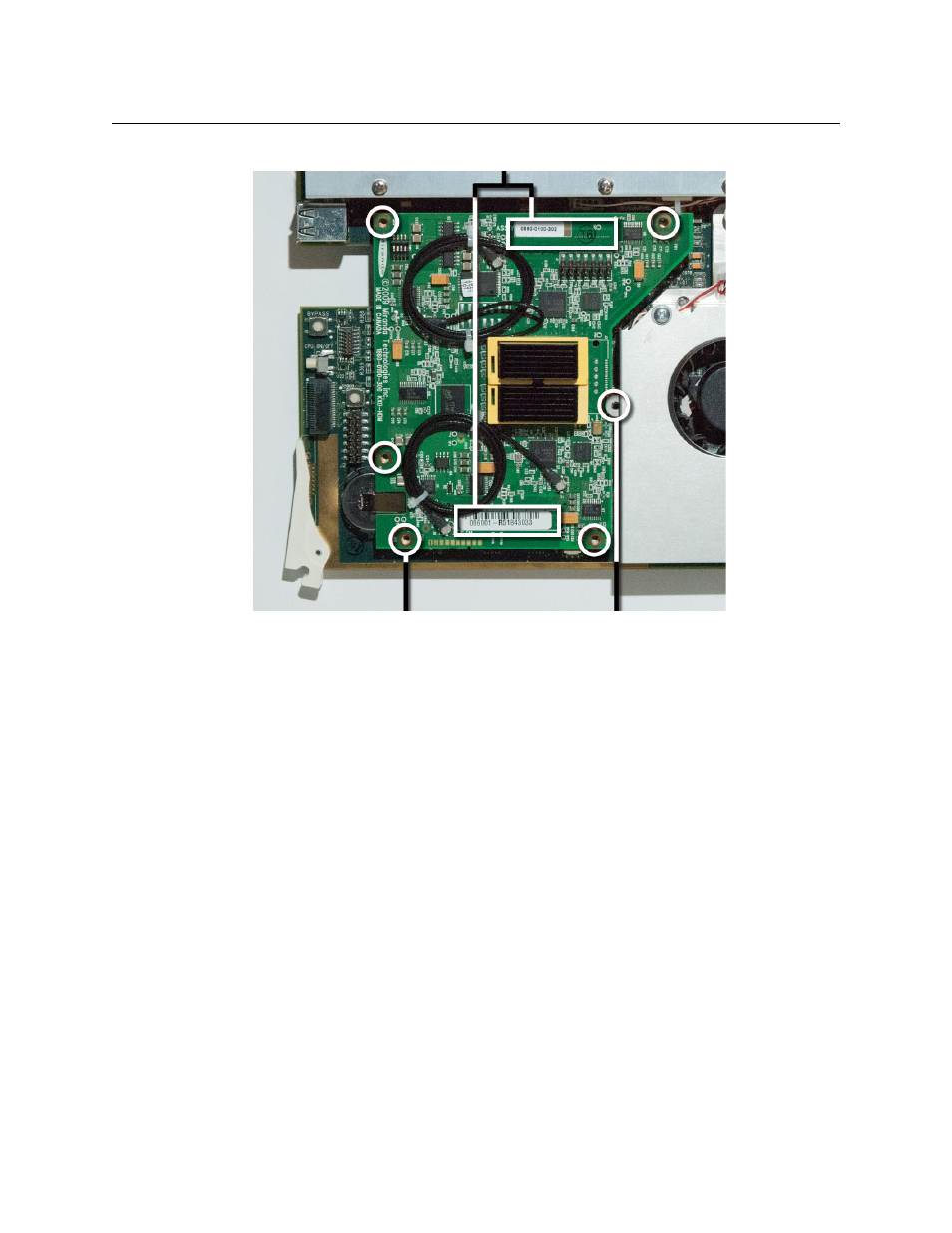

Connector areas
Five mezzanine
mounting holes
Place mezzanine under
heatsink mounting bracket
