3. DSP Submodule
Configuring the DSP Sub-Module
How to configure phase inversion
1 Launch UniConfig.
2 From the menu bar, select ‘Window > Audio Adjustment’. The ‘Audio Adjustment’ window
appears, as shown in Figure 3-6 on page 82.

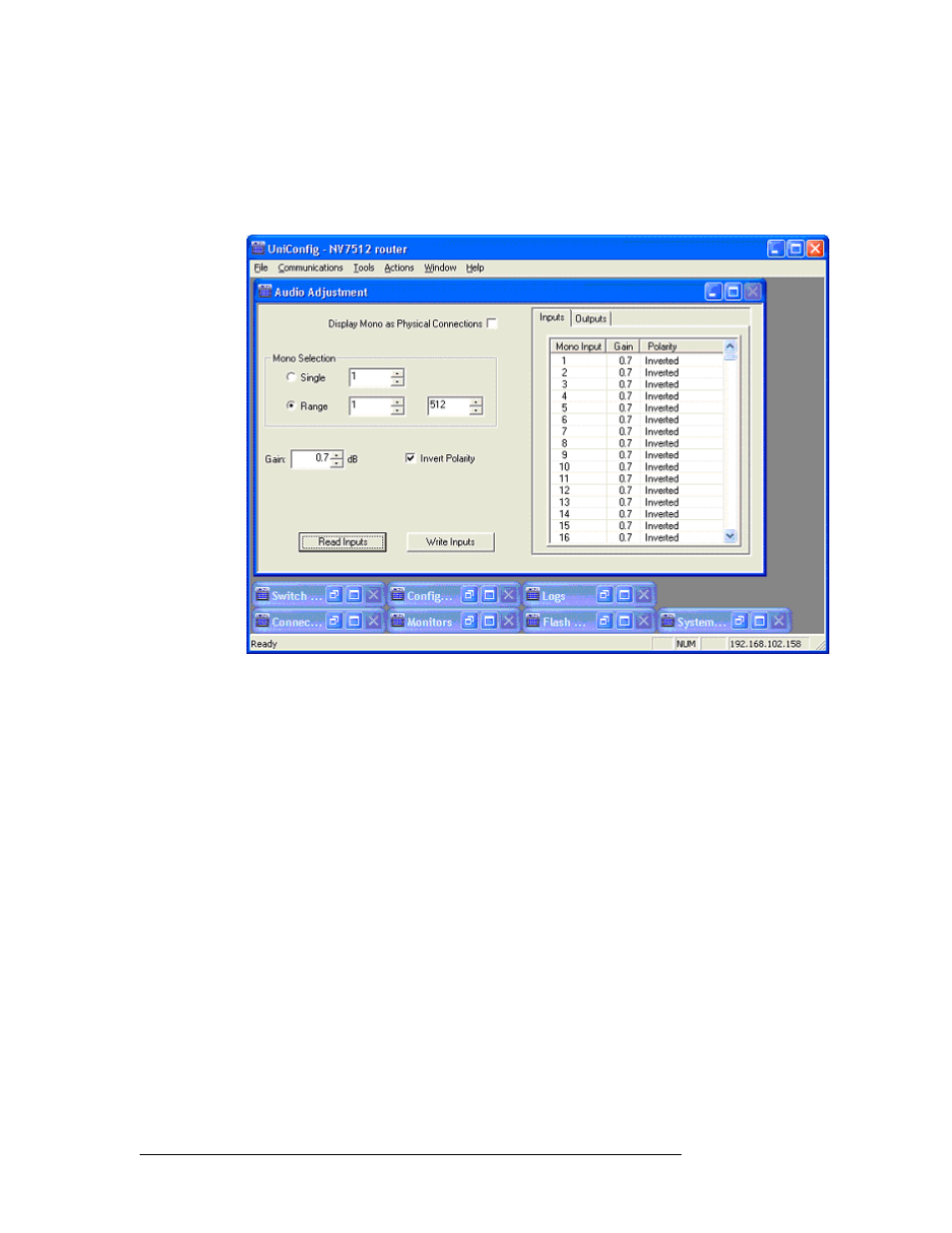

Figure 3-6. UniConfig Audio Adjustment Window
3 Click the ‘Input’ tab. The tab displays current ‘Mono Input’, ‘Gain’ and ‘Polarity’ settings.
4 Click
Read Inputs
. Crosspoint information displays in the ‘Input’ tab.
5 In the ‘Mono Selection’ section, select the ‘Single’ radio button for a single input channel or
select the ‘Range’ radio button for a range of input channels.
If ‘Single’ is selected, enter the channel number in the corresponding field.
If ‘Range’ is selected, enter the channel number in the corresponding fields to the right. Enter
the beginning channel number in the left-most field and the ending channel number in the right-
most field.
6 Check the ‘Invert Polarity’ check box to invert polarity.
7 (Optional) To display each left or right channel of a stereo signal, check the ‘Display Mono as
Physical Connections’ check box, as shown in Figure 3-6.
8 Click
Read Inputs
to display changes on the ‘Inputs’ tab.
9 Click
Write Inputs
to write and save your changes.
