LDK 4488, LDK 4489 SuperXpander, Xpander User’s Guide (v5.0)
43

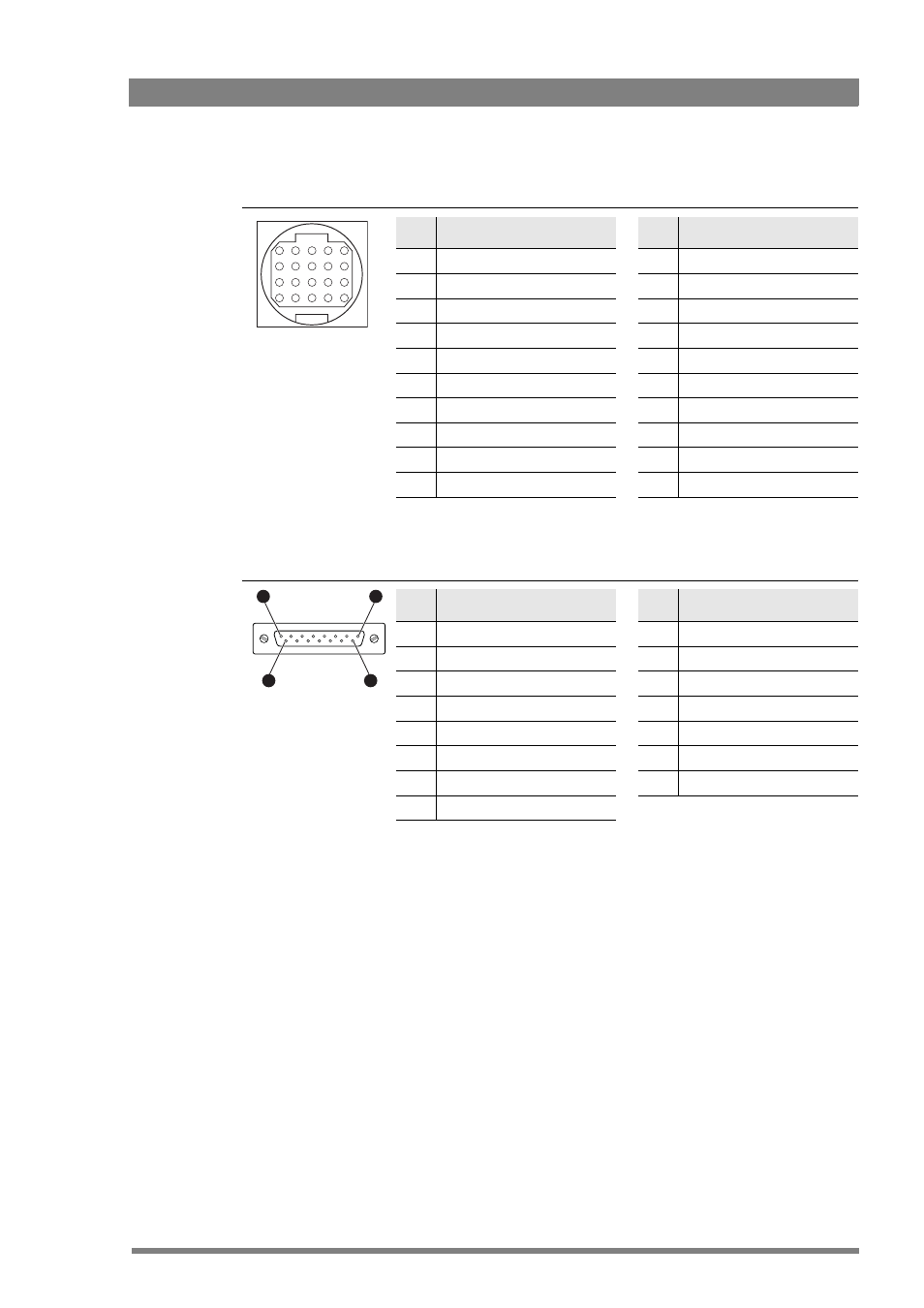

Chapter 6 - Connectors
6.2.5 Camera viewfinder connector
6.2.6 Top viewfinder connector (part of optional viewfinder support)
Pin
Description
1
-55 VDC
2
not connected
3
GND
4
INTN-D
5
VF Ext video
6
not connected
7
VF video return
8
SDA-D
9
SCL -D
10
VF Ext video return
20-pin female VF-
connector
Pin
Description
11
GND
12
VF video
13
Pb VF return
14
Pr VF return
15
GND
16
+ Batt
17
+ Batt
18
Pb VF
19
+Pr VF
20
Shield
19
16
11
5
18
17
20
13
12
15
14
8
7
10
9
6
3
2
4
1
Pin
Description
1
VF video
2
VF Ext Video
3
VF Pb
4
GND
5
Shield
6
+15 VDC
7
SCL - D
8
INTN-D
15-pin female D-sub
connector
Pin
Description
9
VF video return
10
VF Ext video return
11
+15 VDC
12
GND
13
Shield
14
VF Pr
15
SDA-D
15
9
1
8
