Page 4
–
–
–
–
2
3
Ordering Information
Ordering Information
Part Number
Description
MDEV-LICAL-HS
HS Series Master Development System with LR Series
MDEV-LICAL-HS-ES
HS Series Master Development System with ES Series

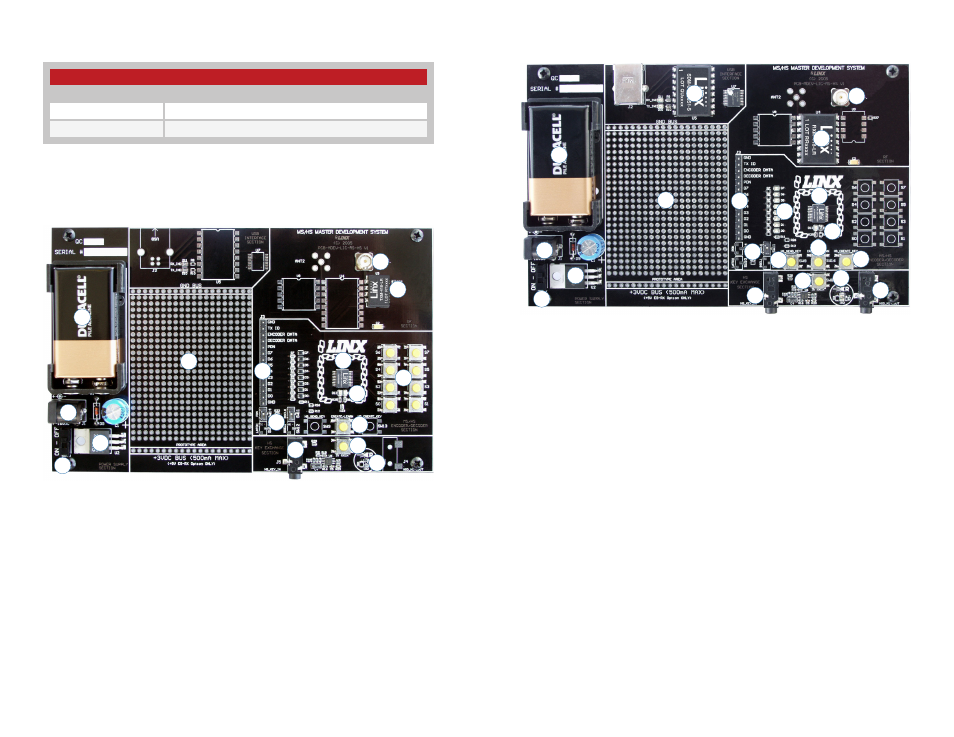

HS Series Encoder Development Board
1. 9V Battery
2. Power Jack
3. On-Off Switch
4. Voltage Regulator
5. Prototype Area
6. Break-Out Header
7. Reverse-Polarity SMA Antenna
Connector
8. LR Series Transmitter Module
9. HS Series Encoder
10. Indicator LEDs
11. Function Switches
12. CREATE Button
13. Data Line Buttons
14. Key Input Jack
15. IR Receiver Enable Button
16. IR Key Transfer Phototransistor
HS Series Deccoder Development Board
Figure 4: HS Series Deccoder Development Board
1. 9V Battery
2. Power Jack
3. On-Off Switch
4. Voltage Regulator
5. QS Series USB Module
6. Prototype Area
7. Break-Out Header
8. Reverse-Polarity SMA Antenna
Connector
9. LR Series Transmitter Module
10. HS Series Decoder
11. Data Line LEDs
12. Indicator LEDs
13. Function Switches
14. LEARN Button
15. SEND_KEY Button
16. CREATE_KEY Button
17. Key Input Jack
18. IR Receiver Enable Button
19. IR Key Transfer Phototransistor
and Diode
20. Key Output Jack
Figure 2: Ordering Information
Figure 3: HS Series Encoder Development Board
4
1
2
3
10
6
7
8
5
9
11
13
12
14
15
16
4
1
2
3
10
6
7
8
5
9
11
13
12
14
15
16
17
18
19
20
