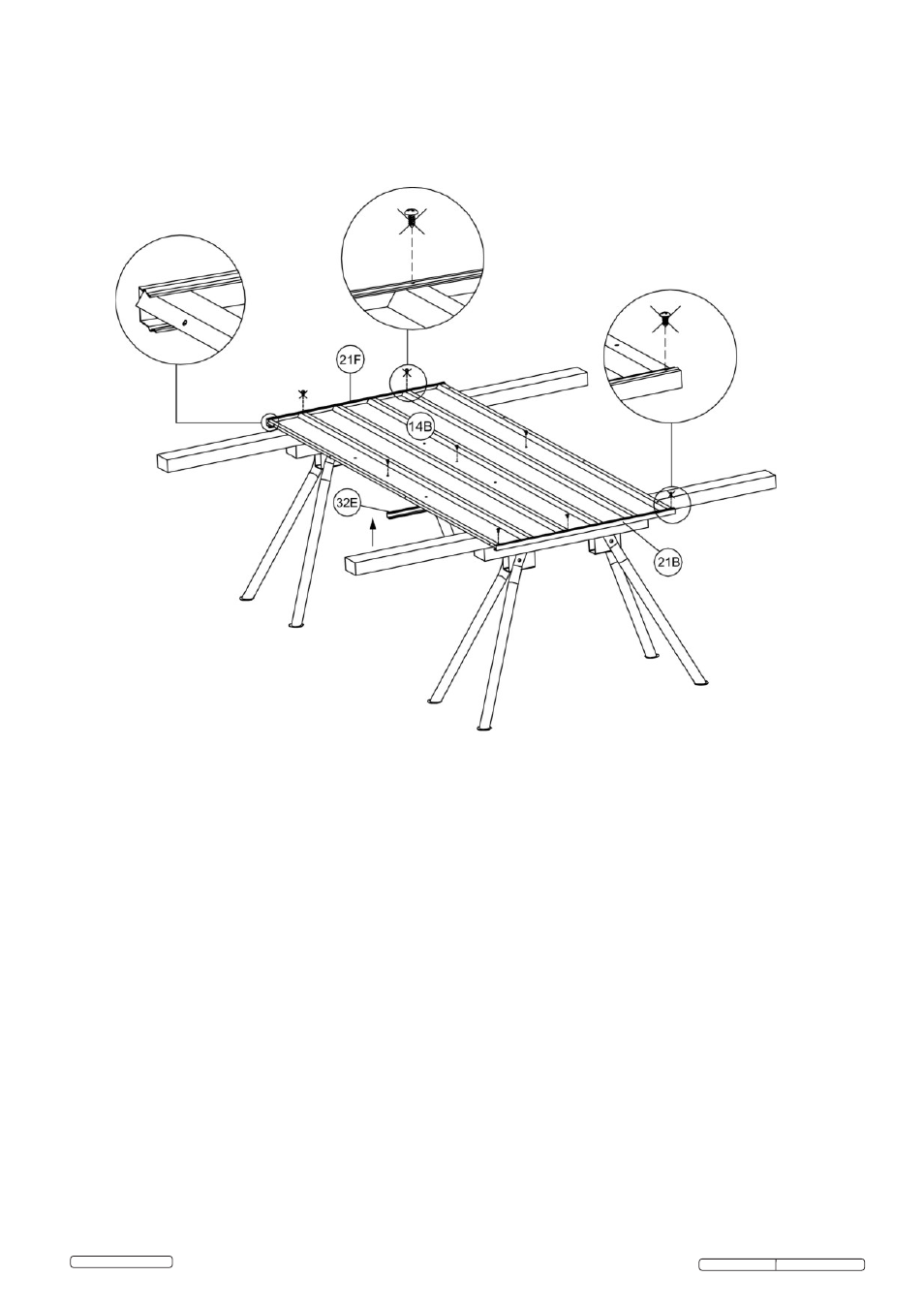

7.2.1 Place panel 14B on your work table.
7.2.2 Fit top and bottom channels 21B and 21F to panel by firstly sliding and finally tapping into place as previously
similar panel build. Note again that the smaller flange on the channels should always be adjacent to the
outside face of the panel. The outside face is the top face in the diagram.
7.2.3 Fit item 32E the mid height wall channel to the panel and position it by the pre-punched holes and 10mm
long self tapping screws. Note this channel is fitted with the flat face uppermost, ie. nearest the “top” when
assembling the shed.
7.2.4 With self tapping screws fix item 21B to bottom edge except in position marked with asterisk *, and
do not
screw fix item 21F to top edge at this stage. See those fixings marked with asterisk *.
7.2
ASSEMBLE THE END WALL PANEL.
