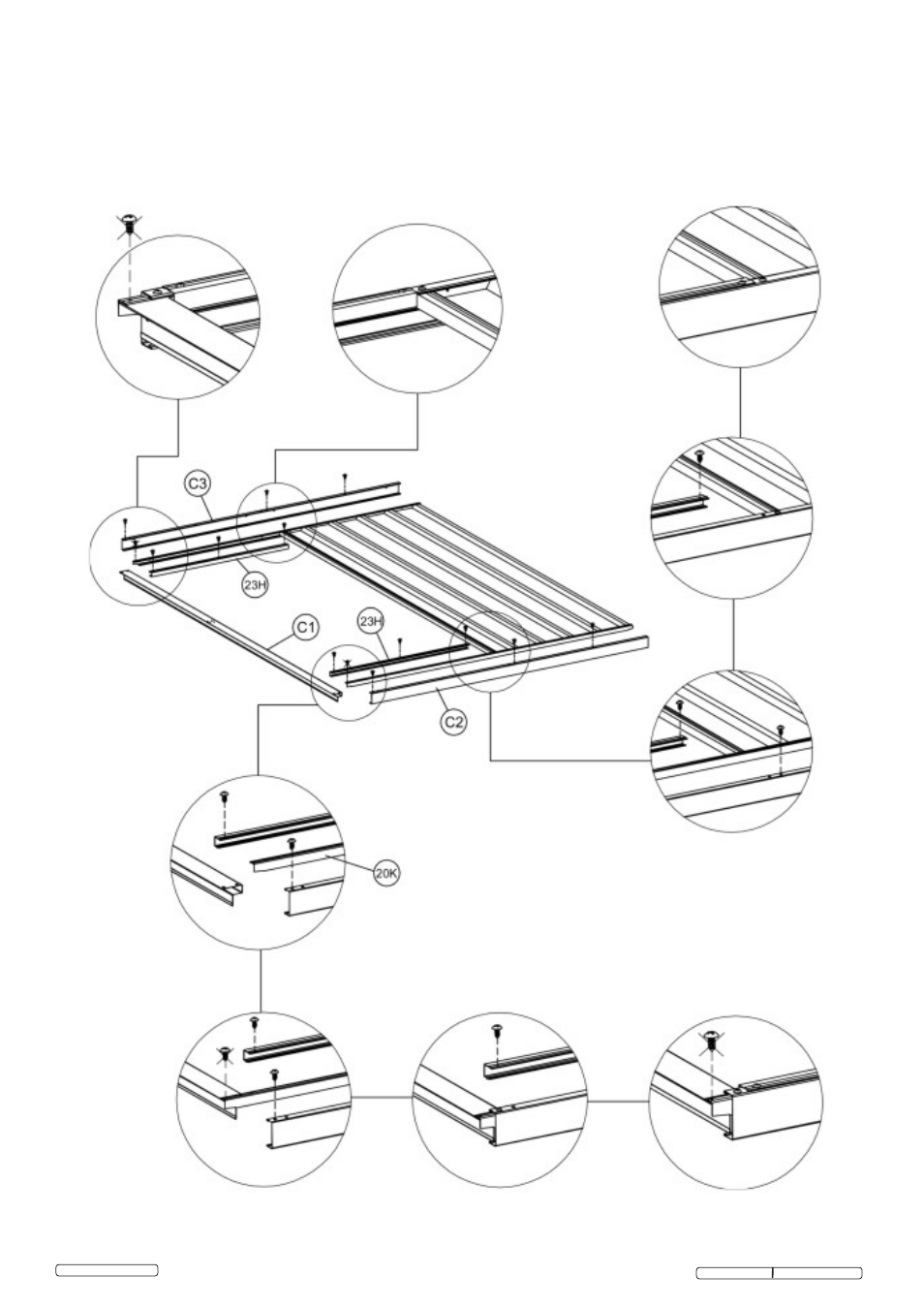

7.5.3 Fit item C1 the door jamb to the top and bottom channels 20J and 20K with 10mm long self tapping screws.
7.5.4 Fit the door roller top and bottom tracks item C3 and C2 to top and bottom edge of panel with 10mm long
self tapping screws.
7.5.5 Fit the door way cover channels item 23H with 16mm long self tapping screws. See also section in 7.6
showing door 5A and orientation of frame and track.
DO NOT screw fix in the positions indicated by the
asterisk * at this stage.
*
