D Drra aw wb ba arr e ey ye es s / / S Siin ng glle e h ha an nd d p piin ns s R RO O i i 8 81 10 0 D D
2 3 4 5 1
l

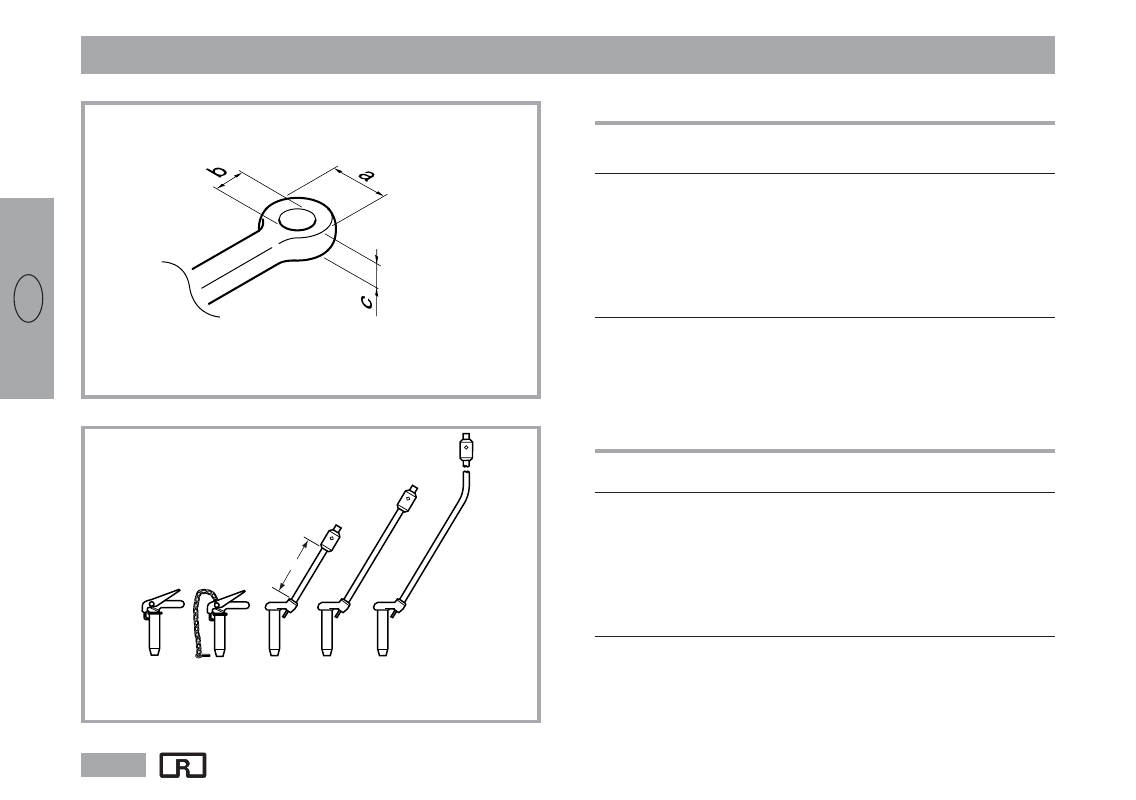

Fig. 7
Fig. 6
Drawbar eyes
DIN Nennmaße turn-angle
a (mm) b (mm) c (mm) horizontal vertikal
11026 100 40 42 min. 70
°
min. 20
°
74053 115 50 45 min. 78
°
min. 20
°
74054 100 40 30,5 min. 78
°
min. 20
°
11043 100 40 32 min. 76
°
min. 22
°
9678 120 50 30 min. 60
°
1 min. 25
°
Do not use any other towing eyes: risk of accident!
Single hand pins
Item Length (l) (mm) ROE
1 – 66887
2 – 66984
3 345 67075
4 500 67086
5 650 67549
GB
