PERIODIC MAINTENANCE OF XA-3501-03505 SERIES
FIFTH WHEEL TOP PLATES
WEEKLY
1. Apply grease to the bracket supports through
the grease fittings as shown below.
2. Be sure the fifth wheel top plate is lubricated.
3. Check operation of the fifth wheel locking
mechanism.
MONTHLY
1. Steam clean the entire top plate thoroughly.
2. Inspect the fifth wheel top plate assembly.
Ê
UÊ
iVŽÊvœÀÊpÊ>˜`ÊÀi«>ViÊpÊ>˜ÞÊLi˜М]КЬœА˜]К
or broken parts.
Ê UÊ
iVŽÊvœÀÊVÀ>VŽГКˆ˜КМ iКМœ«К«>ÌiÊV>ГМˆ˜}КœАК
any component part.
Replace as required using only genuine HOLLAND
parts.
3. Check the fifth wheel locking mechanism
for proper operation using a HOLLAND
TF-TLN-1000 or TF-TLN-5001 Lock Tester. When
checking, move the lock tester fore and aft when
closed in the locks. If play exceeds 3/8˝, rebuild or
replace the top plate. See your Holland Distributor
for parts and ordering information.
4. Relubricate the entire fifth wheel as shown above.

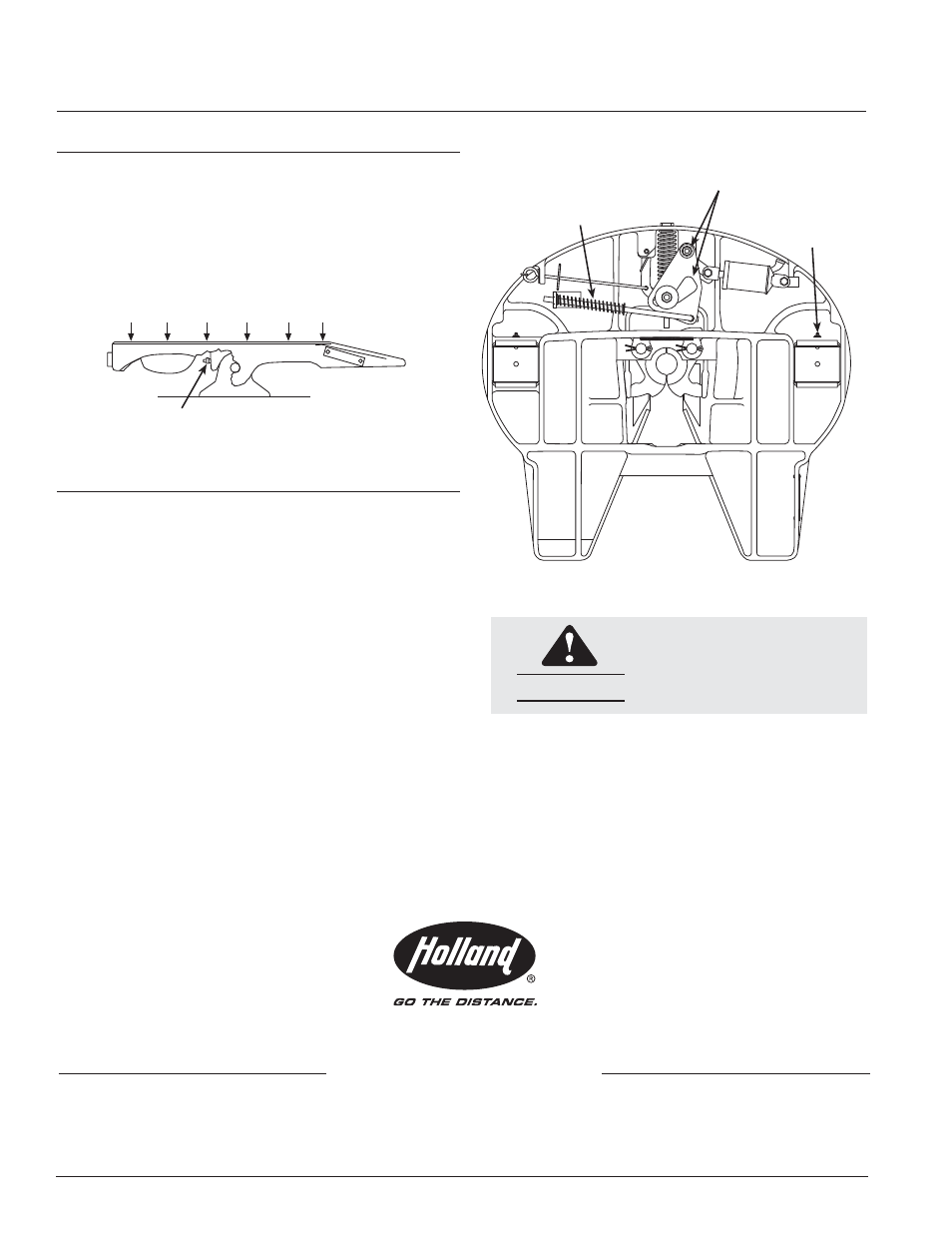

LUBRICATE CAM PIVOT
AND TRAVEL PATH
BRACKET
SUPPORT
GREASE
FITTING
LUBRICATE
SPRING
AND ROD
GREASE THE TRAILER
CONTACT SURFACE.
GREASE THE BRACKET SUPPORTS
THROUGH THE FITTINGS ON BOTH SIDES.
USE WATER
RESISTANT
LITHIUM-BASE
GREASE.
4 XL-FW313-01 Rev C
WARNING
DO NOT use any fifth
wheel which does not
operate properly.
