6. Screw appliance into place and retain the cabinet
with screws through the securing brackets into the
worktop or adjacent woodwork as necessary.
5

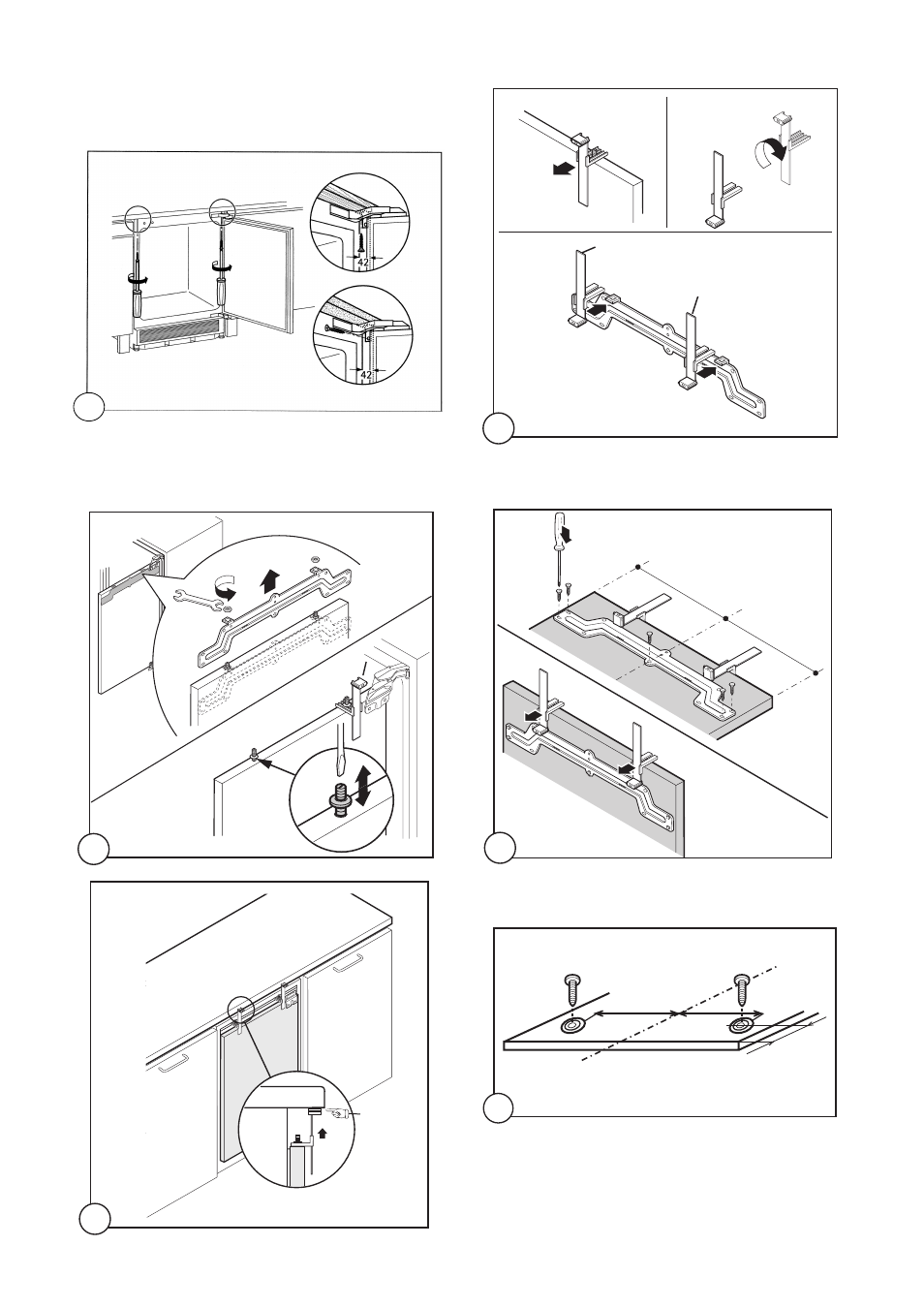

7. To mount the furniture door proceed as shown in
the figures:
7
6
a
b
10
1
2
3
4
C
8
a
b
clic
clic
c
C
C
9
b
a
=
=
1
2
UPPER PART OF KITCHEN FURNITURE PANEL
9/a
275
275
max 100
LOWER PART OF KITCHEN FURNITURE PANEL
