M2_1~2: M.2 Slots (Key M)
M2_1
⚠
Important
Intel® RST only supports PCIe M.2 SSD with UEFI ROM.
M2_2

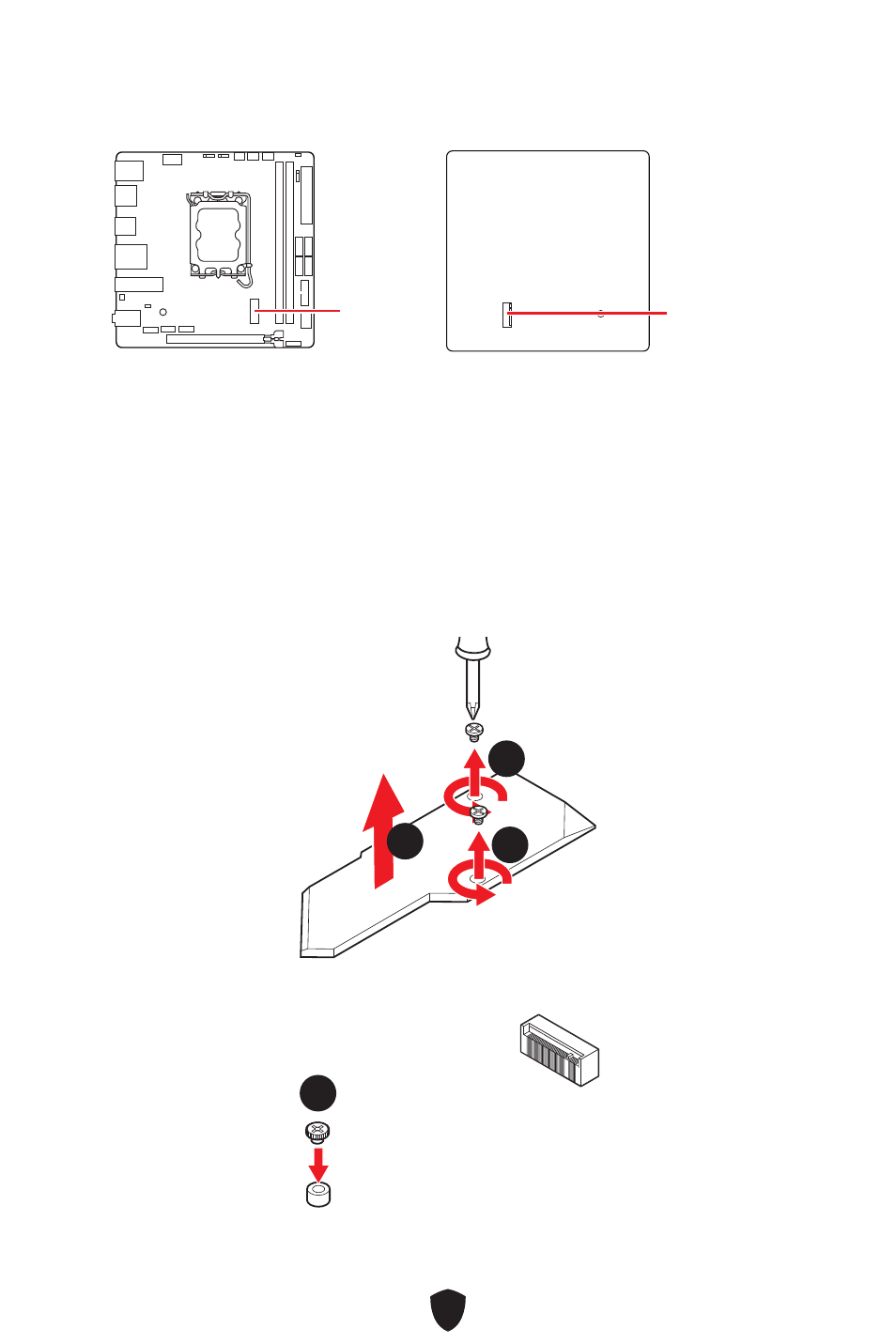

Installing M.2 module into M2_1 slot
1.
Loosen the screws of M.2 Shield Frozr heatsink.
2.
Lift up the M.2 Shield Frozr heatsink and remove it.
1
1
1
1
2
2
3.
Secure the supplied M.2 standoff.
3
3
