1090 fan – Lenovo 3000 C100 User Manual

Page 56

Advertising
background image

1090

Fan

For

access,

remove

these

FRUs

in

order:

v

“1010

Battery

pack”

on

page

43

v

“1050

Cover,

strip

(E

cover)”

on

page

47

v

“1060

Function

board”

on

page

48

v

“1080

MiniPCI

adapter”

on

page

51

1

3

2

3

4

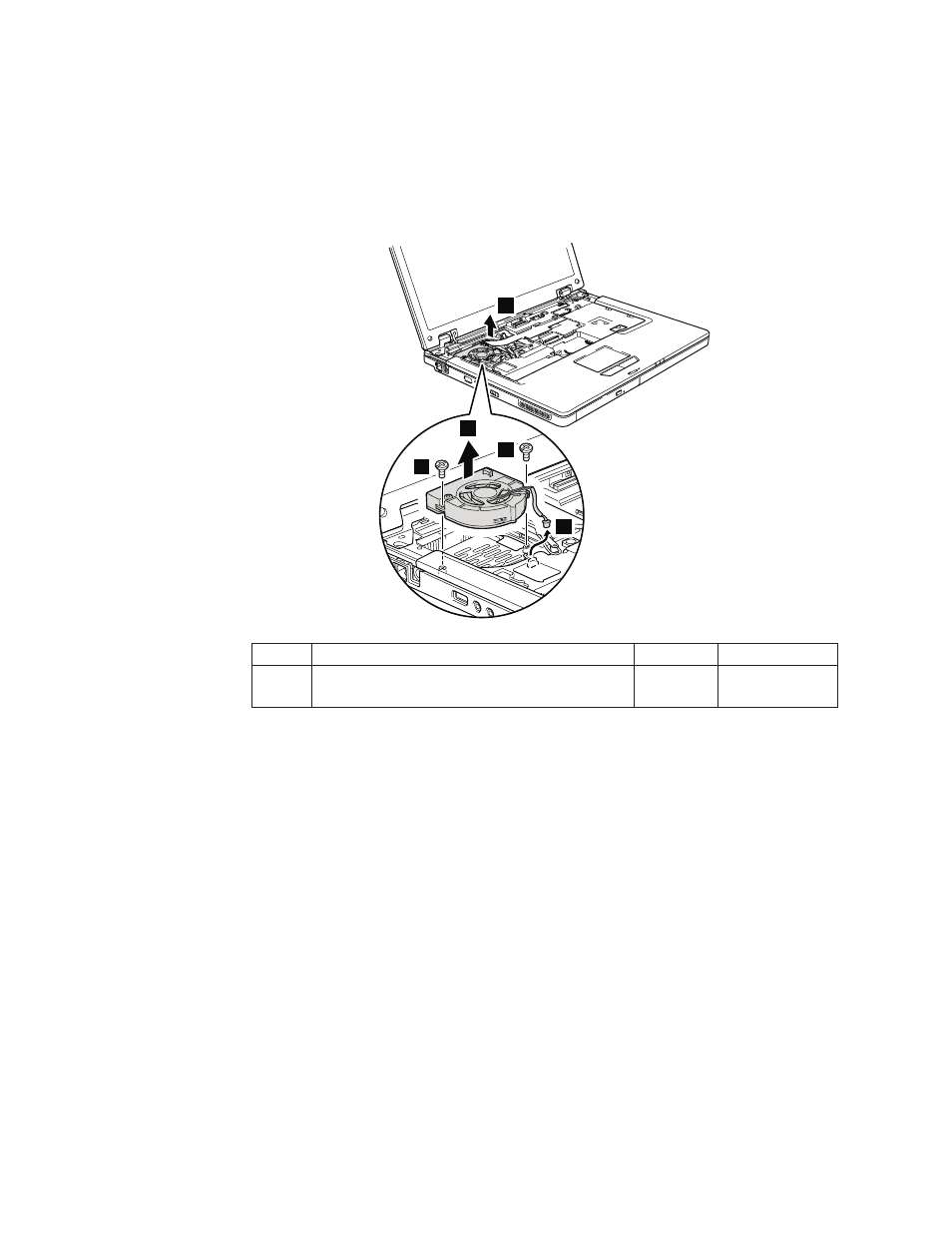

Step

Screw

(quantity)

Color

Torque

1

M2

×

6

mm,

flat-head,

nylon-coated

(2)

Silver

0.245

Nm

(2.5

Kgfcm)

When

installing:

Make

sure

that

the

fan

connector

is

attached

firmly.

Removing

and

replacing

a

FRU

52

MT

0761
