Use the numbers indicated in parentheses when asking for
replacement parts.
Supplied accessories
1 Remote control
(EUR7711110)
2 Batteries 1 AM loop antenna
(G0ZZ00002036)
1 AC adaptor
For continental Europe (RFEA207E-T)
For the United Kingdom (RFEA208B-T)
For Australia and New Zealand (RFEA209A-T)
For other areas (RFEA210Z-T)
Note
The included AC adaptor is for use with this unit only. Do not use it with
other equipment.
The remote control
Remote control signal sensor
3
2
1
4
(R6, AA, UM-3)
g Batteries
• Insert so the poles (+ and –)
match those in the remote
control.
• Do not use rechargeable type
batteries.
g Use
Placements
Place this unit in an area with more than 300 mm
of vertical space.
The CD lid may become damaged if it cannot open
completely.
Placement of speakers
You can remove the speaker cover netting.
Left and right speakers are exactly the same.
Note
• Keep your speakers at least 10 mm away from the
system for proper ventilation.
• These speakers do not have magnetic shielding.
Do not place them near televisions, personal
computers or other devices easily influenced by
magnetism.
• To avoid damage to the speakers, do not touch
the speaker cones if you have taken the nets off.

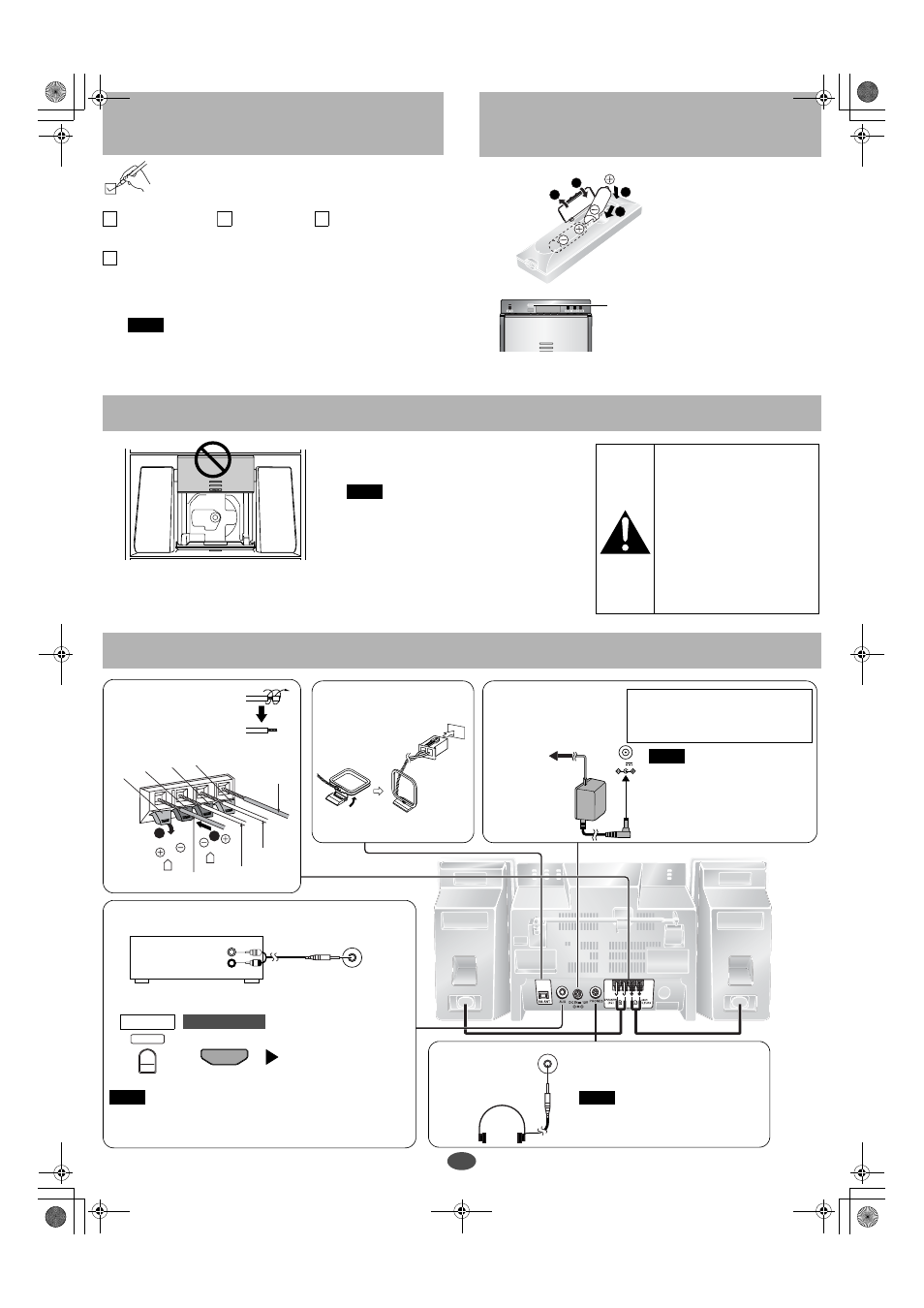

Connections
Caution
• Use the speakers only with the
recommended system. Failure
to do so may lead to damage
to the amplifier and/or the
speakers, and may result in
the risk of fire. Consult a
qualified service person if
damage has occurred or if you
experience a sudden change
in performance.
• Do not attach these speakers
to walls or ceilings.
3 AC adaptor
Connect the AC adaptor only
after all other connections
have been made.
1 Speakers
Before connecting, twist and
pull off the vinyl tip of the
speaker cords.
R
L
1 2
Red
Red Black
Black
Copper (+)
Copper (+)
Silver (–)
Silver (–)
2 AM loop antenna
Stand the antenna up on its base.
AM ANT
Use
AUX
Note
• An analogue player with a built-in phono equalizer can be
connected.
• For details, refer to the instruction manual of the other equipment.
Reduce the volume before connection.
Plug type: 3.5 mm stereo
Note
Avoid listening for prolonged periods of
time to prevent hearing damage.
Start Playback from
the other source.
FOR THE UNITED KINGDOM ONLY
BE SURE TO READ THE CAUTION
FOR THE AC MAINS LEAD ON PAGE
7 BEFORE CONNECTION.
Select “AUX”
AUX
OUT
(R)
(L)
Tape deck, etc.
13V DC IN
PHONES
Headphones
(Not included)
To household
mains socket
Other equipment
(Cables and equipment not included.)
Remote control
AUX
Main unit
Plug type:
3.5 mm stereo
Note
• The configuration of the AC adaptor
differs according to the area.
• If the unit is left unplugged for
longer than two weeks, all settings
will revert to the factory settings.
Do the settings again if this occurs.
• Aim at the sensor, avoiding obstacles, at a
maximum range of 7 m directly in front of the
unit.
• Operation can be affected by strong light
sources, such as direct sunlight, and the
glass doors on cabinets.
