17 ‘05-‘09 Tacoma (W/O Hitch) - 3” Kit 5603

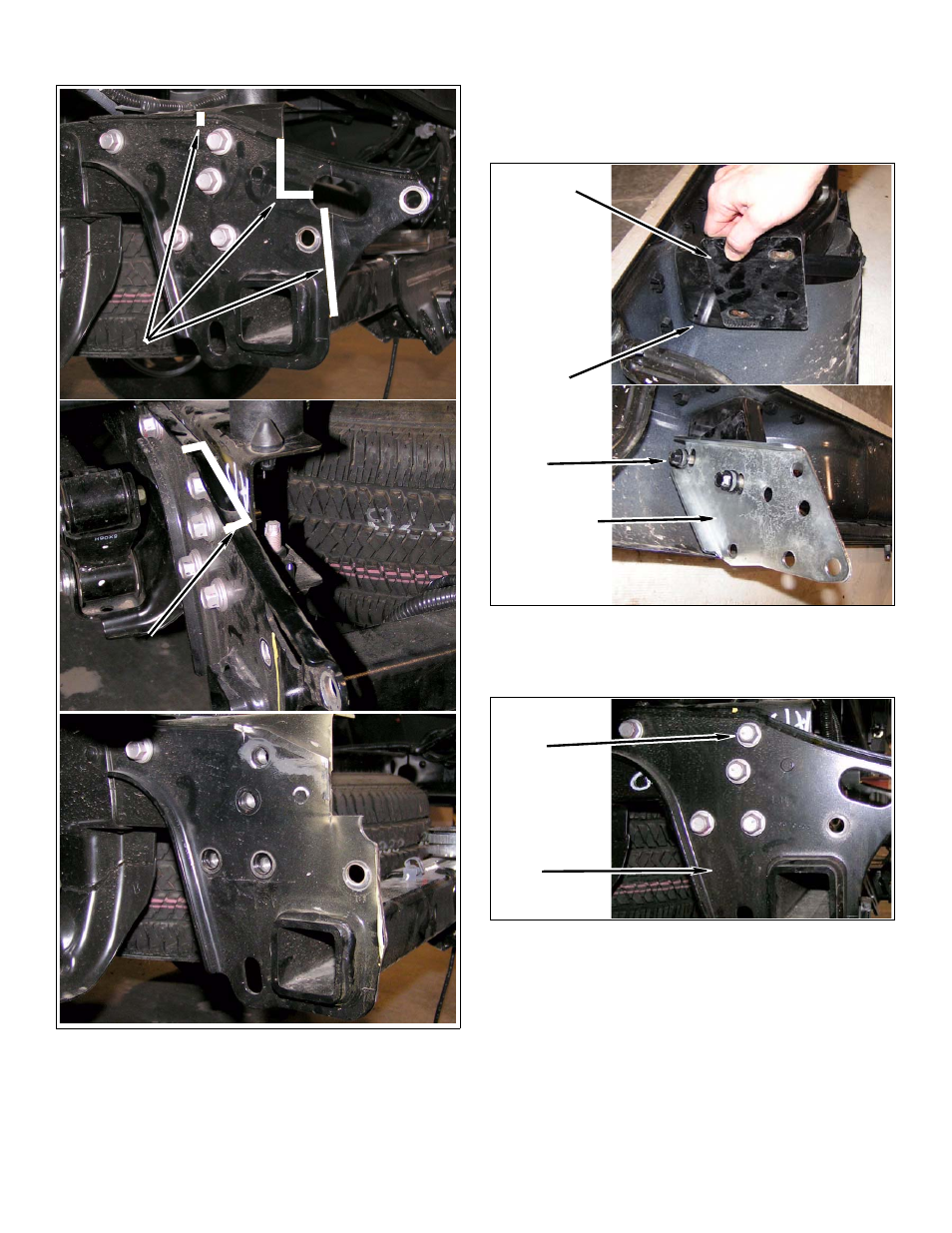

a. Mark and cut driver and passenger O.E. trailer
hitch brackets along white lines as shown below.
Mark
& Cut
Here
BEFORE
Mark
& Cut
Here
BEFORE
AFTER
b. Apply a small amount of kit Loctite® onto
threads of two factory bolts and install kit
bracket (rear bumper, passenger) and kit
bracket (bumper, spacer) to passenger side
bumper with two factory bolts. DO NOT
TIGHTEN.
c. Repeat above step for driver side.
d. Remove eight factory bolts from O.E. trailer
hitch and frame rails.
Factory
Bolts
Kit Bracket
(Rear
Bumper,
Passenger)
Bumper
Kit Plate
(Rear
Bumper,
Spacer)
Factory
Bolts
O.E.
Trailer Hitch
