TOYOTA 5603 User Manual
Page 20
20
‘05-‘09 Tacoma (W/O Hitch) - 3” Kit 5603

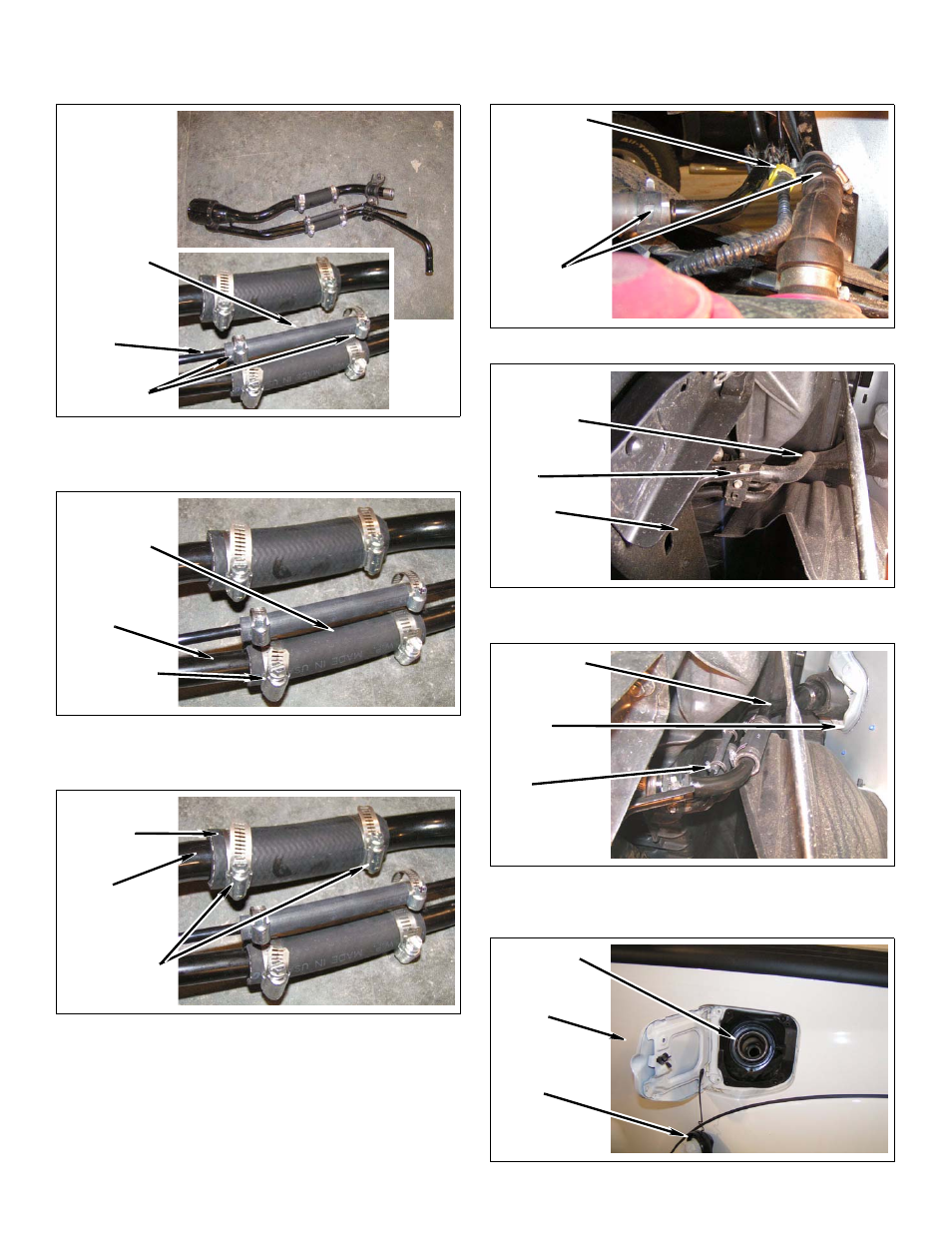

d. Install kit extension (1/4” x 6” hose) between cut
breather tube on fuel filler with two kit clamps
(#6 hose). DO NOT TIGHTEN.
e. Install kit extension (5/8” x 6” hose) between cut
vent tube on fuel filler with two kit clamps (#10
hose). DO NOT TIGHTEN.
f.
Install kit extension (1” x 6” hose) between cut
filler tube on fuel filler with two kit clamps (#20
hose). DO NOT TIGHTEN.
Kit Extension
(1/4” x 6”)
Kit Clamps
(#6 Hose)
Breather
Tube
Kit Extension
(5/8” x 6”)
Kit Clamps
(#10 Hose)
Vent
Tube
Kit Extension
(1” x 6”)
Kit Clamps
(#20 Hose)
Filler
Tube
g. Install fuel filler onto fuel tank with two factory
hose clamps and factory clip. DO NOT
TIGHTEN.
h. Install factory bolt onto frame and fuel filler.
i.
Adjust fuel filler and/or kit extensions (hose) to
body.
j.
TIGHTEN all hardware.
k. Install fuel filler cap.
Vent Hose
Clamp
Fuel Filler
Bolt
Frame
Body
Fuel Filler
Kit
Extensions
Fuel Filler
Cap
Body
Fuel Filler
