10
ANT-1 OUT ANT-2
ANT(75 )
S-VIDEO
L/
MONO
AUDIO
R
VIDEO-2 VIDEO-1
Y
P B
P R
L
Y
P B
P R AUDIO
COLOR
STREAM
HD - 2 COLOR
STREAM
HD - 1
R
L
AUDIO
R
OUT
AUDIO
CENTER
CHANNEL IN
L/
MONO
AUDIO
ON OFF
VIDEO
VAR
AUDIO
L
R R
I N
I N
L
R
DVI / HDCP
IN
IN from ANT OUT to TV
CH 3
CH 4
VIDEO AUDIO
L R
IN
OUT
VIDEO
OUT
S-VIDEO
AUDIO
COMPONENT VIDEO
OUT
L
R
L
R
P R P B Y
Stereo VCR
From antenna
TV
DVD player with component video
Note:
For the highest possible picture quality, use
component video cables (or a DVI-D digital
single-link cable) between the TV and DVD
player.
You can connect component video cables to
either ColorStream jack on the TV (HD1
or HD2).
For DVI/HDCP connection, see page 13.
The ColorStream HD1/HD2 and DVI/HDCP
jacks can be used with Progressive (480p,
720p) and Interlaced (480i,1080i) scan
systems; however, a 1080i signal will provide
the best picture performance.
If your DVD player is not compatible with
component video or DVI/HDCP, use the
S-video connections (plus the standard audio
connections) instead (see page 9).
The unauthorized recording, use, distribution,
or revision of television programs, videotapes,
DVDs, and other materials is prohibited under
the Copyright Laws of the United States and
other countries, and may subject you to civil
and criminal liability.

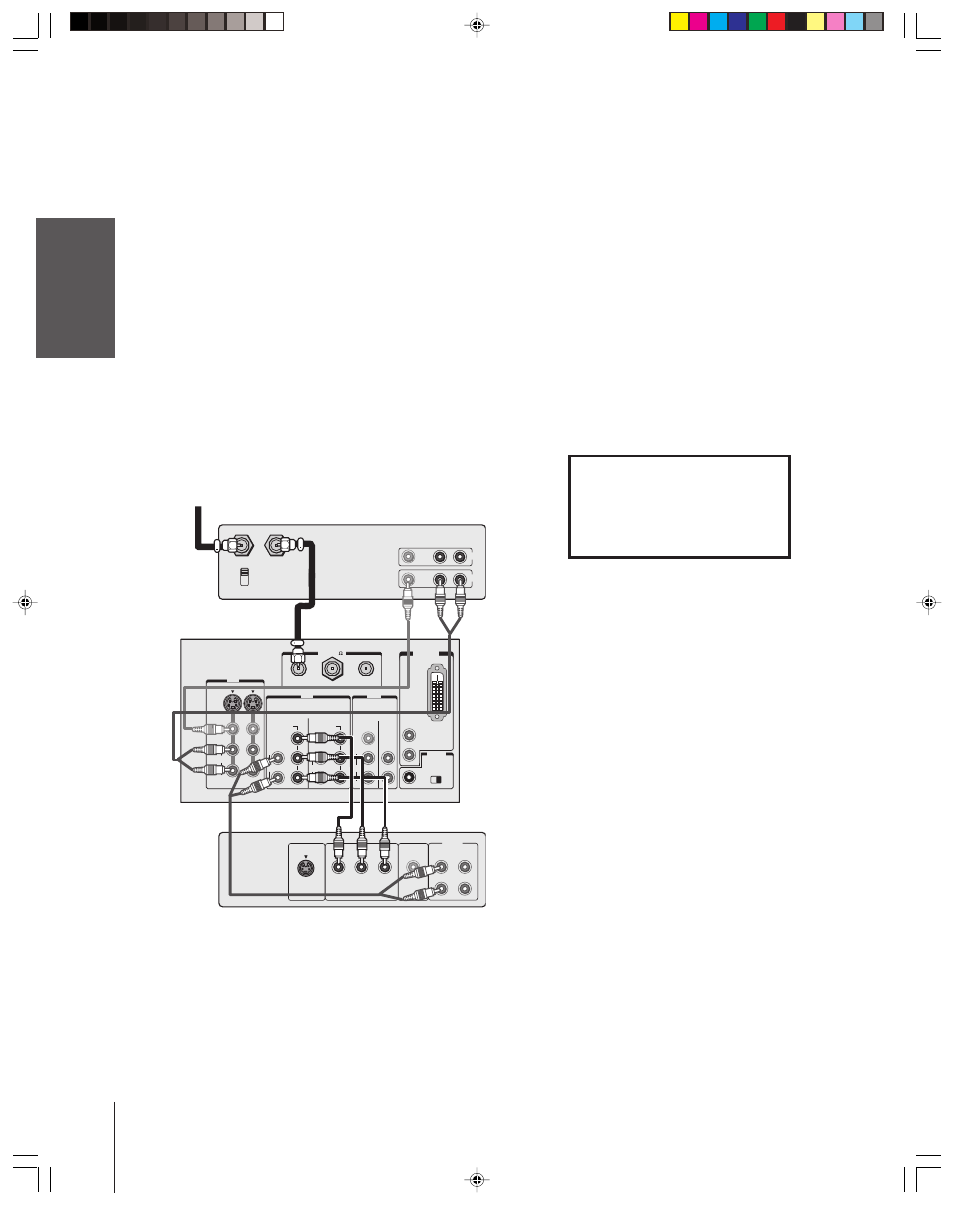

Connecting a DVD player with ColorStream ®
(component video) and a VCR
This connection allows you to watch DVD, VCR, and TV programs,
and record TV programs.
Your TV has ColorStream
® (component video) inputs. Connecting
your TV to a DVD player with component video (such as a Toshiba
DVD player with ColorStream
® ) can greatly enhance picture quality
and realism.
To record one TV program while watching another TV program, tune
the VCR to the channel to record, and tune the TV to the channel to
watch.
To record a TV program while watching a DVD, tune the VCR to the
channel to record, and select ColorStream HD1 on the TV (see
“Selecting the antenna input” on page 25).
You will need:
• two coaxial cables
• one set of standard A/V cables
• one pair of standard audio cables
• one set of component video cables
