Illus. Part
No. No. DESCRIPTION

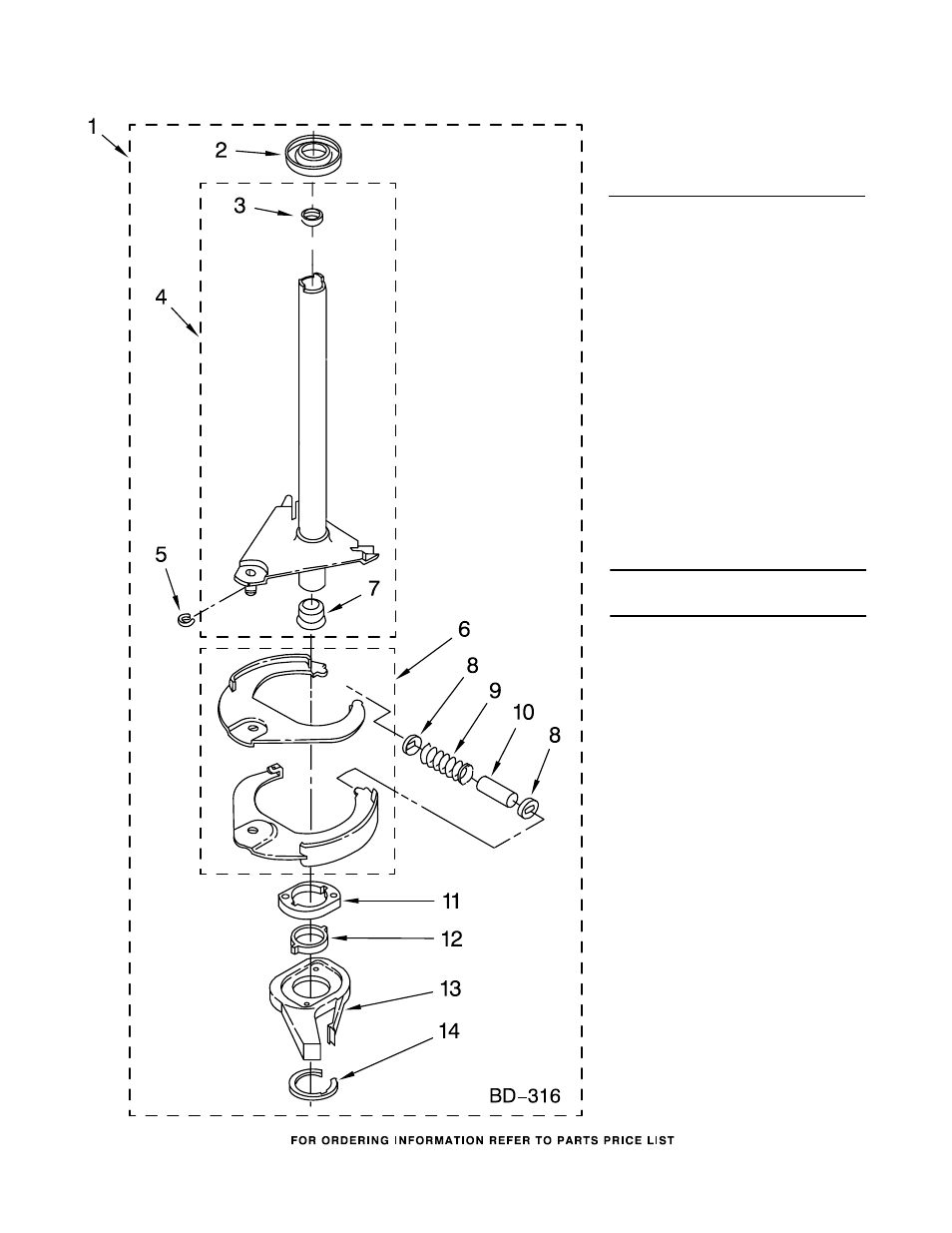

BRAKE AND DRIVE TUBE PARTS
1 W10117003 Brake And Drive
Tube (Complete)
2 62658 Ring, Thrust
3 356427 Seal, Drive Tube
4 W10117001 Tube, Basket
Drive
5 W10083190 Ring, Retaining
6 W10116995 Shoe, Brake (2)
7
8546462 "T" Bearing,
Spin Tube
8 3353956 Cap, Brake
Spring (2)
9 387806 Spring, Brake
10 3355360 Sleeve, Brake
Spring
11 8546461 Cam, Brake
Release
12 63022 Sleeve, Cam
13 64194 Driver, Brake
Cam
14 W10083200 Ring, Retaining
FOLLOWING PARTS
NOT ILLUSTRATED
285208 Lubricant
(Use Only In
Brake Shoe
Assembly On
Roller & Pin)
11
For Model: 3RLSQ8033SW2
(White/Grey)
W10280205
