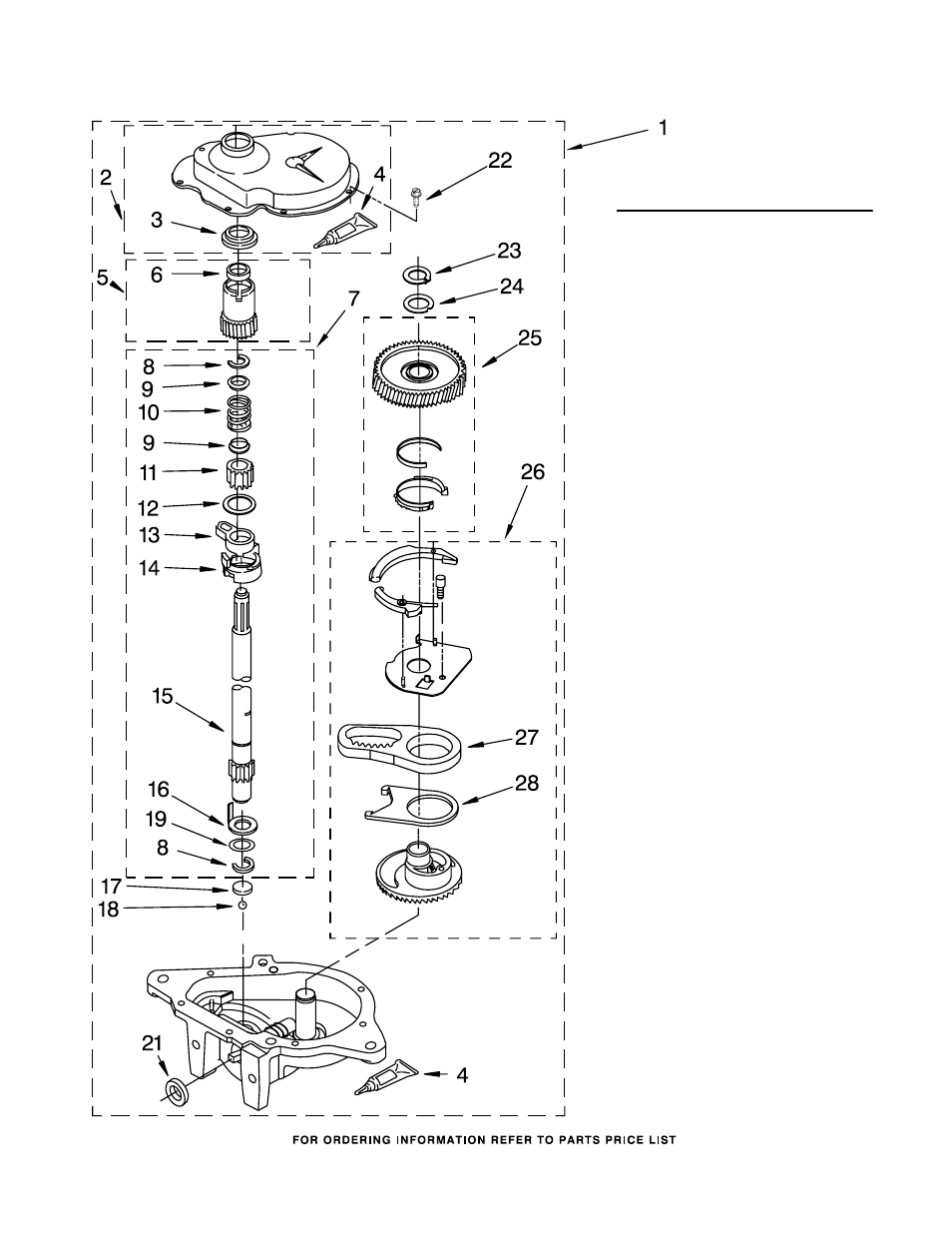

GEARCASE PARTS
Illus. Part
No. No. DESCRIPTION
GC−221
1 W10116916 Gearcase
(Complete)
2 285202 Cover, Gearcase
3 3349985 Seal, Gearcase
Cover
4 285195 Sealer, Gasket
(.20 Fl. Oz.) (6 ml)
5 63320 Pinion, Spin
(Includes Item 25)
6 356427 Seal, Spin
Pinion
7 W10116913 Shaft, Agitator
(Complete)
8 90369 Ring, Retaining (2)
9 62677 Retainer, Spring (2)
10 62676 Spring, Agitate
11 W10110245 Gear, Agitate
(Includes
Items 15 & 19
12 W10080940 Washer, Agitate
Gear
13 62580 Cam Follower
(Includes Item 14)
14 3976349 Cam, Agitate
(Includes Item 13)
15 389231 Shaft, Agitator
16 62618 Washer, Cam
Thrust
17 16018 Bearing, Thrust
(Includes Item 18)
18 85529 Ball, Bearing
(Includes Item 17)
19 W10080950 Washer,
Intermediate
21 285352 Seal, Thrust Plug
22 W10080580 Screw, Gearcase
Cover Mounting (8)
(10−24 x 3/8)
23 3946619 Ring, Retaining
24 285766 Washer Kit,
Thrust
25 63400 Gear, Spin
26 3948434 Neutral Assembly
27 8546456 Rack, Connecting
28 62621 Actuator, Shift
