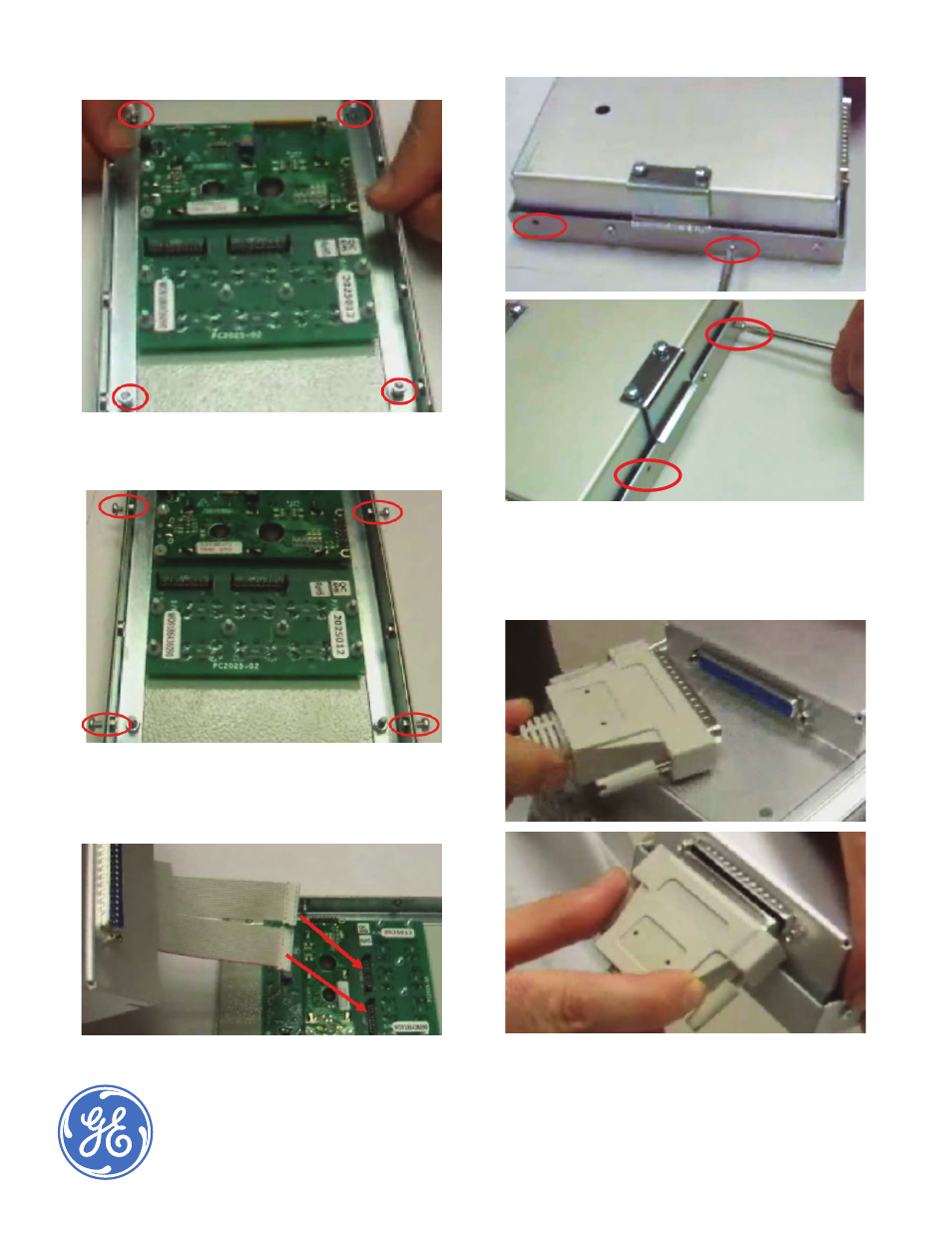

15. Put the front display unit with brackets in the
remote keypad frame and fasten holding nuts.
16. Put and fully fasten 4 screws.
17. Connect 2 fl at cable connectors from remote
keypad box (Item B) to display unit.
18. Fasten 4 screws holding keypad unit to the box.
19. Install the power module and remote keypad
and connect the cable. Connect cable (Item A)
between control module and power module.
