GEH-6253 Installation Instructions
Figure 4 shows how the Power Supply Assembly is used in a typical MicroVersaTrip
®
PM system. Figure 5 shows
how the Power Supply Assembly is used in a typical MicroVersaTrip
®
Plus system. The microEntelliGuard
TM
Trip Unit
can be used with either configuration, i.e. Figure 4 or Figure 5. The connection diagram shown in Figure 5 applies
to microEntelliGuard
TM
Trip Units with Basic Metering.

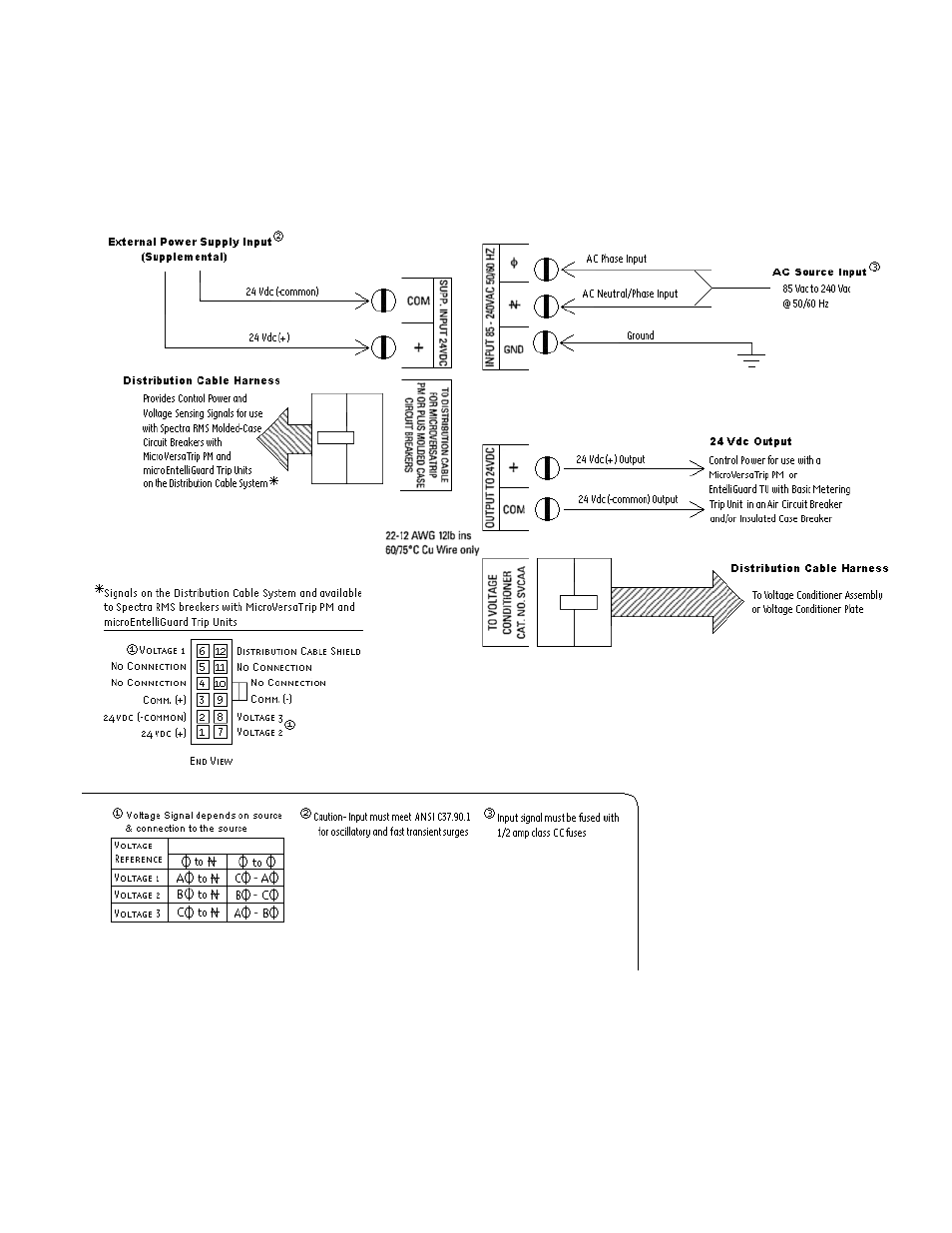

Figure 4. Wiring connections to the Power Supply Plate for a typical MicroVersaTrip
®
PM System.
