SK-2487RR REV 2 02/01/2013
2007-2011 CHEVROLET
TAHOE/YUKON
(WITH AUTORIDE) FRONT SHOCK
ABSORBER REPLACEMENT
*Removal and installation is only to be performed by full qualified personnel.
*CAUTION: Damage to the vehicle and shock assembly can be incurred if work is
carried out in a manner other than specified in the instructions or in a different
sequence.
Always use a chassis hoist for the installation of Arnott Inc. products and make
certain that the raised vehicle is securely attached to the hoist and /or supported
to prevent the vehicle from slipping, falling or moving during the installation
process.
FRONT SHOCK ABSORBER/COIL SPRING REMOVAL/INSTALLATION:
NOTE:

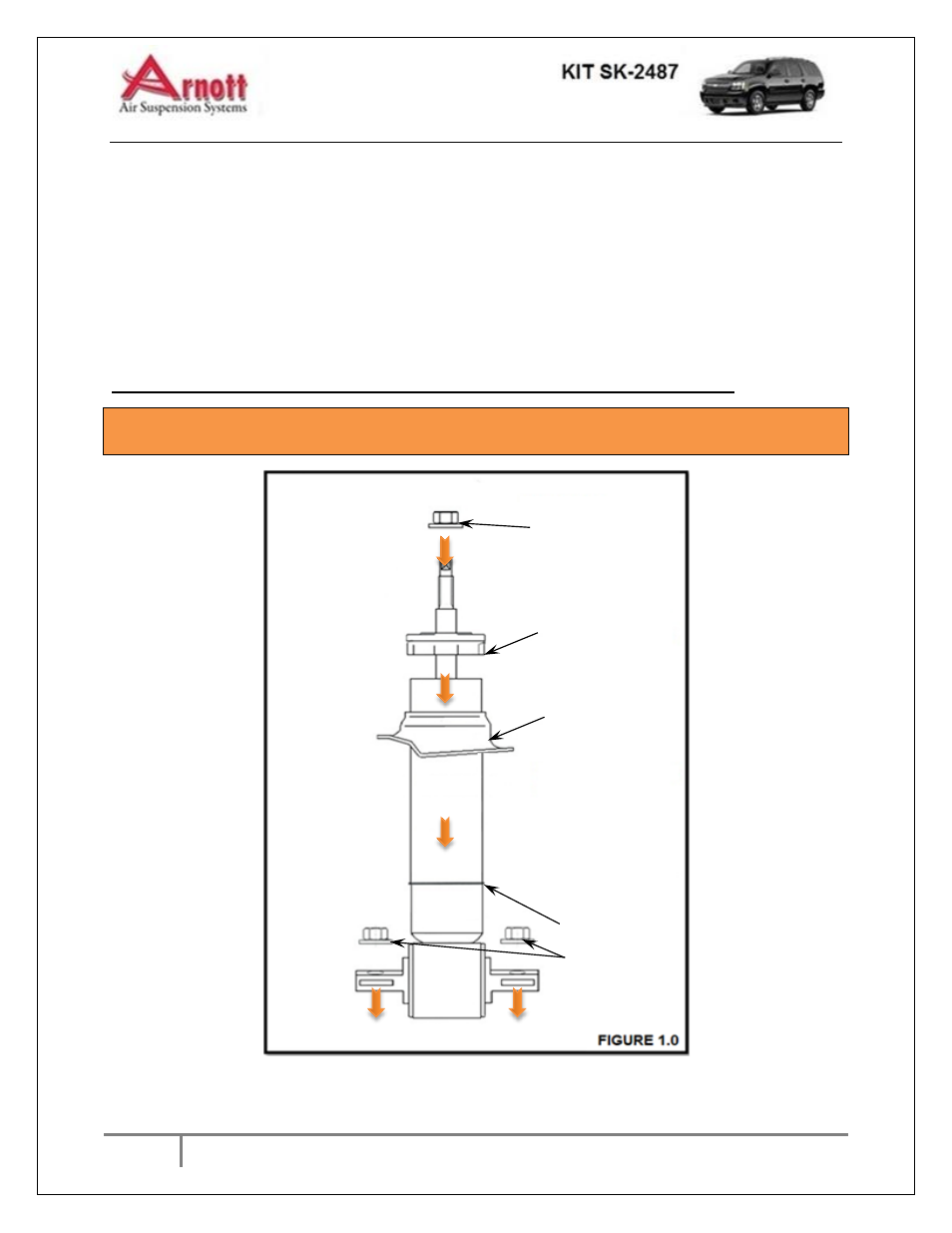

REFER TO FIGURE 1.0 SHOCK ABSORBER ASSEMBLY FOR PART
LOCATION/IDENTIFICATION
FLANGE NUT
(SUPPLIED)
BUMP STOP
CAP (SUPPLIED)
OEM SPRING
SEAT
CIRCLIP
FLANGE NUT
(SUPPLIED)
