2007-2011 CHEVROLET
TAHOE/YUKON
(WITH AUTORIDE) FRONT SHOCK
ABSORBER REPLACEMENT
11.0 Re-install front tire(s). Torque front wheels to manufactures specifications.
12.0 Check and adjust vehicle front-end alignment after installation.
13.0 Installation complete.

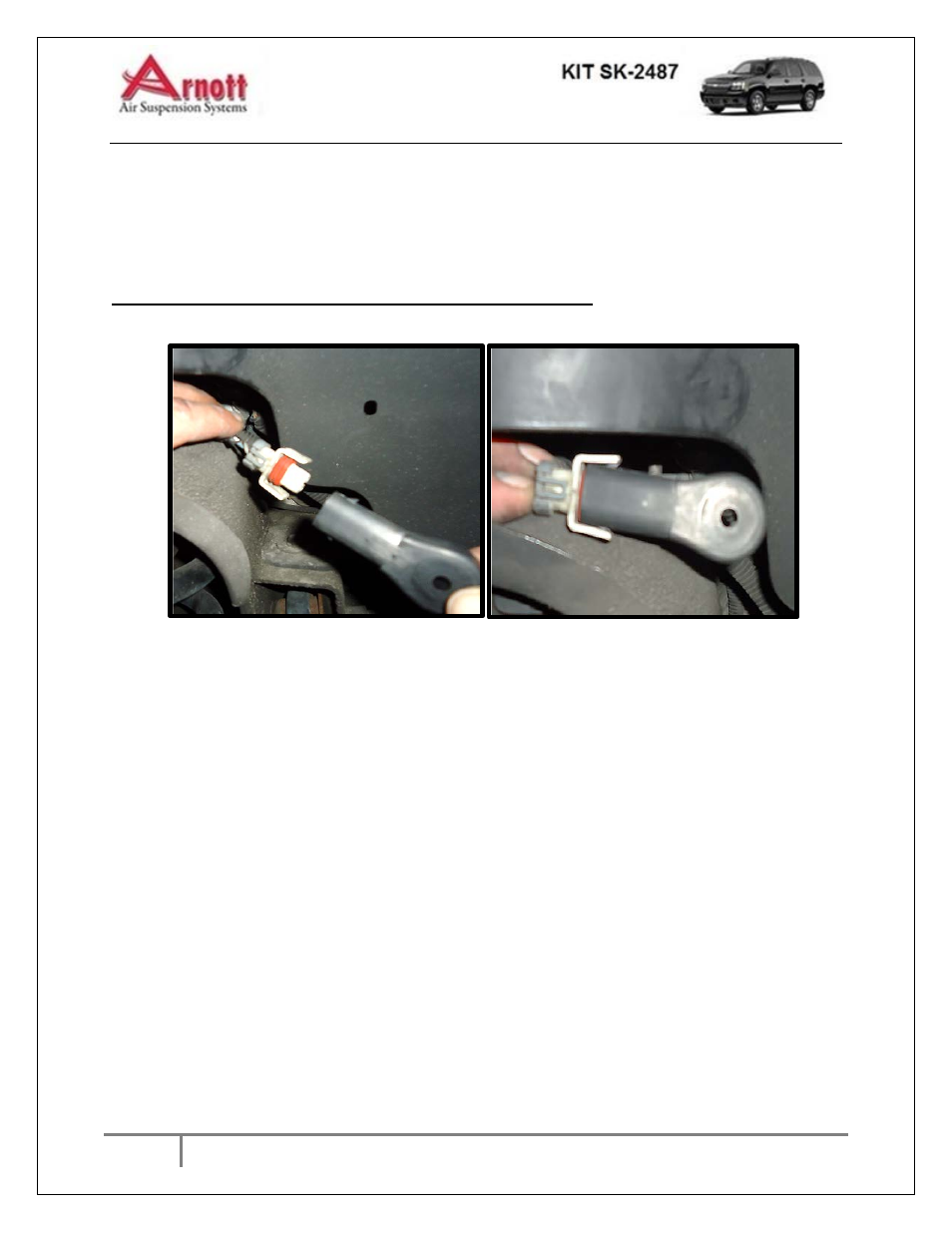

FRONT SHOCK ABSORBER SENSOR INSTALLATION:
FIGURE 1
FIGURE 2
1
1.0
Locate the damping sensor lead.
2.0
Disconnect the angle adapter that connected the shock to the sensor lead.
3.0
Connect the supplied coil as shown in Figure 1.
4.0
Secure the coil and harness in a way not to interfere with any moving parts
or components with excessive heat.
