ZXRE1004
ZXRE1004
Document number: DS32172 Rev. 4 - 2
4 of 5
www.diodes.com
June 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
Ordering Information
(*)
Order
Reference
Tol
(%)
Package
Device
Mark
Status (*)
Reel Size
(inches)
Quantity
per reel
Tape Width
(mm)
ZXRE1004CFTA 0.5 SOT23 10D Obsolete 7 3000 8
ZXRE1004DFTA 1 SOT23 10C Released 7 3000 8
ZXRE1004EFTA 2 SOT23 10B NRND 7 3000 8
ZXRE1004FFTA 3 SOT23 10A Released 7 3000 8
Notes: *All ZXRE1004xR variants (E-Line) are obsolete.
NRND = Not Recommended for New Designs
For tape and reel options add suffix TA to the part number eg ZXRE1004DFTA

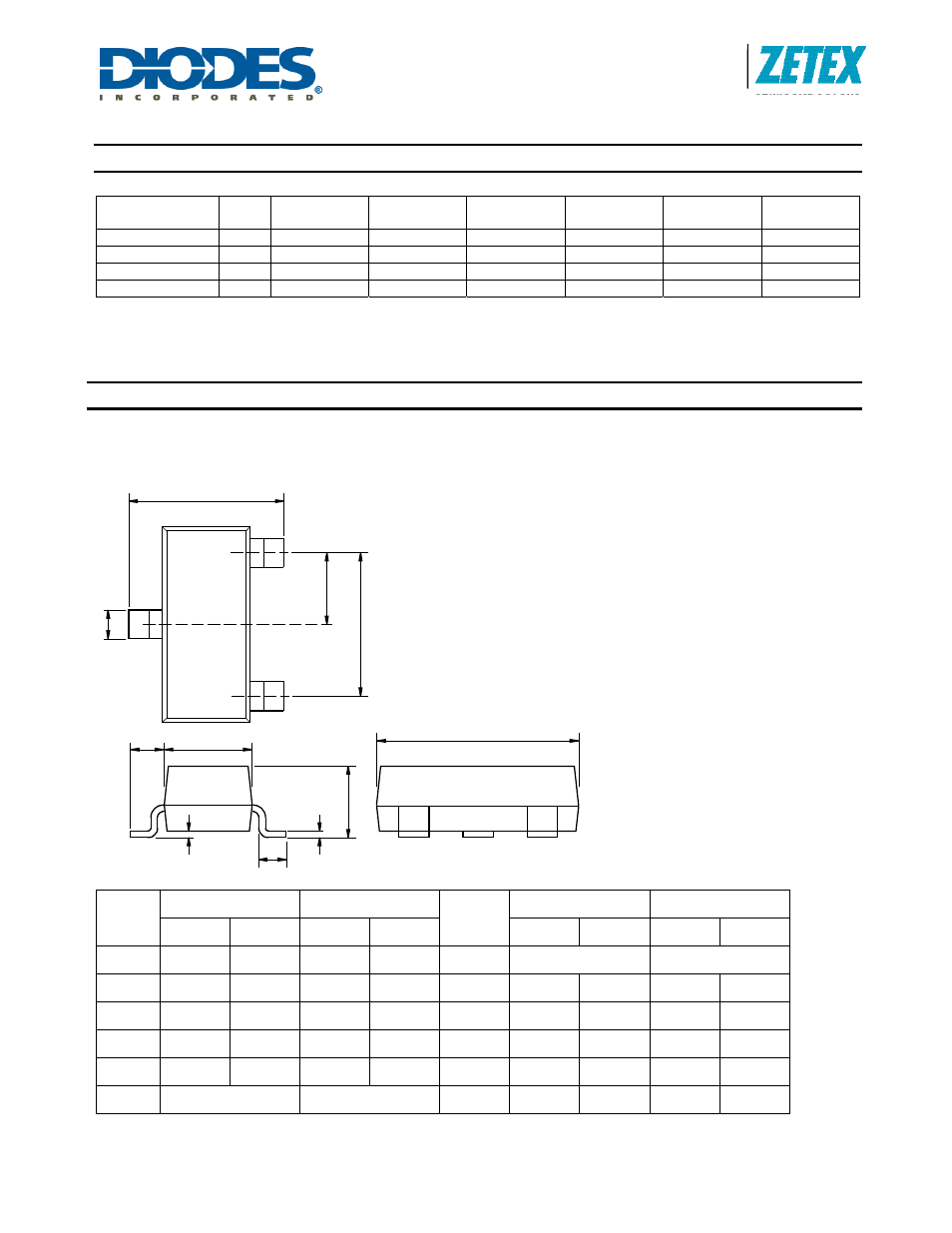

Package Outline Dimensions
SOT23
E
e
L
e1
D
A
c
E1 L1
A1
b
3 leads
Dim. Millimeters Inches Dim. Millimeters Inches
Min. Max. Min. Max. Min. Max. Min. Max.
A - 1.12 - 0.044 e1 1.90 NOM 0.075 NOM
A1 0.01 0.10 0.0004 0.004 E 2.10 2.64 0.083 0.104
b 0.30 0.50 0.012 0.020 E1 1.20 1.40 0.047 0.055
c 0.085 0.20 0.003 0.008 L 0.25 0.60 0.0098 0.0236
D 2.80 3.04 0.110 0.120 L1 0.45 0.62 0.018 0.024
e 0.95 NOM 0.037 NOM - - - - -
Note: Controlling dimensions are in millimeters. Approximate dimensions are provided in inches
