CA
P
A
CIT
A
NCE (
p
F
)
V , REVERSE VOLTAGE (V)
R
1
10
100
0.1 1 10 100

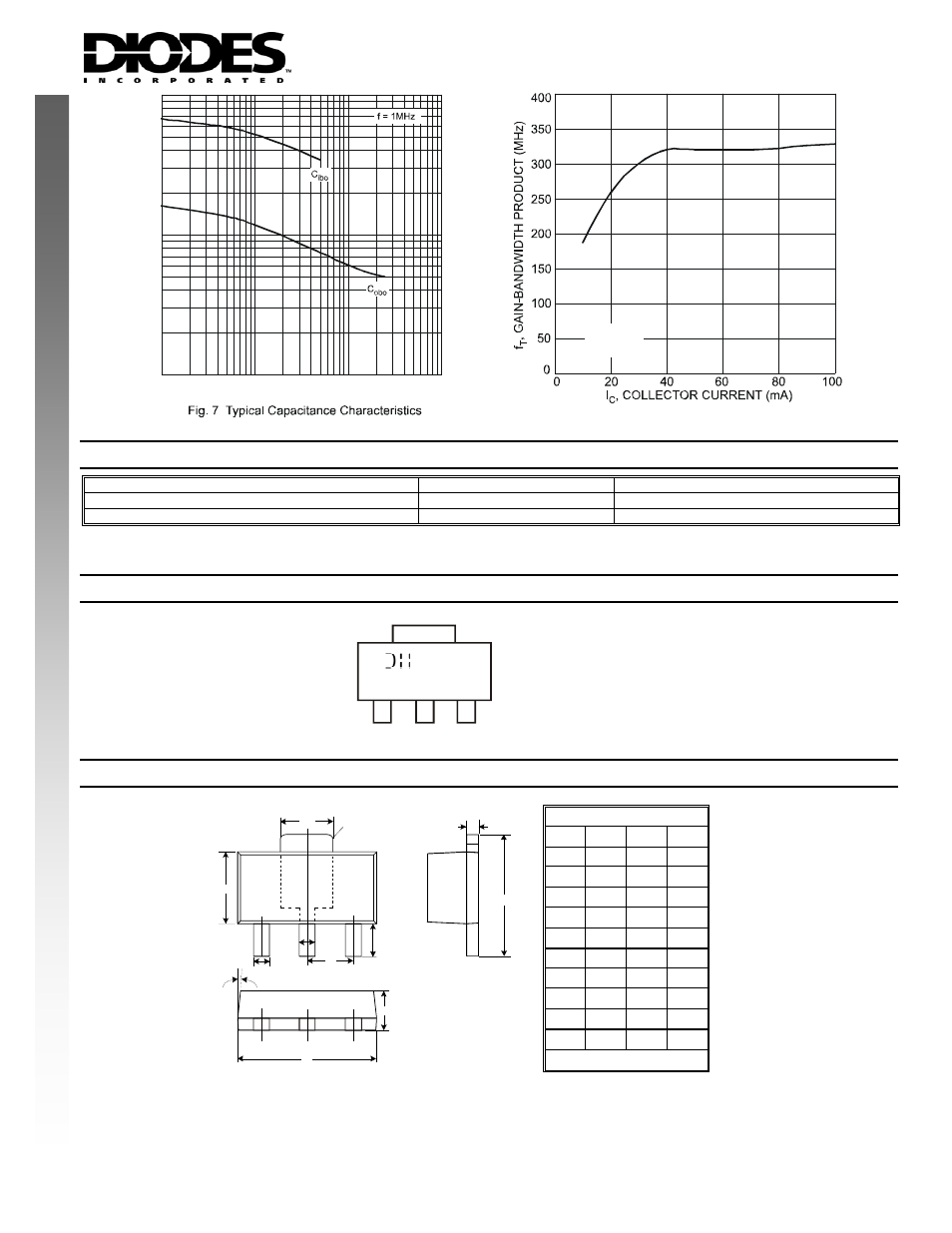

Fig. 8 Typical Gain-Bandwidth Product vs. Collector Current
V = 5V
f = 100MHz
CE
NEW PRODUCT
Ordering Information
(Note 5)
Device Packaging Shipping
DCX68-13 SOT89-3L 2500/Tape & Reel
DCX68-25-13 SOT89-3L 2500/Tape & Reel
Notes: 5. For packaging details, go to our website at http://www.diodes.com/ap02007.pdf.
Marking Information
xxx
YWW
(Top View)
xxx = Product Type Marking Code:
N12 = DCX68
N12-25 = DCX68-25
YWW = Date Code Marking
Y = Last digit of year ex: 7 = 2007
WW = Week code 01 - 52
Package Outline Dimensions
SOT89-3L
Dim Min Max Typ
A 1.40 1.60 1.50
B 0.45 0.55 0.50
B1 0.37 0.47 0.42
C 0.35 0.43 0.38
D 4.40 4.60 4.50
D1 1.50 1.70 1.60
E 2.40 2.60 2.50
e — — 1.50
H 3.95 4.25 4.10
L 0.90 1.20 1.05
All Dimensions in mm
e
D
H
L
A
C
E
8° (4
X)
B1
B
D1
R 0.
20
0
DS31163 Rev. 4 - 2 3 of 4
