APT17
Datasheet Number: DS36298 Rev.2 - 2
2 of 5
www.diodes.com
August 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
APT17
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Collector-Emitter Voltage (V
BE
= 0V) V
CES
700 V
Collector-Emitter Voltage V
CEO
480 V
Emitter-Base Voltage V
EBO
10 V
Continuous Collector Current I
C
50 mA
Peak Pulse Collector Current I
CM
100 mA
Continuous Base Current I
B
25 mA
Peak Pulse Base Current I
BM
50 mA
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Power Dissipation
For TO92
P
D
0.5
W
For SOT23 0.2
Thermal Resistance, Junction to Ambient Air
For TO92
R
θJA
250
°C/W 
For SOT23 625
Operating and Storage Temperature Range T
J,
T
STG
-55 to +150 °C
ESD Ratings
(Note 5)
Characteristic Symbol Value Unit JEDEC Class
Electrostatic Discharge - Human Body Model ESD HBM ≥ 8,000 V 3B
Electrostatic Discharge - Machine Model ESD MM ≥ 400 V C
Note: 5. Refer to JEDEC specification JESD22-A114 and JESD22-A115.

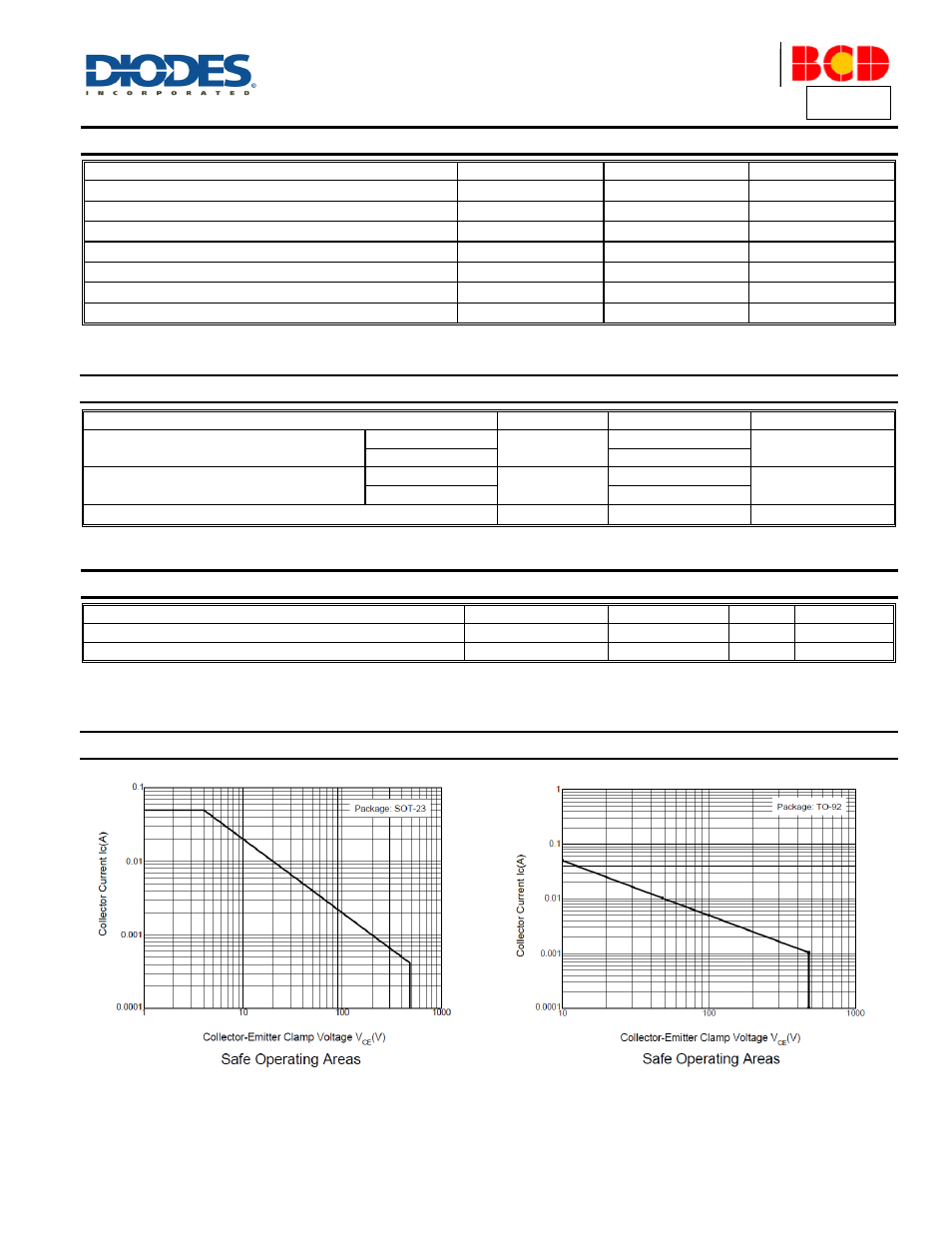

Safe Operating Area
(@T
A
= +25°C, unless otherwise specified.)
