74AUP1G126

Document number: DS35158 Rev. 2 - 2

2 of 15

www.diodes.com

July 2013

© Diodes Incorporated

74AUP1G126

Pin Descriptions

Pin Name

Function

OE Output

Enable

A Data

Input

GND Ground

Y Data

Output

V

CC

Supply Voltage

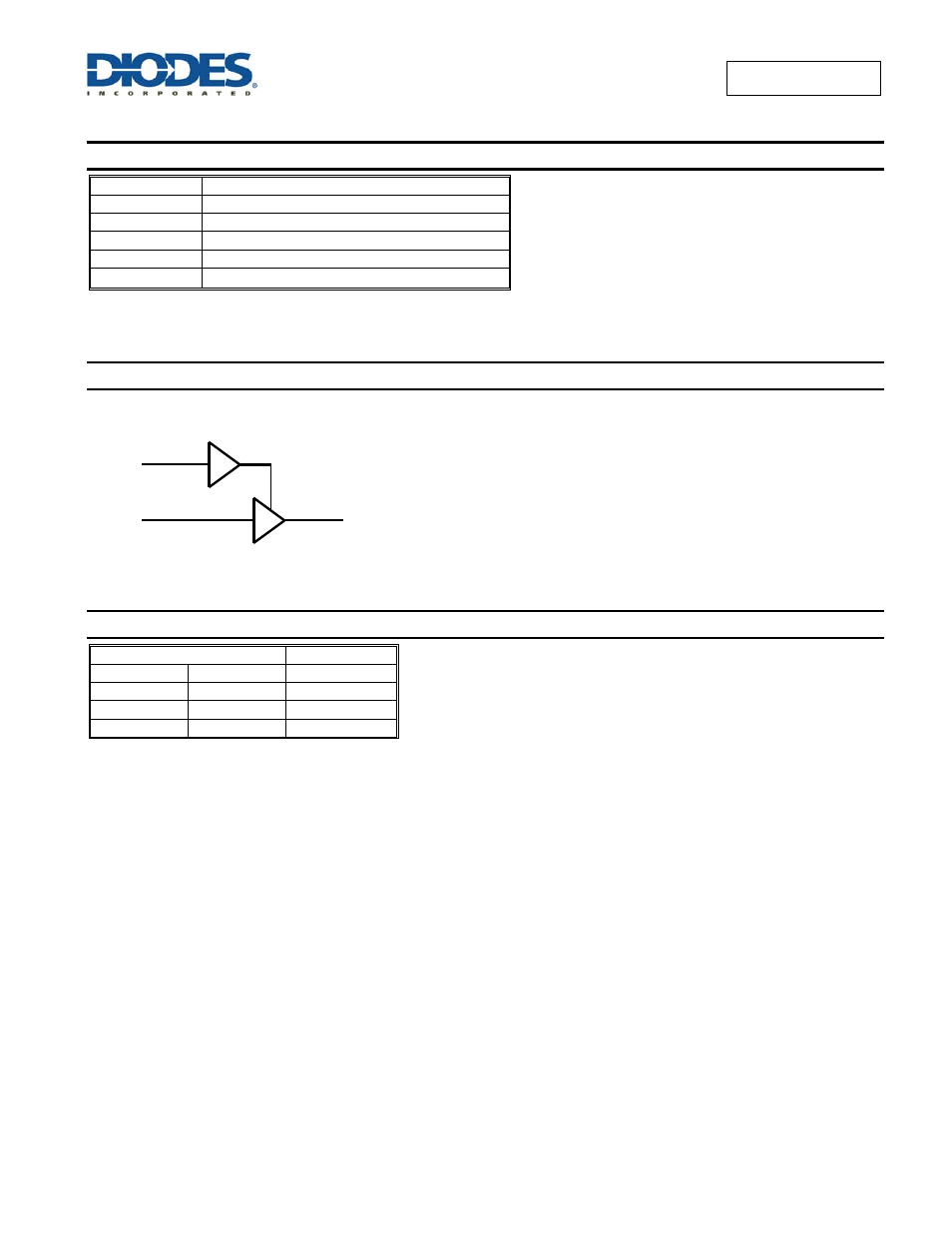

Logic Diagram

Function Table

Inputs Output

OE A

Y

H H H

H L L

L X Z

1

2

4

A

OE

Y
