DFLS130LQ

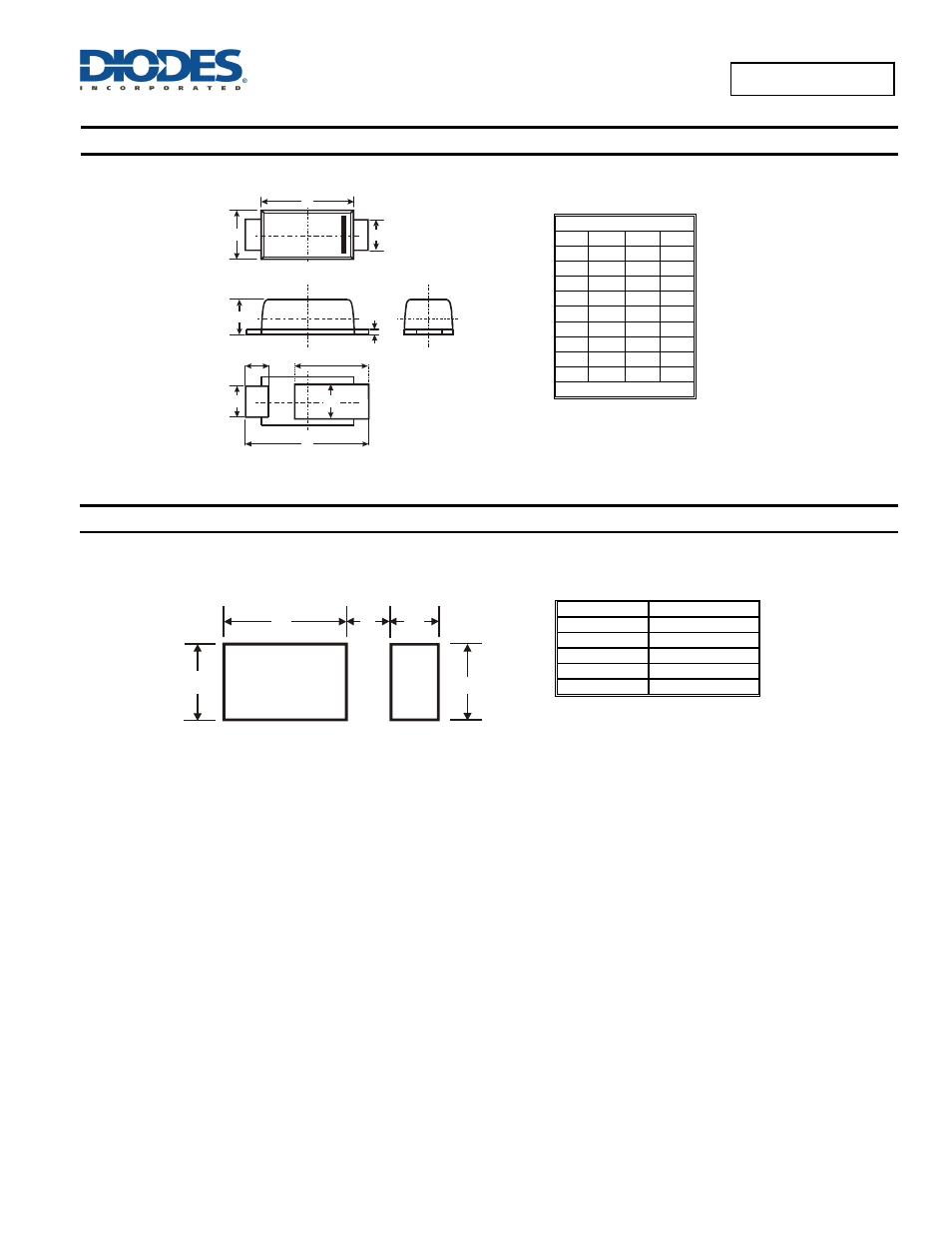

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
PowerDI ® 123
Dim Min Max Typ
A 3.50 3.90 3.70
B 2.60 3.00 2.80
C 1.63 1.93 1.78
D 0.93 1.00 0.98
E 0.85 1.25 1.00
H
0.15 0.25 0.20
L 0.55 0.75 0.65
L1 1.80 2.20 2.00
L2 0.95 1.25 1.10
All Dimensions in mm
Dimensions Value (in mm)
G 1.0
X1 2.2
X2 0.9
Y1 1.4
Y2 1.4
X1 G X2
Y2
Y1
A
E
L L1
B
C E
L2
H
D
