FZT605
Document number: DS33147 Rev. 5 - 2
6 of 7
April 2013
© Diodes Incorporated
FZT605
A Product Line of
Diodes Incorporated

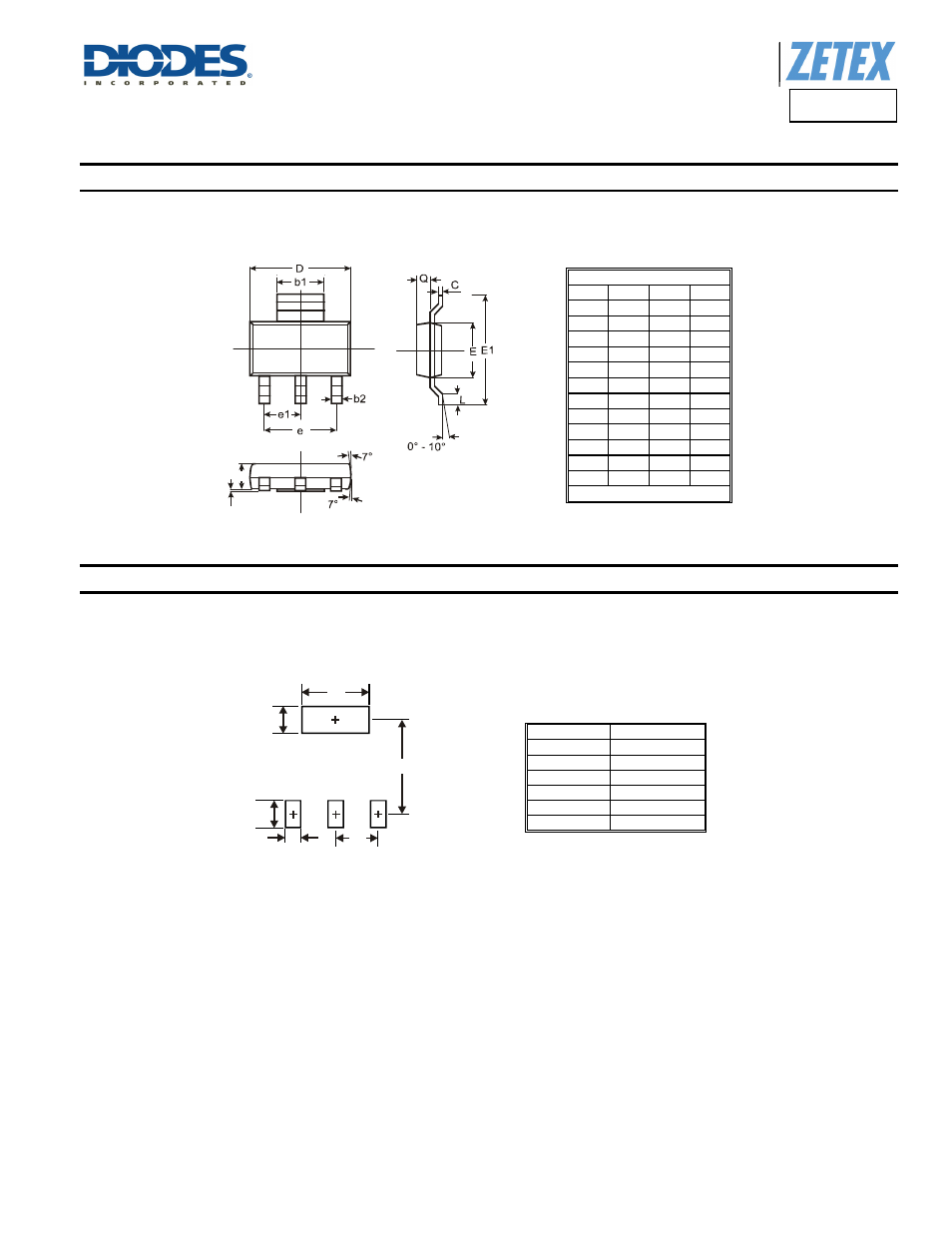

Package Outline Dimensions
Suggested Pad Layout
For high voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between device
terminals and PCB tracking.
SOT223
Dim Min Max Typ
A 1.55
1.65
1.60
A1 0.010 0.15 0.05
b1 2.90 3.10 3.00
b2 0.60 0.80 0.70
C 0.20
0.30
0.25
D 6.45
6.55
6.50
E 3.45
3.55
3.50
E1 6.90 7.10 7.00
e — —
4.60
e1 — — 2.30
L 0.85
1.05
0.95
Q 0.84
0.94
0.89
All Dimensions in mm
Dimensions Value (in mm)
X1
3.3
X2
1.2
Y1
1.6
Y2
1.6
C1
6.4
C2
2.3
A1
A
X2
C1
C2
X1
Y2
Y1
