NIS5132
Document number: DS36457 Rev. 1 - 5
10 of 11
December 2013
© Diodes Incorporated
NEW PROD
UC
T
NIS5132

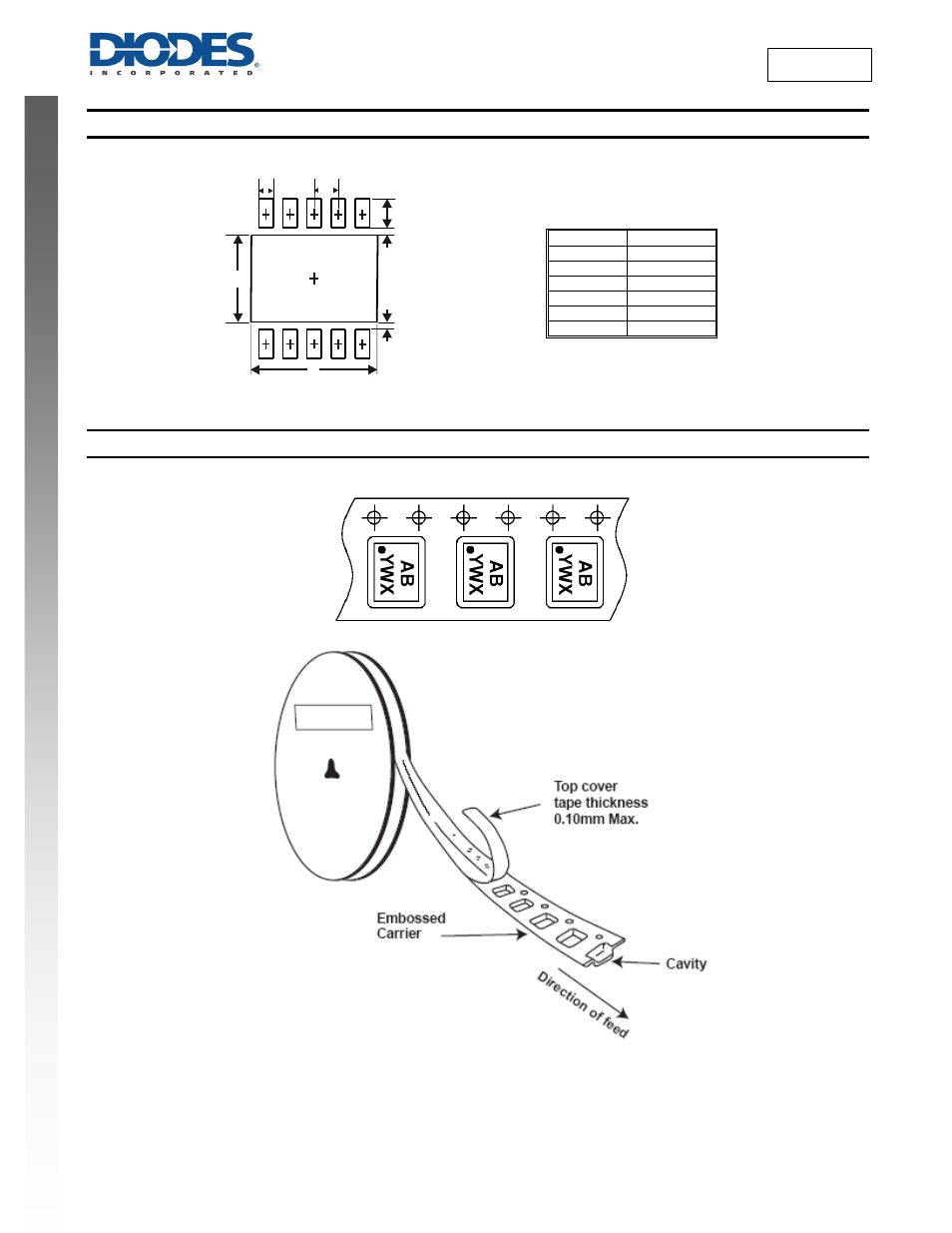

Suggested Pad Layout
(1) Package Type: U-DFN3030-10
Taping Orientation
(1) Package Type: U-DFN3030-10
Note: 11. The taping orientation of the other package type can be found on our website
Dimensions Value (in mm)
Z
2.60
G
0.15
X
1.80
X1
0.60
Y
0.30
C
0.50
C
Y
Z
X
X1
G
G
