Transducer
Page:2 of 5
No. Item Unit Specifications
1 Rated Impedance ohm 8 20%
2 Rated(Max.)Power W 0.15(2.0)
3 Sound Output at 10cm,0.25w 1.5KHz dB Min.83
4 Resonance Frequency Hz 1100 150
5 Rated Freq.Range Hz 700~4000
6 Operating Temp. C -20...+60
7 Storage Temp. C -20...+60
8 Weight g 11
1.Technical Terms

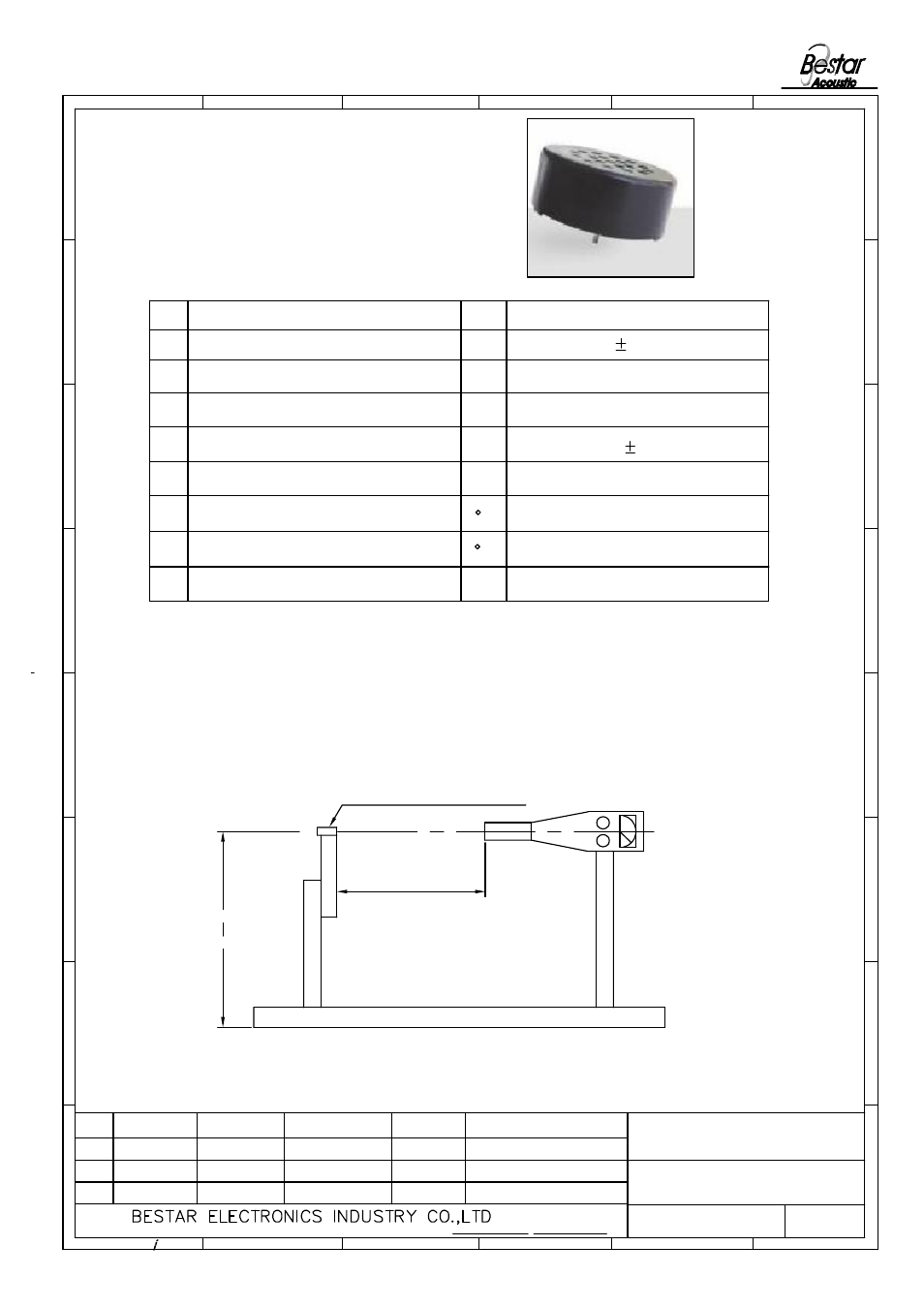

★ Standard Output Measurement Setup
Sound Transducer
100mm
4
0
0
mm
高 正
王善梅
