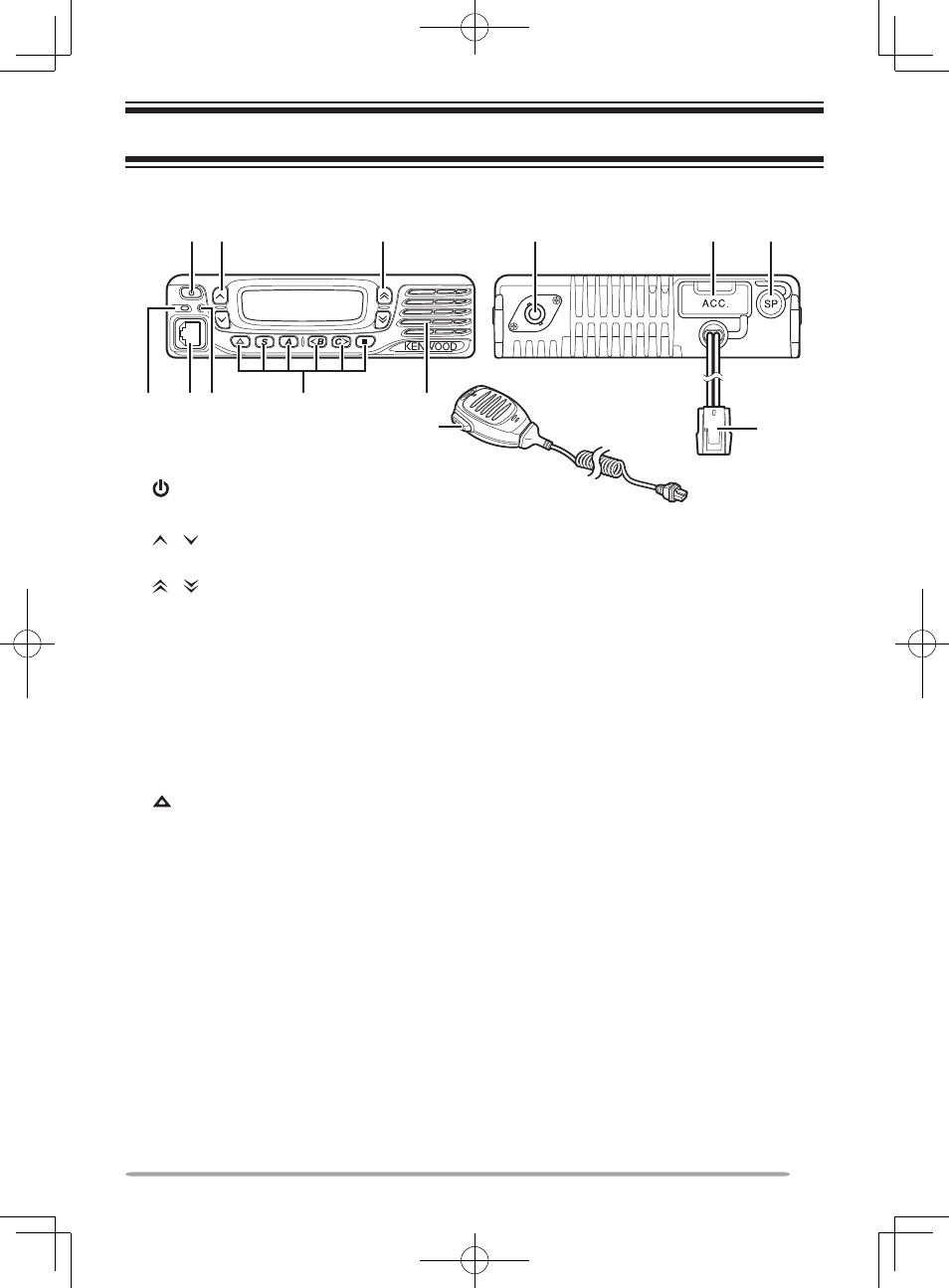

GETTING ACQUAINTED

F

ront

And

r

eAr

V

iewS

① (Power) switch

Press to switch the transceiver ON or OFF.

② / keys

Press to activate their programmable functions {page 5}.

③ / keys

Press to activate their programmable functions {page 5}.

④ TX/RX Indicator

Lights red while transmitting and green while receiving a signal. Flashes

orange when receiving an optional signaling call.

⑤ Microphone jack

Insert the microphone plug into this jack.

⑥ Status Indicator

Lights blue during a specified mode, based on dealer programming.

⑦ / S / A / <B / C> / n keys

Press to activate their programmable functions {page 5}.

⑧ Speaker

Internal speaker.

⑨ PTT switch

Press this switch, then speak into the microphone to call a station.

⑩ Antenna connector

Connect the antenna to this connector.

⑪ ACC connector

Connect the ACC to this connector, via the KCT-60.

⑫ External speaker jack

Connect an external speaker to this jack.

⑬ Power input connector

Connect the DC Power Cable to this connector.
