95-7320 DASH DISASSEMBLY
HYUNDAI SONATA 2006-2008
1
D isconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Open glove box and remove (2)
Phillips screws from top edge of
glove box opening and bottom edge
of wood trim below radio.

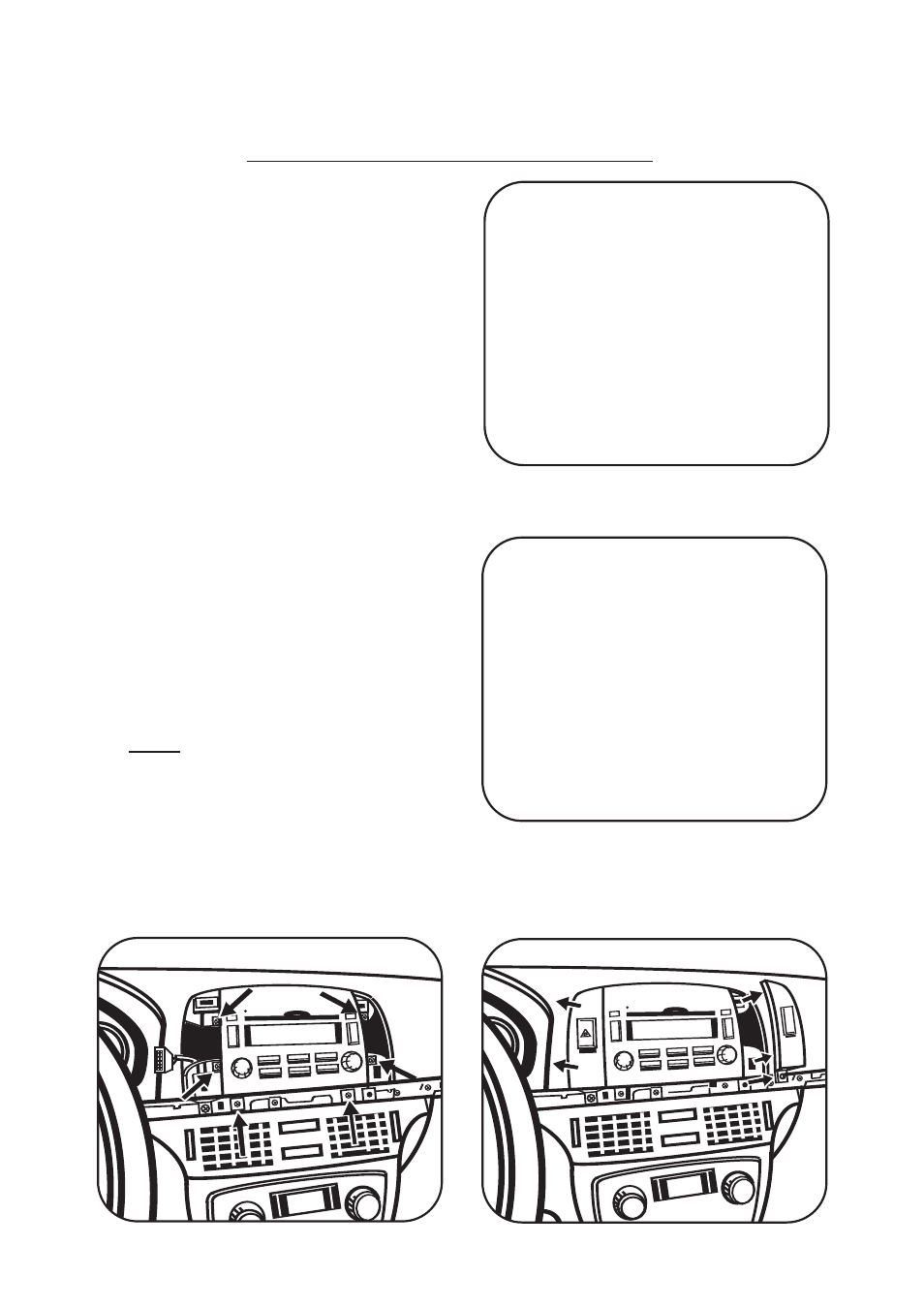

(Figure A)
2
Unclip and remove wood trim from
below radio and above glove box.
(Figure B) 3
Remove (1) Phillips screw securing
each side panel next to radio then
unclip and remove the panels.
(Figure C) 4
Remove (6) Phillips screws securing
the radio. Unplug and remove the
radio.
(Figure D)
5
NOTE: There is a factory support
bracket in the bottom of the radio
cavity that may need to be pushed
out of the way for the aftermarket
radio to fit properly.
Continue to kit assembly.
