Attaching the front speakers
base
Before connecting the front speakers, attach it to
the supplied base.
Note
Spread a cloth on the floor to avoid damaging the floor.
1
Remove the front speaker with the
cushion from the carton.

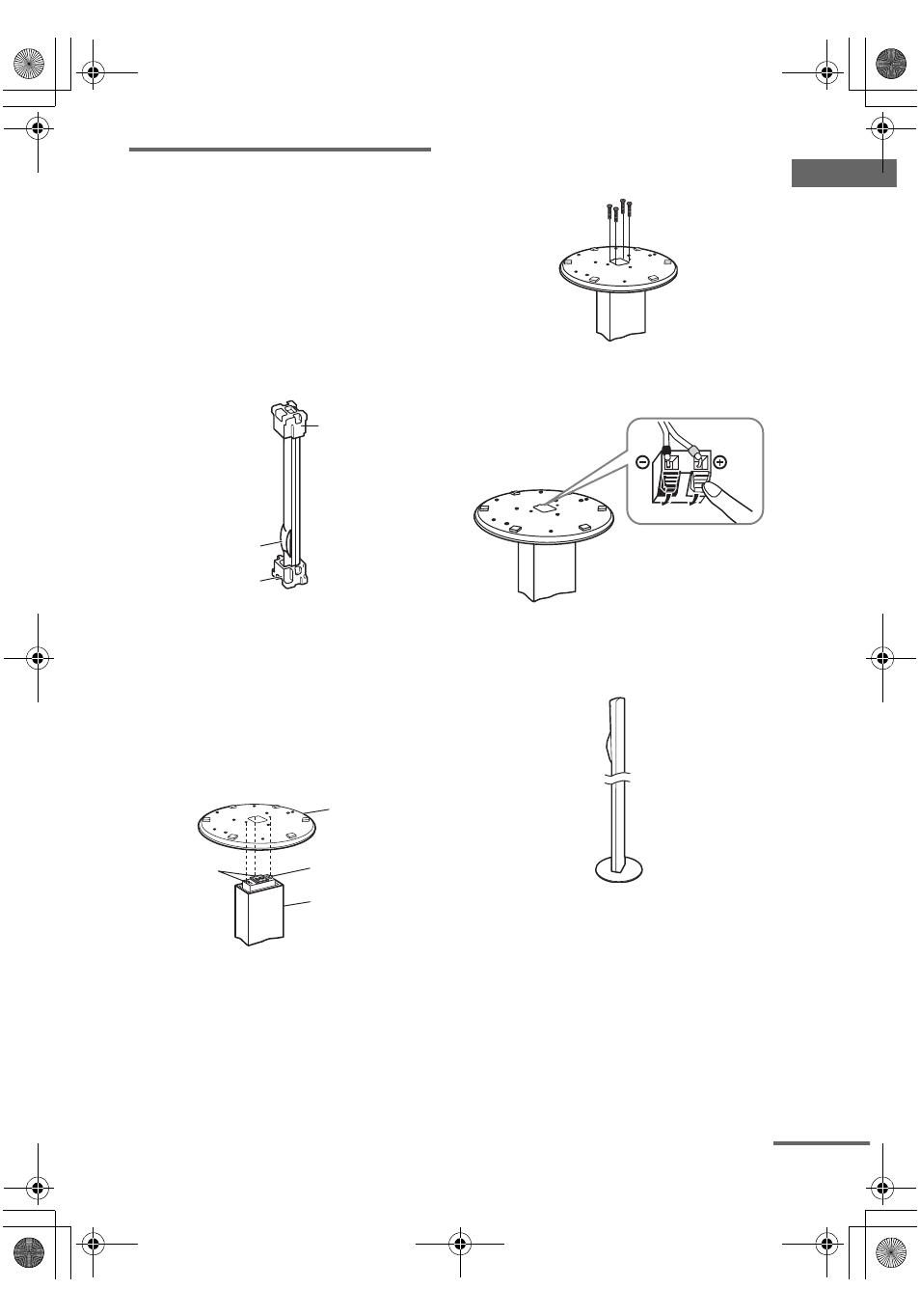

Place TOP cushion and the top portion of
the speaker on the floor as shown below.
Notes
• Be sure to hold the speaker firmly.
• You can see TOP on the cushion.
2
Remove the BOTTOM cushion from the
speaker. Attach the base on the
speaker properly.
Use the guide on the speaker to align the
hole on the base.
3
Secure the base to the speaker with the
supplied screws.
4
Connect the speaker cords to the
speaker terminals.
5
Place the speaker base on the floor and
remove the TOP cushion from the
speaker.
Top portion
TOP cushion
BOTTOM
cushion
Base
Guide
Speaker
Guide
continued
