ENGINEERING CHANGE ORDER #751
MODELS
AFFECTED:
POWERPAC 300*
SUBJECT:
MODIFYING REMOTE BOARD AND USING A NEW STANDOFF
ISSUE DATE
ENGINEER(s)
PRIORITY STARTING SERIAL No.
30-Apr-04 FN
1
DETAILED DESCRIPTION of, and REASONS for, CHANGE
DUE TO MECHANICAL PROBLEM IN ORDER TO HOLD REMOTE BOARD TO INLET BOARD
COMPLETELY TIGHT, WE NEED TO MODIFY REMOTE BOARD BY DRILLING OUT A HOLE
FOR SCREW #4 AND CUT ON THE BOTTOM TRACE TOWARD C404 CAPACITOR, THEN IN
MECHANICAL ASSEMBLY INSERT A MALE STANDOFF 1945 INTO BACK OF ONE OF THE
INLET BOARD STANDOFFS AND USE SCREW #4 TO TIGHT FROM BOTTOM OF REMOTE
BOARD INTO FEMALE SIDE OF ABOVE STANDOFF.
DOCUMENTS :
DOCUMENT NAME
DOCUMENT DESCRIPTION
ENGR(s)
STATUS

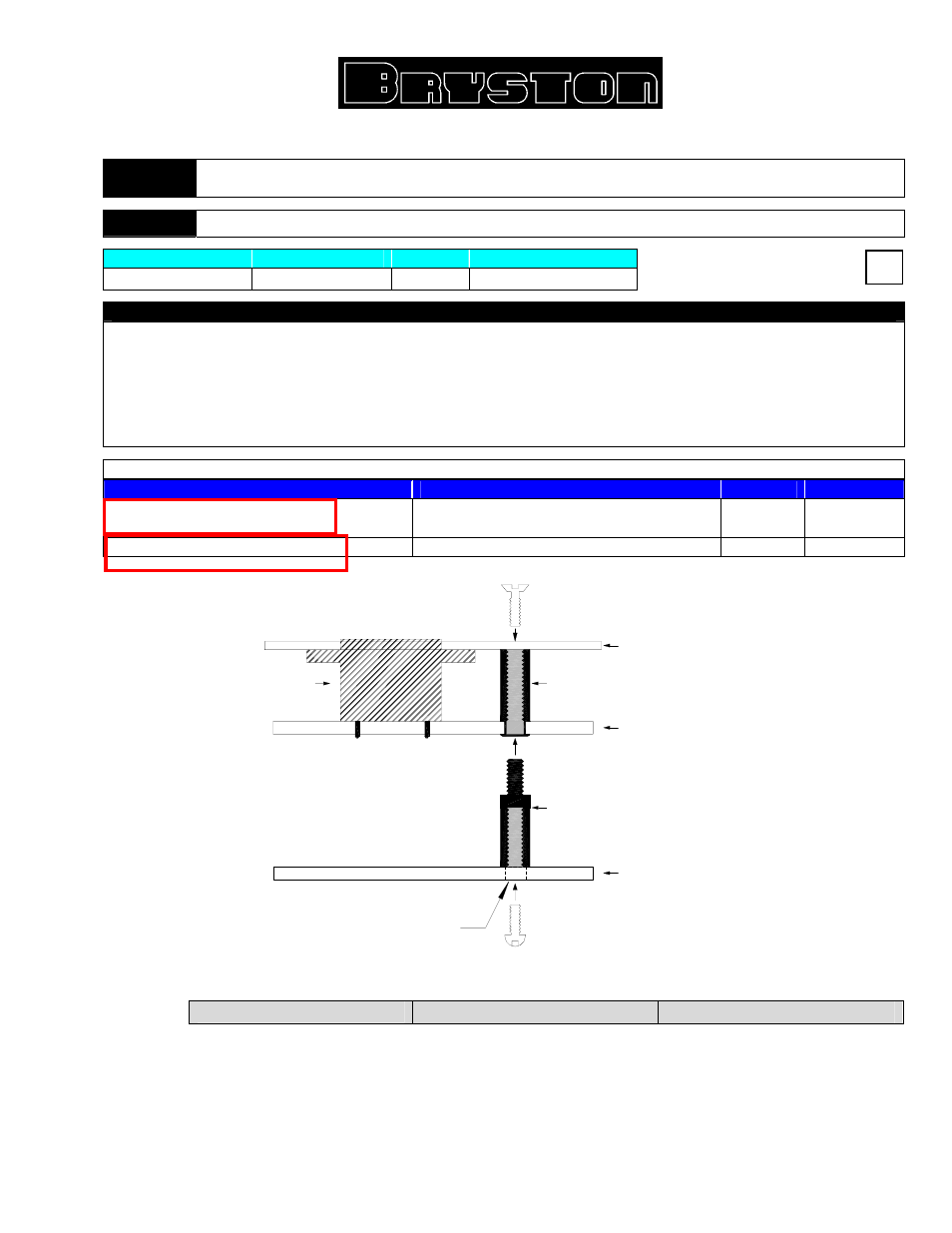

ECO-751_1
MECHANICAL ASSEMBLY DIAGRAM FOR
REMOTE AND INLET BOARDS
FN COMPLETE
ECO-751_2
ASSEMBLY INSTRUCTION OF REMOTE BOARD
FN
COMPLETE
ENGINEERING
PURCHASING
PRODUCTION
IS A SAFETY STANDARDS RE-
EVALUATION REQUIRED (Y/N)?
(See foot note)
Y
#4-40 3/16"L
Flat Head
UnderCut
Swaged standoff
Threaded 4-40
Front/Top Panel
Inlet Board
Remote Board
#1945
Threaded 4-40 plus 4-40 post
Nickel over brass standoff
#4-40 1/4"L
Pan Head
IEC320
Power Inlet
NEW
This mounting hole for
the #1945 standoff
does not exist in the
current Remote Board
and must, therefore, be
drilled out.
