TA 230 Litronic 13

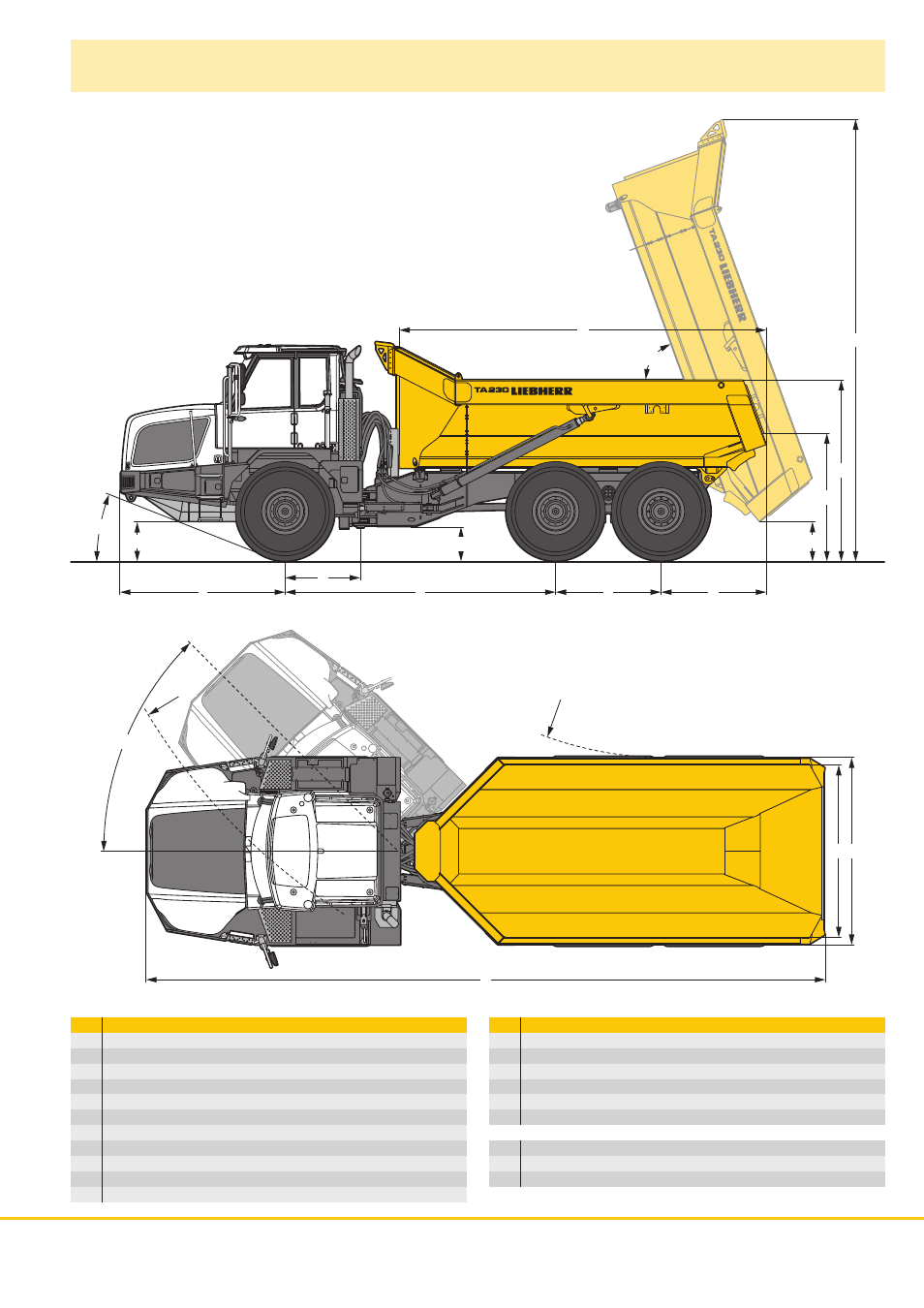

Dimensions
mm
A 10,372
C 4,350
D 1,210
E 1,700
F 2,650
G 1,672
H 570
J 1,980
K 2,836
L 6,775
M 5,888
mm
N 2,845
O 2,645
RS1 4,260
RS2 8,385
Y1 465
Y2 615
a1 22°
a2 45°
a3 70°
L
K
J
G E C
Y1 Y2
a1
a3
M
F
D
H
D0002
D0001
RS1 RS2
a2
A
O N
