14 TA 230 Litronic
Dimensions

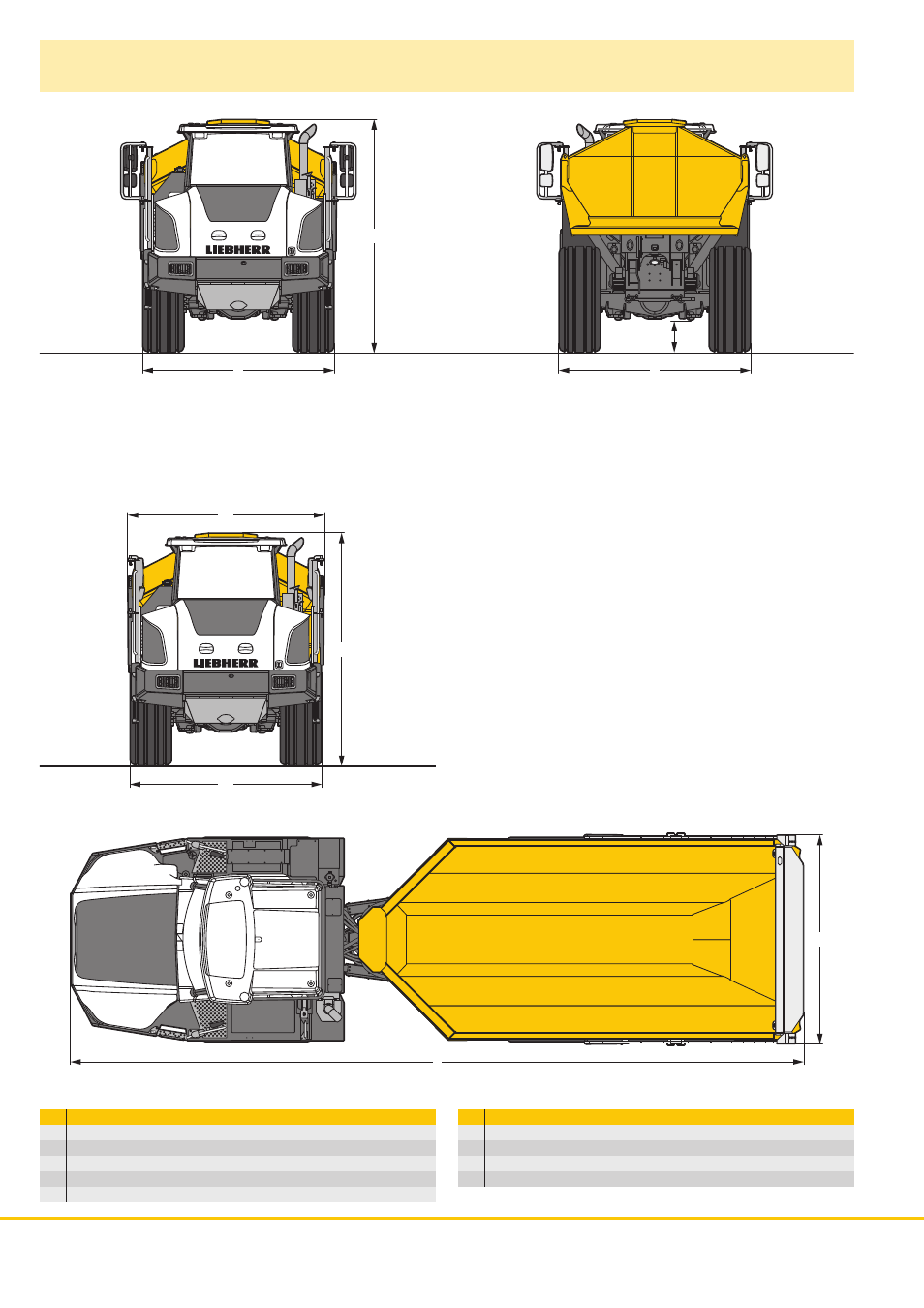

Transport Dimensions
Incl. option for dump body flap and including wide base tires
mm
B 2,885
Q 3,395
R 2,885
T 10,325
U 2,960
mm
V1 2,960
V2 2,980
W1 3,395
Y3 410
B R
Y3
Q
D0004
D0005
T
U
V2
V1
W1
