Unplug your table saw and remove the existing fence,
including the front and rear support rails, mounting
brackets, and the blade guard.
Note: The blade guard must be reinstalled after you have
finished mounting the
INCRA TS-LS to your table saw.
Attach mounting brackets
Attach (4) mounting brackets to the cast iron surface
of your table saw using the supplied hardware. See Fig. 1.
The Mounting Bracket Hardware Pack B-01 contains
a variety of fasteners which will work with most table
saws. Use the largest bolts in the pack that will fit your
saw’s existing mounting holes. If the holes in your table
saw are threaded, use the fastener arrangement shown
in Detail 1A. If the mounting holes are not threaded, use
the fastener arrangement shown in Detail 1B. Position
the mounting brackets
1 ⁄ 4 ” below the table top as shown
in Details 1A and 1B and snug the fasteners to hold the
brackets in place. DO NOT TIGHTEN THE BOLTS AT
THIS TIME. (Discard any remaining fasteners from the
Mounting Bracket Hardware Pack B-01.)
Loosely attach rail bolts
Open the Rail Hardware Pack B-02. Add a 3 ⁄ 8 ” flat
washer to each of (4) 3 ⁄ 8 –16 x 3 ⁄ 4 ” hex bolts. Place the
bolts through the holes in the mounting brackets and loosely
attach the
3 ⁄ 8 –16 rectangular nuts. See Fig. 2 above.
Slide rails onto mounting
brackets and tighten bolts
Carefully slide the rails onto the mounting brackets so that
the rectangular nuts are captured in the T-slot on the bottom
of the rail. Fig. 3 shows the correct orientation for the front
and back rails. Approximately center the length of the
rails on your table saw and tighten the mounting bolts that
secure the rails to the brackets.

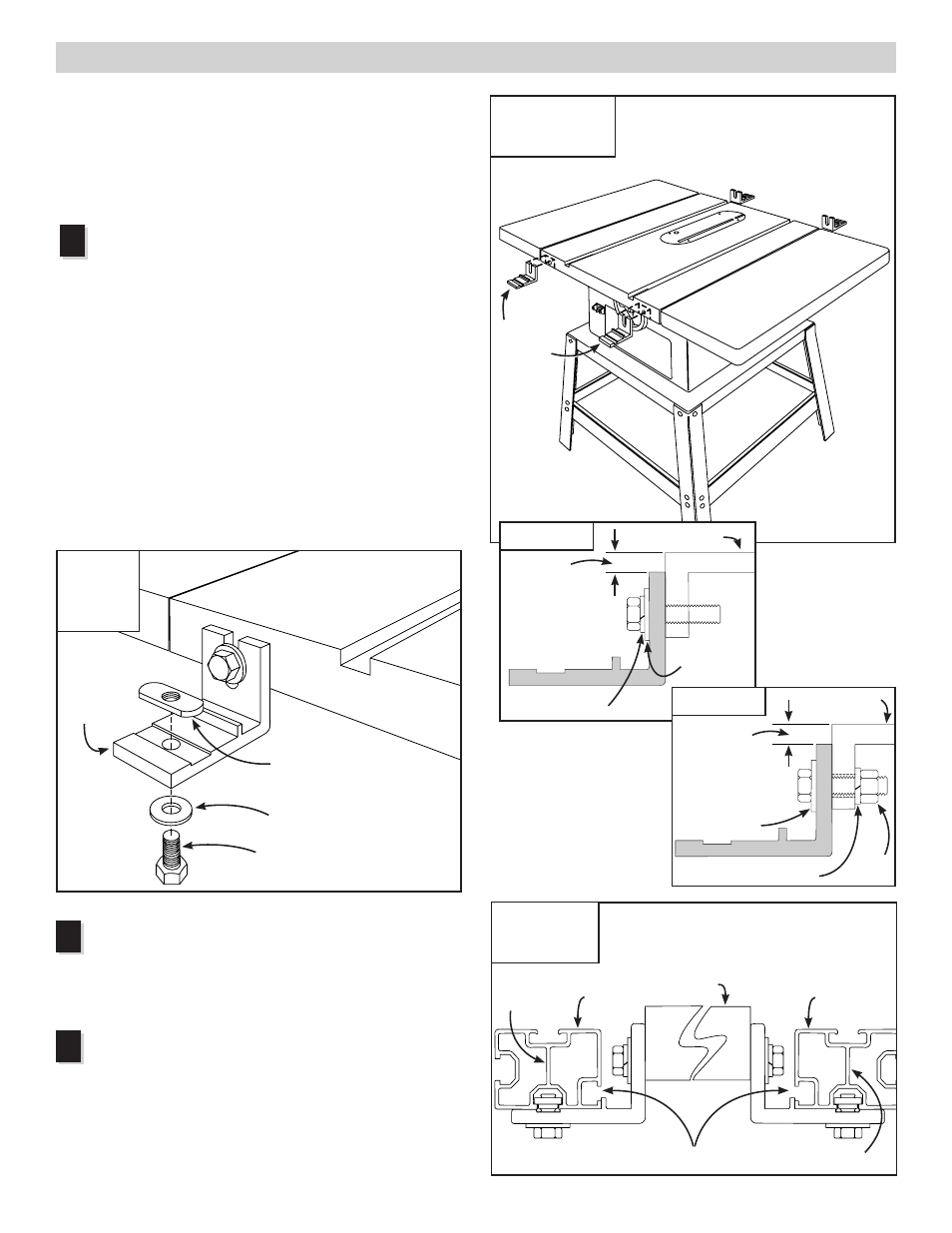

FIG. 1
Attach rail
mounting brackets
Use appropriate mounting
hardware from the Mounting
Bracket Hardware Pack B-01 to
attach brackets
(See Details 1A and 1B)
Rail
mounting
brackets
Threaded holes
in table saw
Lock washer
Through holes
in table saw
(Not threaded)
Flat
washer
Lock washer
Web
RAIL ASSEMBLY
DETAIL 1A
DETAIL 1B
FIG. 2
Loosely
attach rail
bolts
2
3
Orient rails so that web is vertical
and off center T-slot faces the saw
as shown below
Rear rail
Off center T-slot faces table saw Web
FIG. 3
Front and rear
rail orientation
1 ⁄ 4 ”
Table saw top
Table saw top
3 ⁄ 8 – 16 rectangular nut
Mounting
bracket
3 ⁄ 8 – 16 x 3 ⁄ 4 ” hex bolt
3 ⁄
8
” flat washer
1 ⁄ 4 ”
Table saw
Flat washer
Hex
nut
Front rail
1
