KSA-1020 Installation Instructions
8
Wall Mounting Using Steel Studs or Drywall
After determining the site meets the installation requirements:
1. Identify desired mounting location on wall.
2. Using a stud finder or similar method locate stud.
3. Align mounting holes in mount with stud making sure
mounting holes are centered on stud. (See Figure 9)
WARNING: IMPROPER INSTALLATION CAN LEAD TO
EQUIPMENT FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT!
4. Mark location of two mounting holes on wall using the wall
plate as a template. Mark holes where the top and bottom
holes of the bracket will be connected. (See Figure 9)
5. Drill two 1/2" holes. (See Figure 9)

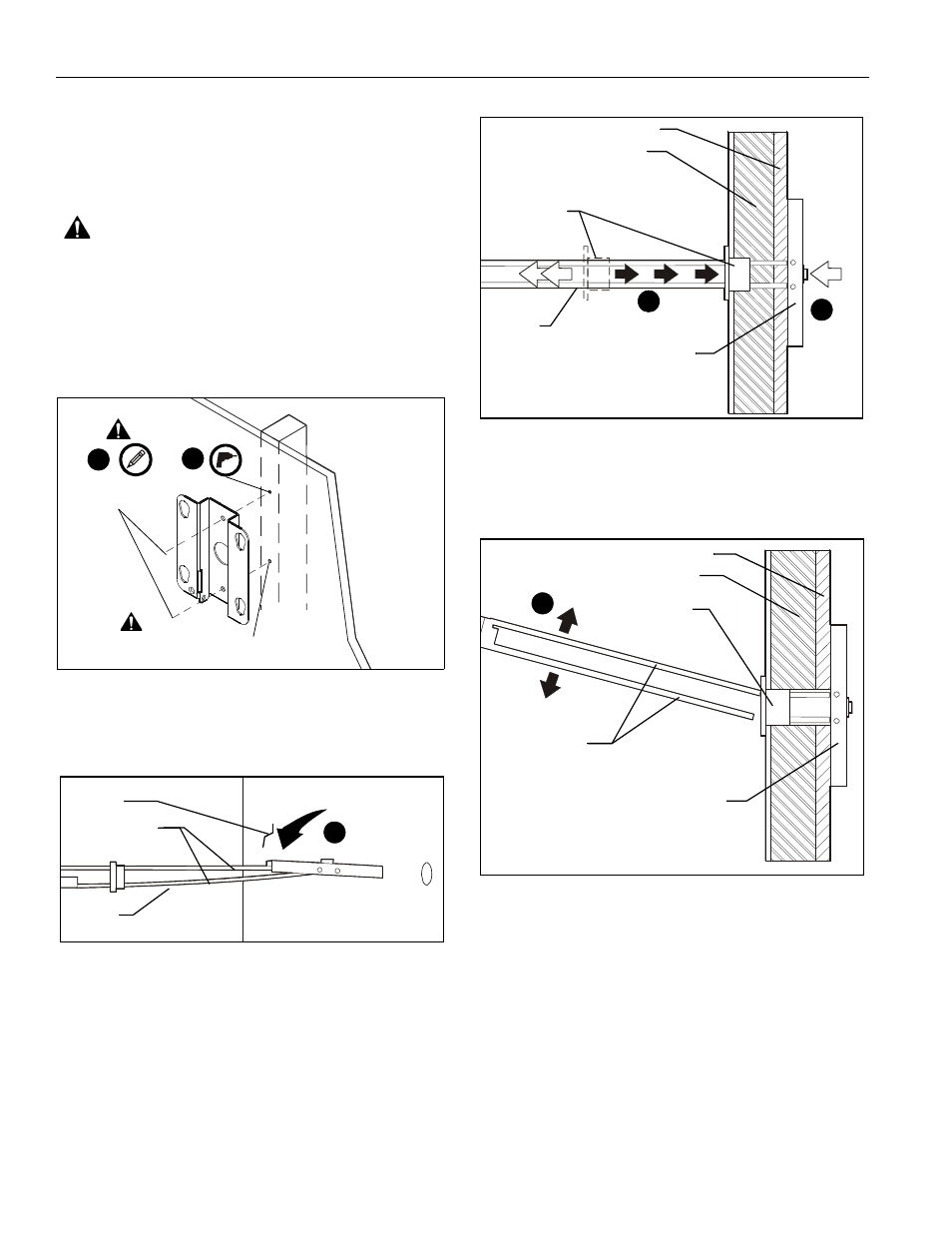

Figure 9
6. Hold metal channel on anchor (B) flat alongside plastic
straps and slide channel through hole. (See Figure 10)
Figure 10
7. Holding plastic straps on anchor (B), pull anchor away from
wall until channel rests flush behind wall making sure
anchor channel is positioned vertically on stud. (See Figure
11)
8. Slide plastic cap on anchor (B) towards wall until flange of
cap is flush with wall. (See Figure 11)
Figure 11
9. Snap off plastic straps on anchor at wall by pushing side to
side, snapping off straps level with flange of plastic cap.
(See Figure 12)
10. Repeat steps 6 through 9 for remaining mounting hole.
Figure 12
11. Place mounting bracket over anchors and align mounting
holes in display mount with holes in anchors. (See Figure
13)
12. Insert 1/4-20 x 1-3/4" Phillips pan head screw (E) into
mounting hole on mounting bracket and into anchor (B) and
tighten until flush against mounting bracket. DO NOT
overtighten! (See Figure 13)
13. Repeat steps 11 through 13 for remaining mounting hole.
5
1/2"x2 1/2"(
Mounting holes centered on stud
4
(B) x 2
Drywall
Plastic Straps
6
Plastic Cap
Steel Stud
Drywall
Anchor Metal Channel
(Side View)
8
(B) x 2
7
Plastic Straps
Steel Stud
Drywall
Anchor Metal Channel
Plastic Cap
(SIDE VIEW)
9
