DOOR PANEL INSTALLATION (CONTINUED)

5

5b.

2 PEOPLE REQUIRED

*Handle showed is model (Q)

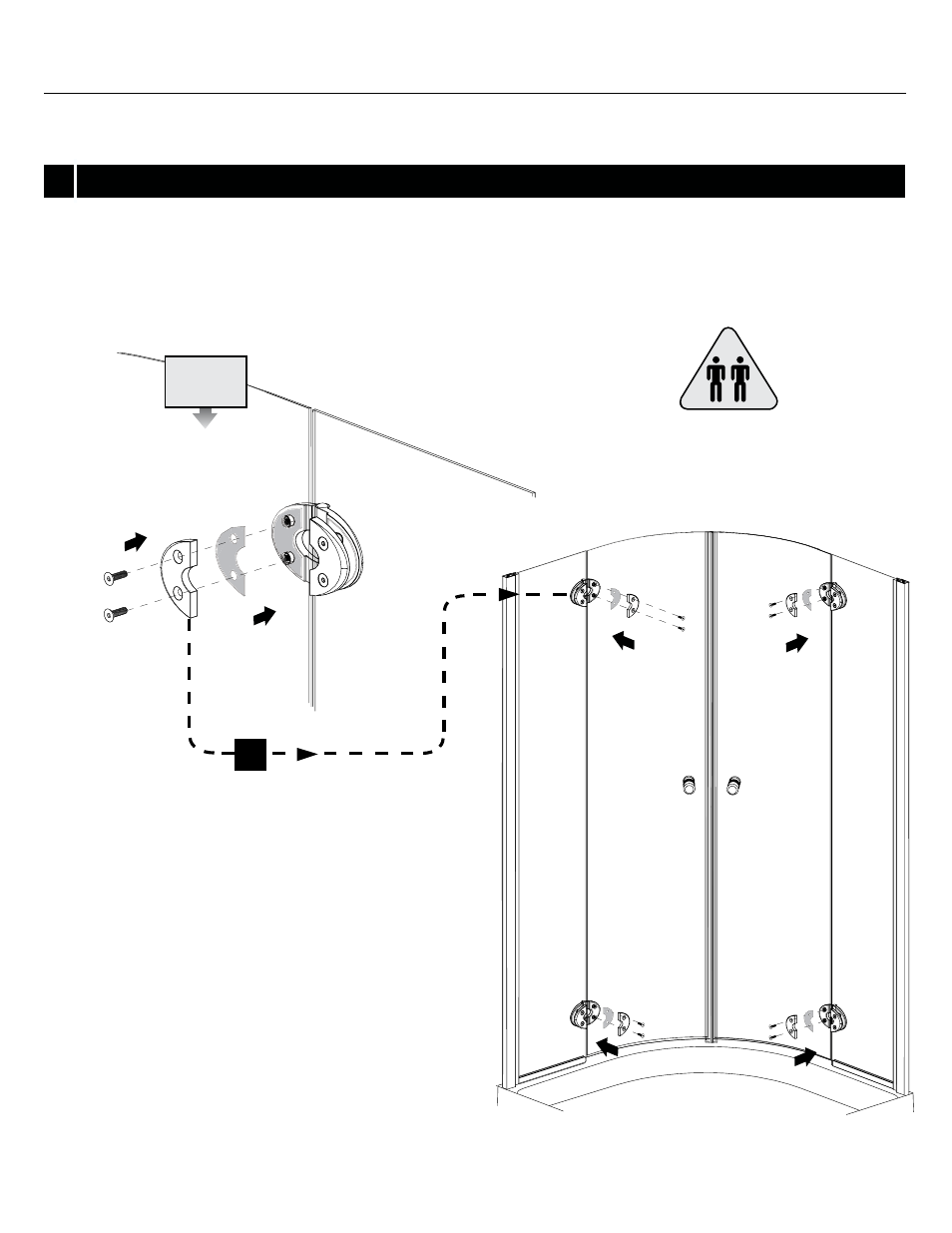

Fasten the remaining rear side component of the hinges to the doors as illustrated.

Use the provided hex. Key.

INTERIOR

SHOWER SIDE

5b
