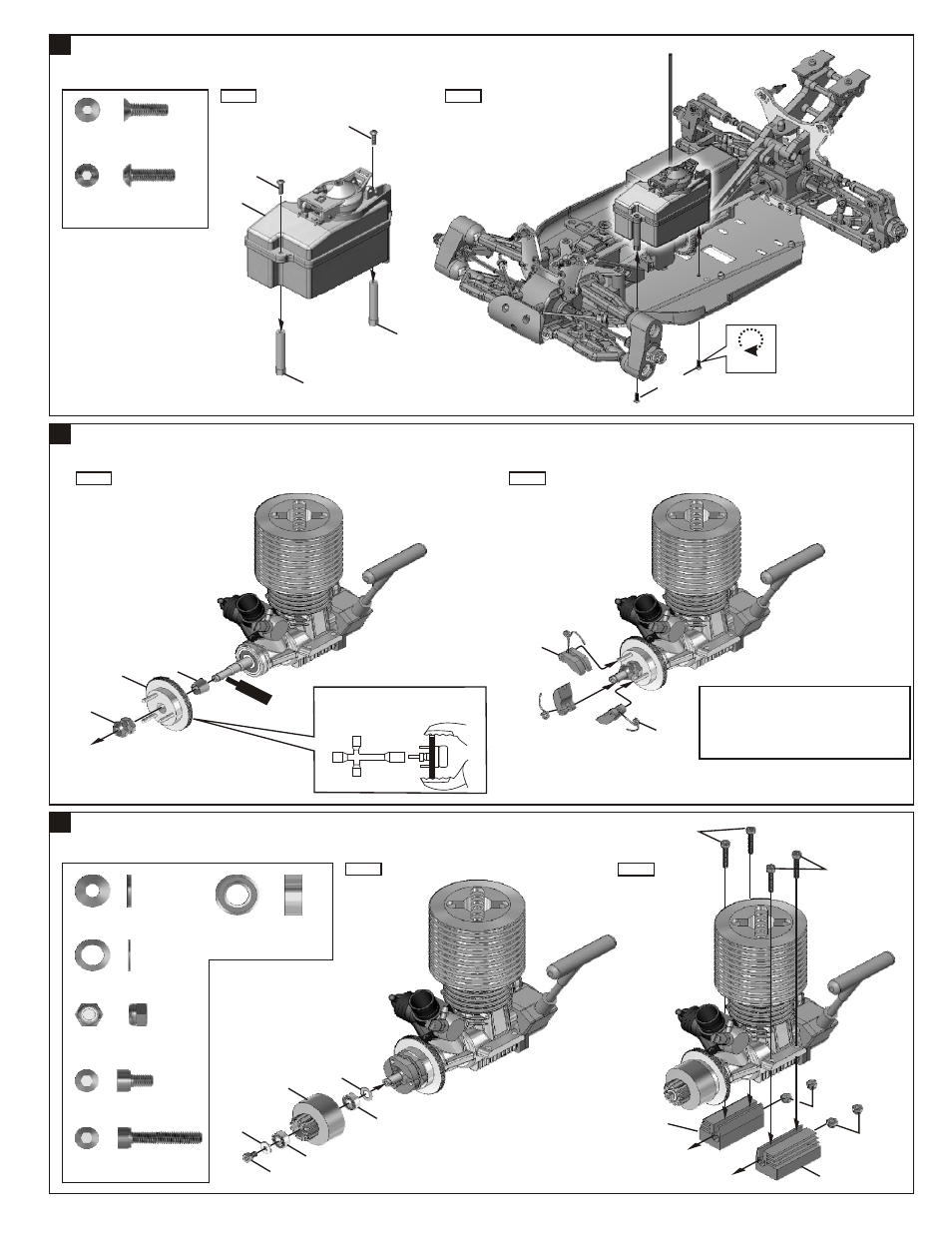

ASSEMBLY OF THE CLUTCH AND ENGINE MOUNT

Step 1

Step 2

10399

34110

3x5mm

5x9x0.3mm

3x8mm

3x16mm

3x16mm

.....x2

.....x1

.....x1

5x9x0.3mm Washer

34110
5x10x4mm Ball Bearing

3x8mm Washer

3x5mm Cap Screw

3x16mm Cap Screw

.....x1

.....x4

3mm
Nylon Nut

.....x4

34110

3mm

3mm

ASSEMBLY OF THE CLUTCH

Step 1

Step 2

10098

10040

10010

*Fit the flywheel using a pair of the
plIer and cross wrench.

*Place the clutch shoes with the clutch
springs over the 3 pins of the flywheel.
*Using a phillips screw driver or needle
nose pliers and bend the small end in
the clutch spring behind the pilot shaft
10101 than press down.

Scre

w

Cem

t

en

38313

10101

ASSEMBLY OF THE FUEL TANK ONTO CHASSIS

Do Not
Over Tighten

Step 1

Step 2

40066

3x10mm

3x10mm

3x10mm

3x10mm
Flat Head Hex Screw

.....x2

3x10mm
Hex Screw

.....x2

30480

30480

40047

40047
